Product Details:
|
| Brand Name: | Aorui | Auxiliary Machine: | Laminating Machine, Transferring Machine |
|---|---|---|---|
| Type: | WPC Board Production Line, Wood Plastic Extrusion Line | Automatic Grade: | Full Automatic |
| Plastic Processed: | PVC, Wood Plastic Composite | Voltage: | 380V/3P/50HZ, 600V/3P/60HZ, 220V/3P/60HZ |
| Raw Material: | Recycled PE/PP, Wood Powder, Additive Material, Etc | Condition: | New |
| High Light: | Wood Plastic Extruder,WPC Board Machine |
||

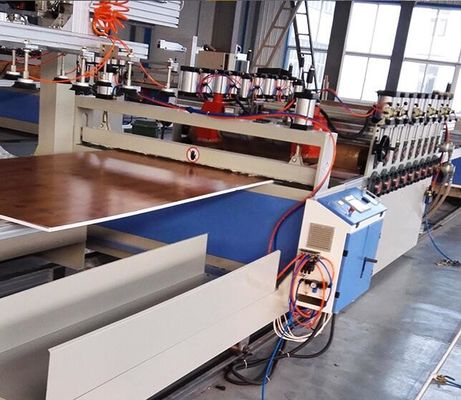

600-1250mm Width WPC Board Production Line With Laminating Machine
Quick detail:
1.Inverter is SIEMENS G120 (the best one in SIEMENS)
2.Main Motor/Cutter Motor/AC Contactor/Thermal Overload Relay are Germany SIEMENS
4.Breaker is SIEMENS from Germany
5.OMRON Japan
6.The mould is designed by our company with the latest technology in China
7.Calibration mould:Thickness is 100mm
8.Material formulation:we can input 100%recycled material.
Description of foam board machine:
1. PVC foamed board line’s outer surface layer is rigid PVC and inner layer foamed PVC, it feature in low machine and formula costcompared with PVC skinned foamed plate, meanwhile, the product and parameters( 1.22m width with 5-20mm thickness product dimension, ~0.5g/cm3 density, 50-75 Rockwell hardness) are all equal or better. Also, the surface of the product can be printed or laminated to get different patterns.
2. The machine consists main extruder & co-extruder, distributor, calibrator moulding block, cooling rack, haul off, cutter & stacker.
Processing performance: available to be easy processed and further processing with the common wood instrument, such as saw, nail, drill, shave; available to directly adhere to other PVC material; available to further heat processing and surface processing.
3. PVC Foam Board Features:
1). Waterproofing.
2). Fire retardant and self-extinguishing.
3). Heat preservation.
4). Sound-insulated.
5). Insulation.
6). Non-corrosion.
7). Non-toxic.
8). Tough, rigid with the high impact strength.
9). Stable color retention.
10). Dampproof.
11). Anti - deformed
Applications:
1. Building outdoor wall board, indoor decoration board, partition board in office and house.
2. Screen printing, flat solvent printing, engraving, billboard and exhibition display.
3. Chemical anti corrosion project, special cold project, environmental protection.
4. Sanitarywares, kitchen cabinet, washroom cabinet.
Specifications:
| Extruder | Thickness | Capacity |
| 80/156 | 3-25mm | 300-400kgsh |
| 80/173 | 3-30mm | 500-600kgsh |
| 92/188 | 3-40mm | 700-800kgsh |
pvc wpc foam board machine's advantages:
1.Electrical parts all adopt famous brand
2.The mold designed with the latest technology in China
3. Can use 100% recycled material
