Product Details:
|
| Brand Name: | Aorui | Condition: | New |
|---|---|---|---|
| Plastic Processed: | PP | Output: | 200-250kg/h |
| Automatic Grade: | Fully Automatic | Certificate: | CE ISO9001 |
| After-sales Service: | Engineers Availiable To Service | Warranty Time: | 1 Year |
| High Light: | WPC Board Machine,Wood Plastic Composite Extruder |
||

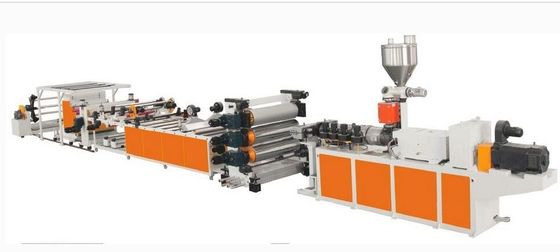

Single Screw PP PE PC Hollow Grid Sheet Extrusion Line , Hollow Grid Plate Making Machine
Brief introduction of pp hollow sheet production line:
Plastic Sheet Extrusion Line / HDPE PP PS PC PMMA Sheet Making Machine
Sheet Features
Width: 320-3000mm
Thickness: 0.2--2mm
Capacity: 150-450kg/hr
Mono-layer and multi-layer sheet extrusion system for up to 5 layers
Processing capabilities: PE, PP, PS and other thermoplastic materials
Sheet Application
Packing industrial, Stationery, Decoration,etc
Description:
1. Single/Two/Three layers is producible
2. Extruder screw adopts special design with efficient mixing function and high plasticizing capacity.The mater of barrel and screw is 38CrMoA1A, the hardness of nitride is 740HV.
3. Coat-hanger die uses double throttling design to make sheet thickness accurate.
4. Temperature can be precisely controlled within ±1 °C
5. Three-roll calender: horizontal, vertical or tilted arrangement, motorized gap adjustment for calender roll for quick product changes
6. Precisely manufactured rollers, hardened and mirror finished surface for suiperier surface properties and excellent thickness control.Independent roller temperature control system is able to make sheet thickness uniformity.
7. Winder is equipped with high quality torque motor,it can adjust rewinding speed and tension.
8. This sheet production line has automatic meter counter to set the length of sheet.
9. Plastic sheets produced from this type of extrusion equipment are sturdy,yet remains somewhat flexible.
pp hollow sheet machine technical parameters:
| Main Paraments(Data sheet) | |
| Output: | 5m/min |
| Occupied Area: | 15M(L)*2M(H)*1(W) |
| Weight: | 1TON |
| Electrical Load: | 20KW |
| Voltage: | 380V/50HZ, 415V/50HZ OR CUSTOMIZED |
| Price: | $10,000-$15,500 |
| Material: | PC PMMA ARYLIC |
| Delivery: | 30 day |
| Volume: | about 1/3 20' container |
Applications:

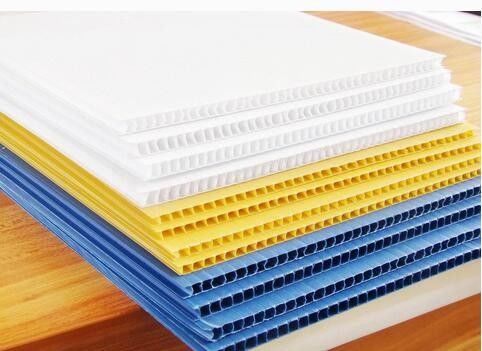

The PP hollow grid board can be processed into turnover case, packaging case, clapboard, lining board, backing board and pallet, etc, due to its advantages of light weight, high tenacity, damp proof, environmental performance and secondary processing.
It is widely used in such fields as the electron, household electrical appliances, packaging, machinery, postal, food, medicine, pesticide and advertisement decoration, etc.
Competitive Advantage:
This production line is used for PP PC hollow grid board, this board is widely used in construction, decoration, packing, advertise.Hollow grid pp sheet making machine can be used to produce PC, PP, PE hollowness grid boards.
The board is popularly used to buildings, decoration, advertisement ornament, sound insulation on road and packaging.
The PP hollowness board can replace the paper packaging canton with the advantages of light weight, high strength, damp-proofing and corrosion-resistance.
