PERT Floor Heating Plastic Pipe Extrusion Line , PPR Cold and Hot Pipe Machinery

PERT Floor Heating Plastic Pipe Extrusion Line , PPR Cold and Hot Pipe Machinery
PERT Floor Heating Plastic Pipe Extrusion Line , PPR Cold and Hot Pipe Machinery

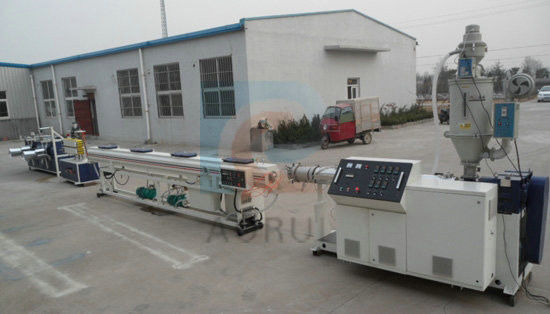

Large Image :  PERT Floor Heating Plastic Pipe Extrusion Line , PPR Cold and Hot Pipe Machinery

Product Details:
Place of Origin: China mainland
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJ65/33
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C Western Union
Supply Ability: 10 Sets per month

PERT Floor Heating Plastic Pipe Extrusion Line , PPR Cold and Hot Pipe Machinery

Description
Plastic Processed: PERT Power: 75KW
Voltage: 380V50HZ Speed Line: 10-25m/min
Type: Plastic Production Line, Plastic Extrusion Line Screw Design: Single Screw
Automatic Grade: Full Automatic Application: Pipe
High Light:

plastic pipe extruder machine

,

plastic pipe extrusion machine



PERT Floor Heating Plastic Pipe Extrusion Line , PPR Cold and Hot Pipe Machinery





Quick detail:



  Weight:8t

  Power: 380V50HZ

  Production line speed: 10-25m/min

  Install power: 75KW

  Power actual consumed :60KW

  Screw type: single screw

  After-sales Service Provided: Engineers available to service machinery overseas

  .mould: change molds to produce different pipe products.

  Minimum order: one set

  certification: CE,CSA,UL,ISO9001

port: Qingdao port

voltage: 380V/3P/50HZ,600V/3P/60HZ,220V/3P/60HZ,or according to customer’s requirement.

  Process type: extruding machine

  Product:  floor heating pipe





Description:



PERT pipe production line



1)      Special single screw extruder for polyolefin, having high extruding velocity and effective plasticization

2)      Separation mixing screw specialized for polyolefin

3)      Specially designed three co-extruding die, reasonable channel, smooth outside and inside wall, and

little  internal stress

4)      Producing pipe limit Φ20-Φ160mm, manufacture velocity up to 16m/min

5)      May be used to produce HDPE silicon core tube, ordinary PP-R,PE and PEX pipes

6)      Low cost: the cost of nanometer & anti-virus pipe is merely increase 5-10% on the ordinary pipe basis





Specifications:



Model

SJ65/30-33

Pipe dia.

Φ20-63

Screws dia.& ribbon width

Φ65,33:1;Φ65,30:1

Output

120kg/h

Linear velocity(max)

10m/min

Installation capability

58

Productivity for year(meter)

350





Applications:



  It can in addition to the radiant floor heating, including residential, shopping mall, hotel, hospital, stadium

and so on with floor heating pipe; Can also be applied in the hot water supply on the one hand, including

bath tube, hot spring water, indoor swimming conveyer system, and can also be applied in the field of

industrial water, including heat exchanger, heating coil, chemical industry, medicine, fluid conveying pipe,

and so on

PERT Floor Heating Plastic Pipe Extrusion Line , PPR Cold and Hot Pipe Machinery 0PERT Floor Heating Plastic Pipe Extrusion Line , PPR Cold and Hot Pipe Machinery 1





Competitive Advantage:



PERT  pipe production line


1.high extruding velocity

2.effective plasticization


3.three co-extruding die


4.low cost
