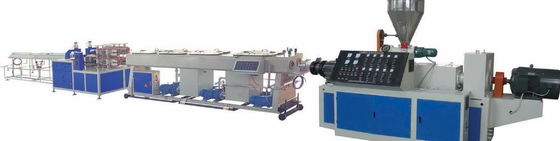

PVC Conduit Plastic Pipe Extrusion Line , UPVC / CPVC Water Pipe Plastic Extruder

Brand Name:	AORUI
Model Number:	SJSZ65
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

CE UL CSA

Plastic Processed:

PVC

Power:

60-120KW

Voltage:

220v

Capacity:

120-180KG

Type:

Plastic Production Line, Plastic Extrusion Line

Screw Design:

Double Screw

Automatic Grade:

Full Automatic

Application:

Pipe

Packaging Details:

Fumigationwood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 sets per month

Highlight:

plastic pipe extrusion machine

plastic pipe production line

Product Description

PVC Conduit Plastic Pipe Extrusion Line , UPVC / CPVC Water Pipe Plastic Extruder

Quick detail:

Pipe Material : PVC

Pipe diameter range :16-63mm

Output : 120-180KG

Production speed ； 1-12m/min

Control: PLC

Motor: Siemens

Certification:CE UL CSA

Voltage : 220v

Power : 60-120KW

Weight : 8.5ton

Screw design : double screw

After-sales Service Provided: Engineers available to service machinery overseas

mould: change molds to produce different pipe products.

Description:

The working process of PVC conduit pipe making machine:

Raw material+additive → mixing → feeding → conical double screw extruder → "one mould four pipes"mould →

vacuum calibration tank → haul-off → cutting machine → stacker

1. Easy operation: The four pipes work independently without effect on each other.

2. Independent vacuum and low power consumption: There is only one vacuum tank of 2.2KW for four pvc pipes.

3. Chipless cutting: high cutting speed and no chip.

4. Mobile printing system: controlled by computer with accurate orientation and only need one printer.

5. The PVC conduit pipe making machine can save place and time.

6. If using SJSZ80/156 extruder, Max. pipe diameter can reach 63mm.

Specifications:

Main Technical Parameters
MODEL	PVCG-110	PVCG-160	PVCG-250	PVCG-315	PVCG-400	PVCG-630
MATCHED EXTRUDER	SJZ51/105	SJZ65/132	SJZ65/132	SJZ80/156	SJZ80/156	SJG92/188
OD RANGE(mm)	50-110	50-160	75- 250	110-315	200-400	315-630
LENGTH OF VACUUM CALIBRATOR TANK(mm)	6000	6000	6000	6000	6000	6000
HAUL SPEED(m/min)	0.6-6	0.5-5	0.4-4	0.3-3	0.2-2.5	0.2-1.5
INSTALLED POWER(kw)	67	85	95	125	135	255
TOTAL LENGTH9(mm)	17000	18000	20000	20500	28000	30000
