PP Plastic Sheet Extrusion Line for Food Stuff Package , PE Sheet for Building Machine

Brand Name:	AORUI
MOQ:	One set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL CSA

Plastic Processed:

PP/PE

Power:

37-75KW

Voltage:

380v/50hz

Thickness:

0.2-1.2mm

Type:

Plastic Production Line, Plastic Extrusion Line

Screw Design:

Single Screw

Automatic Grade:

Full Automatic

Application:

Sheet

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

plastic sheet extrusion machine

plastic sheet production line

Product Description

Plastic Sheet Extrusion Line , Single Screw Extrusion Machine

QUICK DETAIL :

Material : PP/PE
Weight: 8 T
Voltage: 380v/50hz
Width: 600-1200mm
Thickness: 0.2-1.2mm
Screw dimamter: 65-90mm
Screw design : single screw
Certification : ce ul csa
Condition : new
Main motor power: 37-75KW
After-sales Service Provided : Engineers available to service machinery overseas

Description:

1.The specially designed screws ensure high plastification rate.
2.Precise temperature control(-1`C or +1`C) and special modules ensure precise thickness and flatness
control.

3.The thickness of sheet is precisely adjusted by adjusting the screws and oil pressure wheels.

4.The winder can automatically adjust the speed and tension and set the width of needed products freely.

5.The machine equipped with meter counter can set the length of product.

Applications:

Electronics, food stuff package, building materials, decoration and daily necessities.

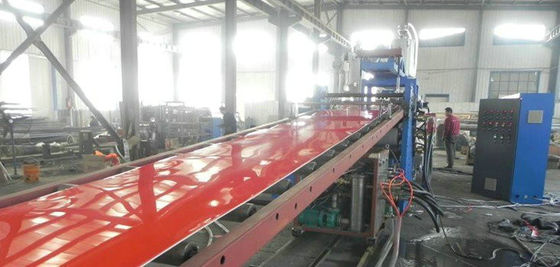

PP Plastic Sheet Extrusion Line for Food Stuff Package , PE Sheet for Building Machine 0

Specifications:

Model	Unit	TYJB-75	TYJB-90	TYJB-110
Material applied	PP,PS,PE
Width of sheet	mm	≤600	≤750	≤1100
Thickness of sheet	mm	0.2-1.6	0.2-2.0	0.2-2.0
Extrusion capacity	kg/h	60-100	100-150	150-200
Diameter of screw	mm	75	90	105
Installed capacity	kw	75	90	120

Competitive Advantage:

1.high output
2.energy saving
3.good plasticity
4.long working time
