PVC WPC Decorative Foam Board Production Line , CELUKA Foam Board Plastic Extruder

Brand Name:	AORUI
Model Number:	SJSZ80/156,SJSZ92/188
MOQ:	One set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL CSA

Model Number:

SJSZ80/156

Condition:

New

Trademark:

Aorui

Application:

Foam Board

Place Of Original:

Qingdao Port

Warranty Time:

1 Year

Foam Board Size:

1220x2440mm

Max Output:

350-400kg/h

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

Wood Plastic Extruder

Wood Plastic Composite Extruder

Product Description

PVC WPC Decorative Foam Board Production Line , CELUKA Foam Board Plastic Extruder

Basic information of pvc skinning foam board machine:

1.PVC free foaming board application:
PVC free foamed board is widely used in bus and train roofing, core layer of box, advertisment board, decoration board, furniture board,construction decoration material, advertisement board, upholstery for train, exhibition board, etc.

2.Free foaming board extrusion line:
PVC free foam board extrusion line is composed of special twin-screw extruder, T die and downstream equipment.

Description:

1. Production process: PVC foam board can be divided into PVC crust foam board and PVC free foam board according to the production process.
2. Detailed introduction: The foaming sheet production line manufactured by Aorui Plastic Machinery Co., Ltd. has good processing performance, high foaming rate, fast forming speed and high surface finish, and is highly praised by users at home and abroad. Mainly consists of cone Double extruder, foaming mold, shaping platform, multi-roller traction type and traction machine, vertical and horizontal cutting machine and bracket table.

3. Common product specifications:
Product thickness 1-25mm Width: 1000-1600mm. Product density 0.4-0.8

part a: PVC/WPC crust/celuka/skinning foam board/sheet production line
NO.	Machine name	Type	Qty.	Note
1	Conical twin screw extruder	SJSZ80/156	1set	with spring up loader
2	Electric control system		1set	Siemens electrical parts
3	T-mould		1set	JC Times(China NO.1 brand)
4	Calibration unit		1set	4pairs with size:1500600100mm
5	Cooling bracket device		1set	5000mm(length)*1500mm(width)
6	Haul-off device		1set	8paris
7	Shearing unit in length and width		1set	Siemens motor
8	Dust vacuuming unit		1set	China top brand
9	Stacker		1set	2500mm*1750mm
Part b: Auxiliary machines
NO.	Machine name	Qty.	Note
10	Mixer	1set	500/1000L or 800/2500L
11	Crusher	1set	Capacity:350kgs/h
12	Grinder	1set	Capacity:300-400kgs/h
13	Chiller	1set	20P

Applications:

Mainly use for producing pvc foam board

Main feature of Plastic PVC WPC Crust/Celuka/Skinning Foam Board/Sheet/Flooring Board Extruder Machine:

1.Frequency converter:SIEMENS;
2.Main motor/AC contactor/thermal overload relay/circuit breaker(including the large circuit breaker of

the whole line)/comment switch:SIEMENS
3.PLC:SIEMENS
4.Temperature controller:OMRON Japan
5.Relay/travel switch:Schneider France
6.Twin-Screw: famous brand from Zhoushan,China
7.Mould:independent research and design with China NO.1 mould brand:JC Times.
8.Reducer for calender motor:China top brand:Guomao

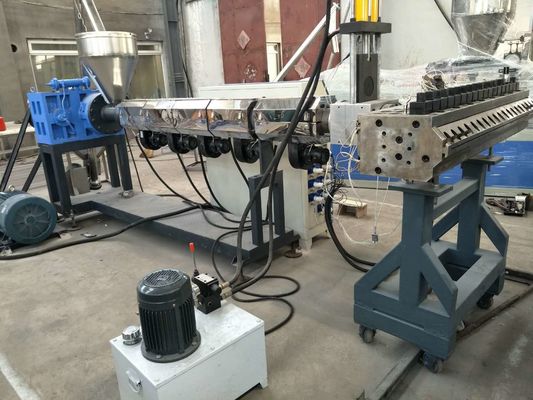

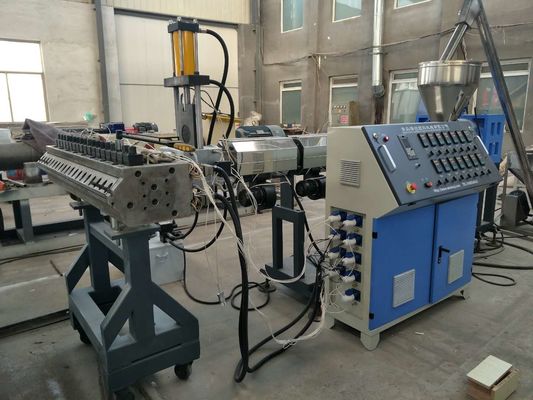

PVC WPC Decorative Foam Board Production Line , CELUKA Foam Board Plastic Extruder 0
