PET Strapping Band Machine for Two Straps , PET Strap Band Double Screw Extruder

PET Strapping Band Machine , PLC Control Single Screw Extruder

Quick detail:

   plastic material : PET

   screw design : single screw

   power : 37KW

   voltage: 380V/220V

   weight: 5T

   payment term : T/T

   certification: CE UL CSA

  Output:50-100kg/h

  Straps :1-6 straps

  After-sales Service Provided: Engineers available to service machinery overseas

  mould: change molds to produce different pipe products.

  Minimum order: one set

  certification: CE,CSA,UL,ISO9001

  port: Qingdao port

  voltage: 380V/3P/50HZ,600V/3P/60HZ,220V/3P/60HZ,or according to customer’s requirement.

  Process type: extruding machine

Description:

PET Strapping band Production Line
1--The raw material will be dried by the dehumidifier, and the below 40 dew point make the material

humidity less than 40PPM and condensation polymerization;

2--The conveyor of the raw is in a enclosed and circular mode, and without contacting with the air, in order

to made perfect effect of drying;

3--Special designed extruder screw for PET production, bear the better performance of material separating

and mixing. Automatic material feeding provide the smooth environment for the PET strap production.

4--Special designed extrusion die & mould; And the improved screen changer realize non-stop screen

changing, and without material leakage;

5--Water tank cooling the PET strap band. The steady water temperature enhance of the molecular tension

strength;

6--Heating cabinet is used for thermal annealing, relief the band distortion after long-time storage;

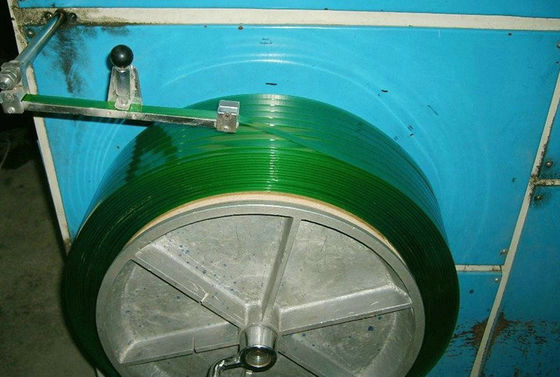

7--Dual-station automatic winder, easy operation; We provide our worldwide customer the turn-key project.

We will assist our customer from the installation to the final production of this line. PET strap machine, PET

strap machinery, PET strap plant, PET strap production line, PET strap line, PET strap band making

machine, PET strap making machine, plastic machinery, PET strap production line, PET strap extrusion

line, extruder, plastic extruder, plastic extruders, plastic machine

Technological parameter:

Application :

It’s mainly used for strapping items

Competitive Advantage:

1.100%recycle material

2.strong vacuum system to dispense with dehumidify and dry

3.the recycle material consumption is low

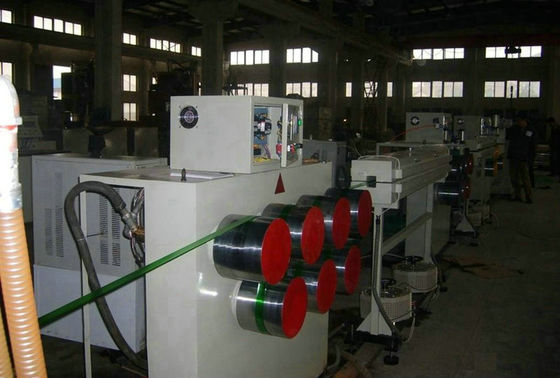

Machine Display:
