PVC Fiber Reinforced Plastic Pipe Extrusion Line With High Speed Extruder

Brand Name:	AORUI
Model Number:	SJ65/28
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

ShanDong China

Certification:

CE UL CSA

Capacity:

120-150kg/h

Plastic Processed:

PVC

Voltage:

220v/380V

Power:

75KW

Application:

Pipe

Automatic Grade:

Full Automatic

Screw Design:

Single Screw

Type:

Plastic Production Line, Plastic Extrusion Line

Packaging Details:

umigationwood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 sets per month

Highlight:

plastic pipe extruder machine

plastic pipe extrusion machine

Product Description

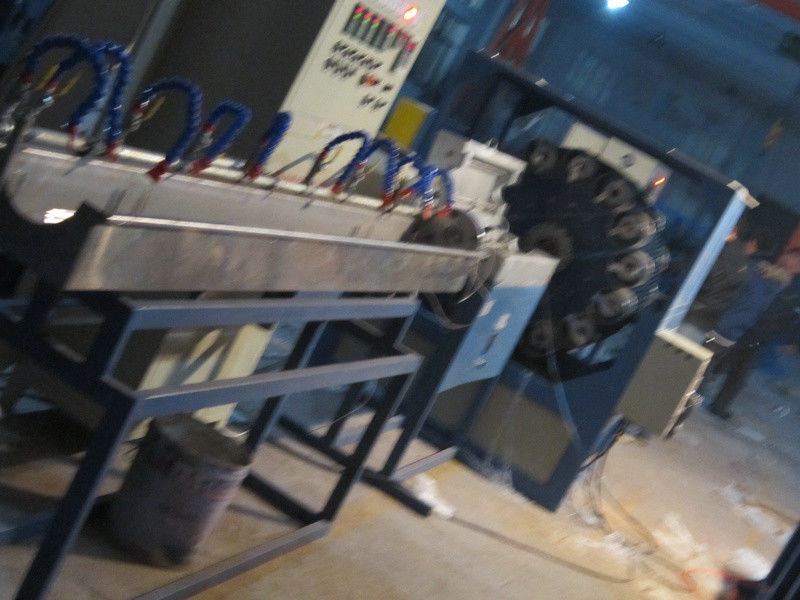

PVC Fiber Reinforced Plastic Pipe Extrusion Line With High Speed Extruder

Quick detail:

Light in weight
Flexible reinforced with polyester yarn
For water conveyance and irrigation

Description:

Process flow:
Virgin material+additive--mixing--granulating--conveying feeding--single screw extruder--extruding mould--spray cooling water tank--belt haul-off--fibre braider--warm-up oven--single screw extruder--coating mould--spray cooling water tank--belt haul-off--meter measurer--winder--finished product insepcting&packing

Brief description:
The PVC Fiber Enhancing Soft Pipe, also called garden pipe and snakeskin pipe which is mainly used to convey the middle pressure or corrosive gas and liquid, it is widely used in such areas as mechanical engineering, coal mine, petroleum, chemical industry, agriculture irrigation, civil application (solar energy water heater, gas-jar), also it can be used in irrigating garden and lawn.

Applications:

This production line is designed by our company to produce PVC fiber reinforced hose, the wall of

which is three layers, outer and inner layers are soft PVC hose , middle layer is terylene fiber network,

which has good chemical and physical property.

PVC fibre strengthen hose also call PVC network It is mainly used for the transportation of high pressure or corrosive gas, and is widely used in the

machinery;coal mine,oil, chemical,agriculture irrigation, gas and building.

Specifications:

Extruder	SJ65/28	SJ45/30
Diameter Range(mm)	Φ12-Φ50	Φ6-Φ14
Output	40-75	20-40
Installed Power(KW)	50	35
Main Extruder	SJ65/28	SJ45/28
Diameter Range(mm)	Φ16-Φ50	Φ6-Φ14
Output	40-75	20-40
Producing speed	4-8m per min
Installed Power(KW)	50	35

Main Extruder	SJ65/28	SJ45/28
Diameter Range(mm)	Φ16-Φ50	Φ6-Φ14
Output	40-75	20-40
Producing speed	4-8m per min
Installed Power(KW)	50	35

Competitive Advantage:

1. good after-service

2. spare parts are free

3.gurantee:one year or according to customer’s requirement.

4.advanced technology and better quality
