150kg/H PVC Door Profile Extrusion Machine 22kw WPC Profile Making Machine

150kg/H PVC Door Profile Extrusion Machine 22kw WPC Profile Making Machine
150kg/H PVC Door Profile Extrusion Machine 22kw WPC Profile Making Machine 150kg/H PVC Door Profile Extrusion Machine 22kw WPC Profile Making Machine

Large Image :  150kg/H PVC Door Profile Extrusion Machine 22kw WPC Profile Making Machine

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE Certificate
Model Number: SJSJ65x132
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per quarter

150kg/H PVC Door Profile Extrusion Machine 22kw WPC Profile Making Machine

Description
Model Number: SJSZ65X132 Condition: New
Screw Design: Double Screw Automatic Grade: Fully Automatic
Warranty Time: 1 Year Screw Material: 38Cr Moaia
Place Of Original: China Certificate: CE Certificate
Plastic Processed: PVC Port Of Lading: Qingdao Port
High Light:

150kg/H PVC Door Profile Extrusion Machine

,

22kw WPC Profile Making Machine

,

Anticaustic Plastic Profile Extrusion Line

Conical Twin Screw Extruder PVC Profile Extrusion Line , WPC PVC Plastic Profile Production Line



Quick details:

1.YF Series PVC profile production line is mainly used in PVC or WPC door & window profiled material, wide door plate, window plate, extrusion of multi-holes pipe for passing through lines (four holes, six holes, seven holes, nine holes, etc.)

2.For different sectional surface and molds, twin parallel (conical) screws extruder of different specifications can be chosen together with corresponding vacuum calibrating table, haul-off unit, cutting unit, tilter, etc.



Description of pvc profile extrusion line:



1)Extruder screw and barrel from Zhoushan,with vacuum degassing system, can get rid of the waste gas from the raw material which can ensure good quality of final granules.



2) Gearbox: From Jiangyin gearbox company,very famous brand in China,with nice outline, stable running, low noise and long service time.
3) Heating system: adopting cast aluminum heaters with stainless steel plate covers, wind fan cooling system, ensuring good features of cooling and heating, precision temperature controlling.
4) Driving system: adopting Siemens motor, using ABB inverter which provide stable torque output and various speed.
5) Vacuum calibrating and cooling Table: the tabley is made by #304 stainless steel, good strength and performance,long life time.
6) Traction machines:Rubber block traction belt,traction speed is adjustable by ABB frequency inverter.
7) Cutting machine: saw blade cutting,low noise,quick cutting performance,with dust collection device.


Technical data:

Model YF180 YF240 YF300 YF400 YF500 YF600
max.width of production(mm) 180 240 300 400 500 600
extruder model SJSZ55/110 SJSZ65/132 SJSZ65/132 SJSZ65/132 SJSZ80/156 SJSZ80/156
capacity(kg/h) 150 250 250 250 360 360
extruder power(kw) 22 30/37 30/37 30/37 55 55
cooling water(M3/h) 5 7 7 8 10 12
compressed air(M3/h) 0.2 0.3 0.3 0.3 0.4 0.4



Our advantages:

1. This profiles have advantages of fireproof, waterproof, anticaustic, moisture proof, moth proof, mildew proof, non-toxic and environmentally friendly.

2. The profiles are widely used in the fields of interior decoration, furniture making, such as door frame, skirting, photo frame, plastic door and window profiles.

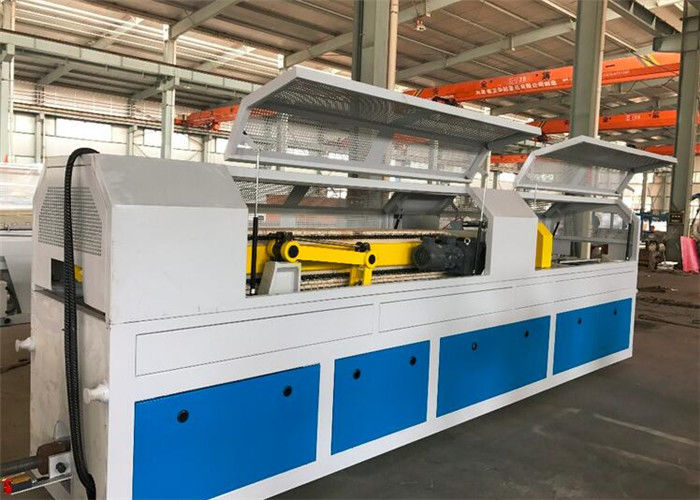

Machine dispaly:
150kg/H PVC Door Profile Extrusion Machine 22kw WPC Profile Making Machine 0150kg/H PVC Door Profile Extrusion Machine 22kw WPC Profile Making Machine 1
