WPC Window PVC Profile Extrusion Machine 250kg/H PLC Control

PVC WPC Window Profile Production Line , PVC Profile Extrusion Machine , PVC Plastic Profile Extrusion Machine

Quick details:

1. Working flow of Wood plastic (PE PP PVC) profile machine/ WPC making machine/ wood plastic composite machine

Feeder→ Conical Twin-screw Extruder → Mould →Calibration Table → Haul-off → Cutter → Stacker

(Note: Other Auxiliary Machine, such as crusher, mixer, etc. will be provided according to client's requirements)

2. YF Series PVC profile production line is mainly used in PVC or WPC door & window profiled material, wide door plate, window plate, extrusion of multi-holes pipe for passing through lines (four holes, six holes, seven holes, nine holes, etc.) For different sectional surface and molds, twin parallel (conical) screws extruder of different specifications can be chosen together with corresponding vacuum calibrating table, haul-off unit, cutting unit, tilter, etc.

Description of pvc profile extrusion line:

1. Capacity of main frame can be optionally chosen from 60-700 kgs/hour.
2. With different molds, it can products different kinds of profiles.
3. The haul-off unit has applied unique lift technique. Its work is stable, its reliability is good, its pulling force is large.
4. Vacuum setting has applied special enlarged vortex cooling system which is good for cooling and calibrating so as to meet demand of high speed extruding.
5. Movement speed and drawing speed of cutting machine keep synchronous.
6. All movements are controlled by imported PLC, the design is reasonable, the operation is stable, it can conduct automatic cutting with fixed length.
7. Powder & dust suction device can be provided.
8. The stacker platform can choose such specifications as 4-meter, 6-meter, 8-meter, 11-meter, etc.
9. With twin parallel screws extruder, it is particularly suitable for high speed extruding of profiled material.

Technical data:

Our advantages:

1.Easy to operate

2.Long service life

3.Easy to maintence

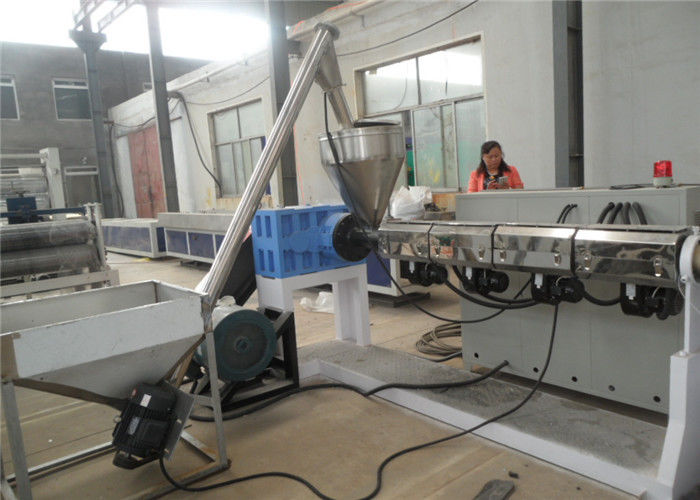

Machine dispaly:
