|Brand Name:||Aorui||Screw Design:||Double Screw|
|Voltage:||380V 50HZ||Place Of Original:||China|
|Warranty Time:||1 Year||Condition:||New|
|Inverter Brand:||ABB||Motor Brand:||Siemens|
|After-sales Service:||Engineer Availiable To Service||Motor Power:||37kw|

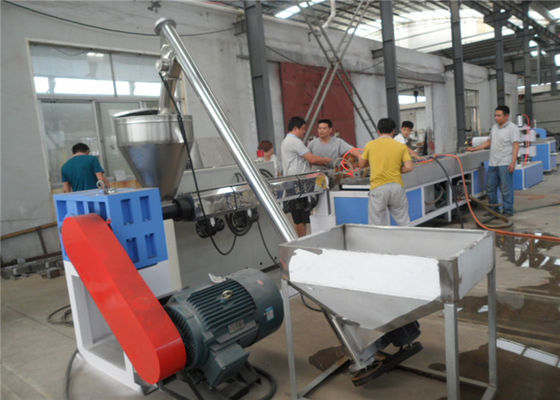

37kw WPC Plastic Profile Extrusion Line,
Plastic Profile Extrusion Line 180kg/H,
Integral Type Plastic Profile Extrusion Line
PVC Plastic Profile Extruder , WPC Plastic Profile Extrusion Machine , Plastic Profile Extrusion Line
1.Working flow of Wood plastic (PE PP PVC) profile machine/ WPC making machine/ wood plastic composite machine
Feeder→ Conical Twin-screw Extruder → Mould →Calibration Table → Haul-off → Cutter → Stacker
(Note: Other Auxiliary Machine, such as crusher, mixer, etc. will be provided according to client's requirements)
2.Bamboo and plastic composite plate/board Production Extruder Machine is mainly used for making PVC plastic profile with different section shape and height. the surface of PVC profile/panel can be treated by printing & coated with glossy oil, or by heat transfer printing, or by lamination, which can make good decoration effect for kitchen,toilet,balcony and so on.
Description of pvc profile extrusion line:
1) Extruder screw and barrel from Zhoushan,with vacuum degassing system, can get rid of the waste gas from the raw material which can ensure good quality of final granules.
2) Gearbox: From Jiangyin gearbox company,very famous brand in China,with nice outline, stable running, low noise and long service time.
3) Heating system: adopting cast aluminum heaters with stainless steel plate covers, wind fan cooling system, ensuring good features of cooling and heating, precision temperature controlling.
4) Driving system: adopting Siemens motor, using ABB inverter which provide stable torque output and various speed.
5) Vacuum calibrating and cooling Table: the tabley is made by #304 stainless steel, good strength and performance,long life time.
6) Traction machines: Rubber block traction belt,traction speed is adjustable by ABB frequency inverter.
7) Cutting machine: saw blade cutting,low noise,quick cutting performance,with dust collection device.
|Extruder Model||Extrusion output||Main motor power||Screw speed||Barrel Outside cooling||Screw Material||Barrel Material|
|PLCS 55/110||120~180kg/h||22kw; AC Motor||38.4r/min||400w×3 wind cooling fan||38CrMoALA and processed by high-temperature nitriding. Nitriding depth:0.5-0.6
|38CrMoALA and processed by high-temperature nitriding. Nitriding depth:0.4-0.7
|PLCS 65/132||200~260kg/h||37kw; AC Motor||38.4r/min||550w×3 wind cooling fan|
|PLCS 80/156||300~450kg/h||75kw; AC Motor||40 r/min||550w×5 wind cooling fan|
|PLSS 45/30||30~40 kg/hr||18kw; DC motor||100r/min||150w×3 wind cooling fan|
|Frequency||Reducer structure||Reducer||Extrusion center height||Bearing and oil tight and other standard components|
|Main Dring Motor Control by Inverter; ABB brand||Integral type||Gear and the component of the axle are made of alloy steel. Gear has been processed by nitriding, quenching and grinding. The accuracy of gear is ISO6. The hardness of the gear surface is HRC56-62.||1050mm or according to customer's requirements||Adopt the premium brand products, The whole machine with the features of high working, compact structure, run smoothly, low noise and efficiency|
1. Easy to operate
2. Long service life
3. Easy to maintence
