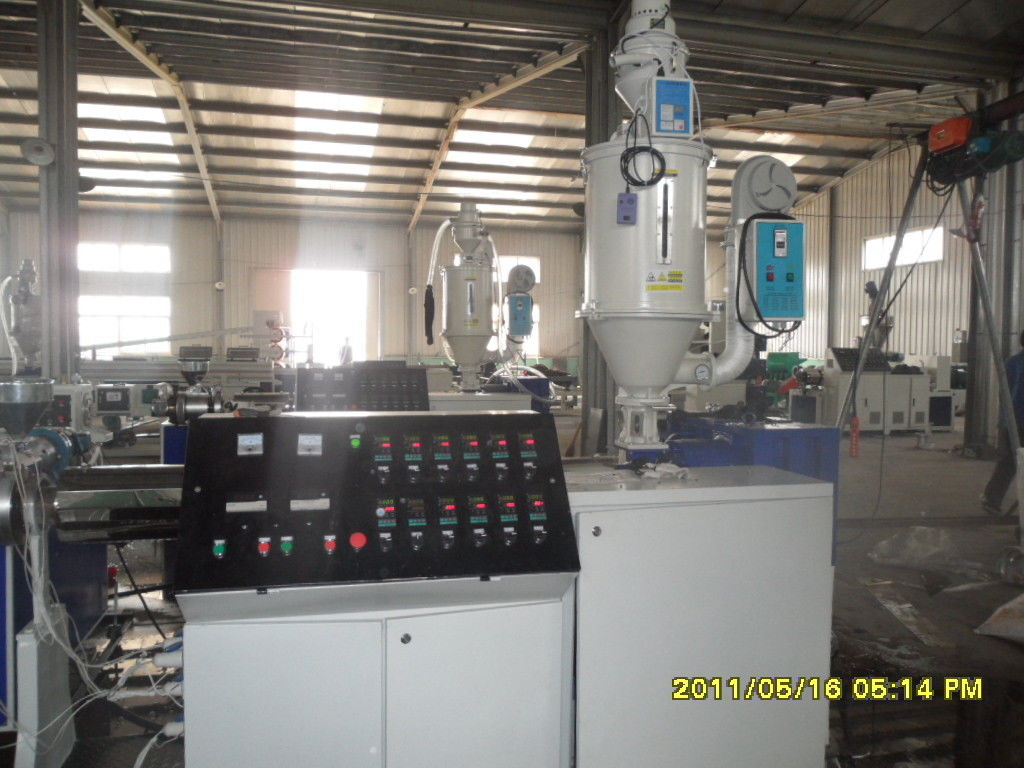

Garden Hose Plastic Pipe Extrusion Line 50kw - 80kw , Single Screw Extruder

Garden Hose Plastic Pipe Extrusion Line 50kw - 80kw , Single Screw Extruder

Quick detail:

Pipe material: PVC

Power: 50-80Kw

Weight: 5T

Screw type: SJSZ

Pipe range: 20-63mm

After-sales Service Provided: Engineers available to service machinery overseas

Minimum order: one set

Certification: CE,CSA,UL,ISO9001

Port: Qingdao port

Description:

Technics flow as below:

Raw material + additive → mixing → granulating → conveying feeding → single screw extruder → extruding mould → spray cooling water tank →belt haul-off → fiber winder → warm-up oven → single screw extruder → mould → spray cooling water tank → belt haul-off → meter measure → winder → finished product inspecting & packing.

Power: 32KW

Capacity: 90KG/H

Speed of screw: 10-80r/min

Heating zone: 3 zones,

NO. of extruder: 2sets

Material of screw: 38CrMoAlA

Material: pvc + other material

Mould: change molds to produce different pipe products.

This machine produces the PVC fiber hose with spiral wrapping and knitted fiber with different braider.

This line is designed to produce PVC fiber reinforced hose, the wall of which is three layers, outer and inner layer are soft PVC hose, middle layer is terylene fiber network, which has good chemical and physical property.

It mainly consists of :

2 sets single screw extruder

2 sets water tank

2 sets tractor,

1 set braider,

1 set drying oven,

1 set winder

Applications:

The PVC Fiber Reinforced Flexible Pipe, also referred to grid pipe or snake skin pipe, is widely used to convey the middle pressure or corrosive gas and liquid. Now it is widely used in such fields as mechanical engineering, coal min, petroleum, chemical industry, agriculture irrigation and civil applications (solar water heater or gas-canisters). At the present time, it is widely used to the irrigation pipe to the garden and lawn.

Specifications:

Competitive Advantage:

1. good after-service

2. spare parts are free

3.gurantee:one year or according to customer’s requirement.

4.advanced technology and better quality
