Product Details:
|
| Brand Name: | Aorui | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Screw Design: | Double Screw | Voltage: | 380V 50HZ |
| Warranty Time: | 1 Year | Screw And Barrel Material: | 38Cr Moaia |
| Certificate: | CE Certificate | Motor Brand: | Siemens |
| Condition: | New | Place Of Original: | China |
| High Light: | 350KG/H WPC Board Production Line,Twin Screw WPC Board Production Line,CSA PVC Foam Board Production Line |
||
WPC Board Production Line , PVC Plastic Board Extrusion Line , Twin Screw PVC Foam Board Production Line
Quick detail:
1.pvc foam board machine working flow
plastic Extruder→ Die mould → Vacuum Calibration Table → Haul-offs and Cutting Machine Unite →Stacker → Control cabinet
(Note: Other Auxiliary Machine, such as crusher, mixer, will be provided according to client's requirements)
2.WPC/PVC door board extrusion line
Production line configuration reference( wpc door board machine )
Item |
component | quantity |
| 1. | double screw extruder | 1set |
| 2. | mould | whole 1set |
| 3. | vacuum calibration tank | 1set |
| 4. | hauling machine | 1set |
| 5. | cutter | 1set |
| 6. | stacker | 1set |
Description of pvc foam board machine:
| Machine Name | Information |
| SJ80/156 Double Screw Extruder or SJ92/188 Double Screw Extruder |
Function: make WPC PVC foam board, PVC foam board kitchen Capacity: 300-350 KG per hour |
| Die and calibration mold | Function: extrusion and molding the products Using high-quality and durabel raw materials, Product size: 1220 mm * 2440 mm (3 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm, etc.) |
| Water Cooling Table | Function: rapid shaping of plasticized profiles, the water can be recycled |

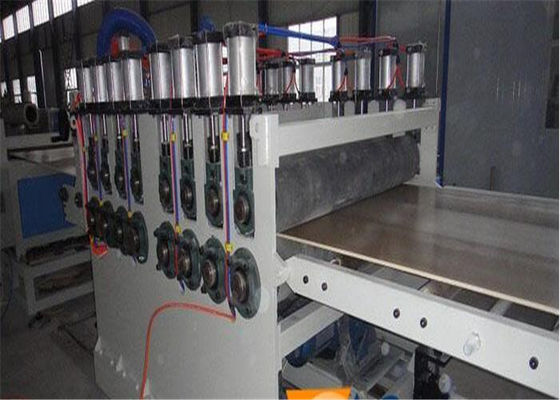

| Hauling Off | Function: Pull the board to increase the output of PVC foam board Use high-quality rubber blocks without hurting the foam board |
| Cutter | Function: According to customers needed length,cutting the PVC foam board There is a PLC control,it can set 7 datas |
| Auxiliary Machine | |
| Mixing Unit | Function: Mixing calcuim carbonate, PVC resin, cazn stabilizer, foam agent, stearic acid etc. |
| Crusher | Function: crush the waste roof tile and recycled PVC board,such as PVC window door profile, pipe, wall cladding, profile etc. |
| Puliverizer | Function: Grind the PVC profiles to powder. |
| Lamination and hot stamping machine | Function: laminate the PVC film on the surface of board, Make the surface more beautiful. The pattern can according to customers. |
Technical parameters:
| Product width | Product thickness | Extruder mode | Max output | Main motor power | Dimension size | Weight | Installation capacity |
|
1220mm |
3-30mm | SJSZ80X156 | 400KG/H | 75KW | 20mx2mx2.6m | 25T | 150KW/H |
| 1220mm | 3-30mm | SJSZ80X173 | 600KG/H | 90KW | 22mx2mx2.6m | 26T | 165KW/H |
| 1220mm | 3-30mm | SJSZ92X188 | 800KG/H | 110KW | 25mx2mx2.6m | 30T | 210KW/H |
Applications:

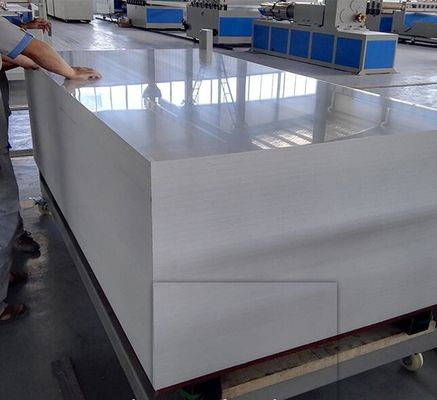

This WPC board production line uses PVC and wood fiber as raw material, by semi-crust or full-crust foaming technology, to make WPC solid boards/panels with low density for 0.45-0.8gram/cm3, the WPC foam boards are widely used for making furniture panel, construction formwork, partition wall....
Competitive Advantage:
1.full set of mould can safisfy different kinds of profile production(max profile width is 600mm)
2.high level vacuum extent
3.automatic length accounting device for precise cutting
4.saw cutting machine ,adopt advanced Germany technology
5.stainless steel and pneumatic controlled

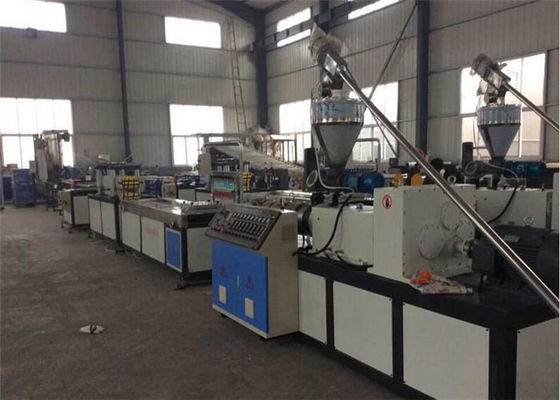

Machine display:
