Product Details:
|
| Condition: | New | Plastic Processed: | PVC WPC |
|---|---|---|---|
| Screw And Barrel Material: | 38Cr Moaia | Screw Design: | Double Screw |
| Voltage: | 380V 50HZ | Warranty Time: | 1 Year |
| Application: | Pvc Foam Board | After-sales Service: | Engineer Availiable To Service |
| Place Of Original: | China , Qingdao | Automatic Grade: | Fully Automatic |
| High Light: | WPC PVC Foam Board Making Machine,PVC Foam Board Making Machine 380kg/H,350mm Roller WPC Board Production Line |
||
PVC Foam Board Making Machine , PVC Furniture Board Production Line , PVC Foam Board Manufacturing Machine
Quick detail:
Equipment composition:
1. SJSZ Conical twin screw extruder
2. Board extrusion mold(Equipped with oil distribution temperature controller)
3. Cooling sizing forming device
4. Cooling bracket(Equipped with trimming device)
5. Eight roller tractor
6. Online horizontal cutting machine
7. Manipulator discharge
8. SRH Mixer
9. SWP crusher
10. Lamination machine
Foam board size:
1220mmx2440mm Thickness:3-30mm
Description of pvc foam board production line:
1. Screw adopt special designed mixing function and high plastication,to ensure the plastic melts evenly, it has high extrusion capacity.
2. Hanger mould head adopts special double throttling design to make sheet thickness easily adjusted.
3. Temperature control accuracy±1℃ can control the plasticizing process and sheet thickness smoothness.
4. Roller forming roller forming table using flat or vertical, can be free to lift in the thick plate operation process to provide more selective, improve the quality of plate.
5. The thickness control of sheet metal can be controlled by screw adjustment and hydraulic roller bidirectional adjustment.
6. Roller diameter is 350mm and double loop cooling system, with mold temperature control machine to control roller temperature to make uniform thickness.
7. Slicing machine, plate length and quantity adjustable.
8. Winding table device, using torque motor, with four axis automatic tension control, can adjust the speed and winding tension to achieve the purpose of flat winding sheet, with the strip device can be set freely the required width of the product, the machine is equipped with automatic meter meter can set the length of the product.
Technical parameters:
| WPC foam board extrusion line | Product size | Capacity |
| SJMSB 80/156 |
Width: 1220mm, Thickness:3-18mm |
350-380kg/h |
| SJMSB 80/173 |
Width: 1220mm Thickness: 3-30mm |
420-450kg/h |
| SJMSB 92/188 |
Width: 1220mm Thickness: 20-40mm |
500-550kg/h |
Applications:
Transportation: ships, aircraft, buses, train cars, roof, the envelope core layer, the interior decoration with the board.
Building Decoration Industry: Building Exterior Wall, Interior Decoration Board, Residential, Office, Public Building Building, Commercial Decoration, Clean Room Board, Ceiling.
Advertising industry: screen printing, computer lettering, advertising signs, display panels, signs with the board.
Industrial applications: chemical industry anti-corrosion engineering, thermoforming, cold storage board, special cold storage, environmental protection board.
Other uses: templates, sports equipment, breeding timber, beach moisture-proof facilities, water-resistant timber, art materials, all kinds of light partition.
Competitive Advantage:
Easy to operate
Long service life
CE Certificate

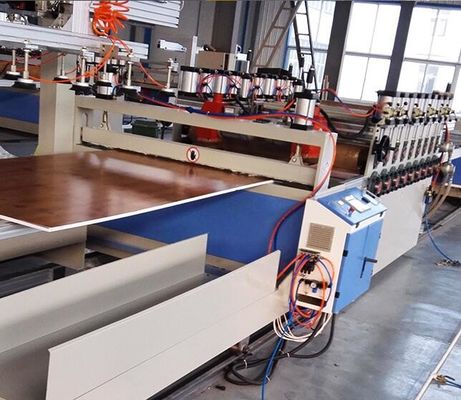

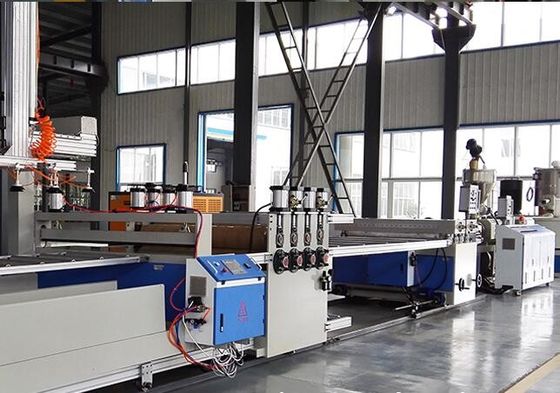

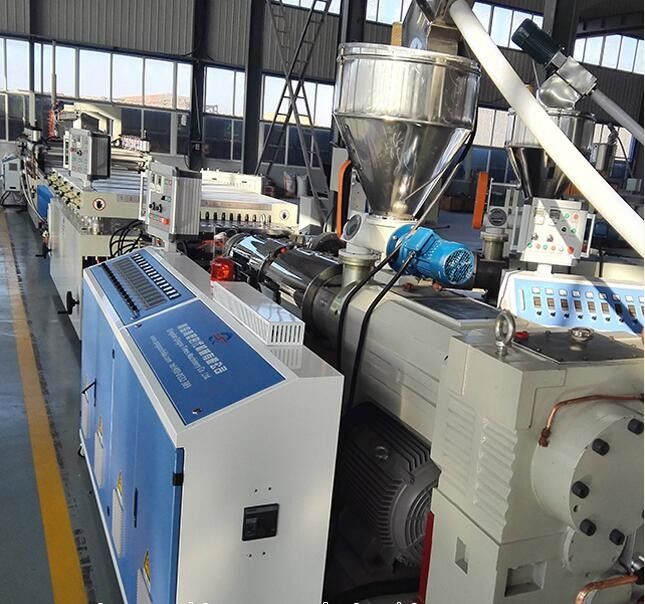

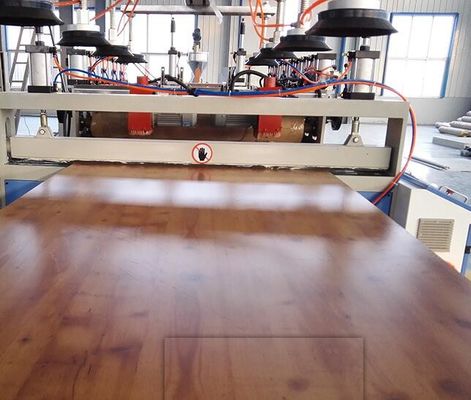

Machine display:
