Product Details:
|
| Automatic Grade: | Fully Automatic | Voltage: | 380V 50HZ |
|---|---|---|---|
| Screw Design: | Twin Screw | Place Of Original: | China |
| Motor Brand: | Siemens | Plastic Processed: | PVC WPC |
| Inverter Brand: | ABB | Temperature Controller: | Omron |
| Screw Material: | 38Cr Moaia | Certificate: | CE Certificate |
| High Light: | Crust WPC Board Production Line,Twin Screw WPC Board Production Line,300KG/H WPC Board Production Line |
||
Fully Automatic PVC Foam Board Production Line , WPC PVC Foam Board Crust Board Making Machine
Description of pvc foam board production line:
1. PVC Curst Foam Board Machine adopts Celuka foam technology, which can produce a kind of PVC foam boards with superior quality.
2. These processes result in a "skinning" or outer layer of foam board, thus has smooth and shining surface with characteristics of lightweight, scratch-resistant, durable, water and weather resistant, anti-corrosion, impervious to salts, insects and many chemicals including some acids.
PVC foam board can be100% recycled and reused.
3. The PVC free foam board production line is composed of a twin-screw extruder, a special distributor, a plate co-extrusion die and auxiliary machines. The traditional free foam board is laminated with two unique PVC transparent rigid sheets, which is better than the traditional PVC foam board surface. High hardness, smooth surface, easy to assemble, can be used to make high-grade PVC co-extruded foam board.
4. The company provides formulas and a full set of process technology. It has the characteristics of large output, stable extrusion, high foaming ratio, smooth and wear-resistant surface. Through printing, filming and hot pressing equipment, various imitation wood products can be produced with a wide range of uses.
RODUCT SPECIFICATIONS
|
Machine Name
|
Function
|
|
SJ80/156 Double Screw Extruder
or SJ92/188 Double Screw Extruder |
Function: make WPC PVC foam board, PVC foam board kitchen
Capacity: 300-350 KG per hour, 500 - 600 KG per hour |
|
Die and calibration mold
|
Function: extrusion and molding the products
Using high-quality and durabel raw materials, Product size: 1220 mm * 2440 mm (3 mm, 5 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm, 25 mm, 30 mm, 35 mm, 40 mm, etc.) |
|
Water Cooling Table
|
Function: rapid shaping of plasticized profiles, the water can be recycled
|
|
Hauling Off
|
Function: Pull the board to increase the output of PVC foam board
Use high-quality rubber blocks without hurting the foam board |
|
Cutter
|
Function: According to customers needed length,cutting the PVC foam board
There is a PLC control,it can set 7 datas |
|
Auxiliary Machine
|
|
|
Mixing Unit
|
Function: Mixing calcuim carbonate, PVC resin, cazn stabilizer, foam agent, stearic acid etc.
|
|
Crusher
|
Function: crush the waste roof tile and recycled PVC board,such as PVC window door profile, pipe, wall cladding, profile etc.
|
|
Puliverizer
|
Function: Grind the PVC profiles to powder.
|
|
Lamination and hot stamping machine
|
Function: laminate the PVC film on the surface of board, Make the surface more beautiful.
The pattern can according to customers. |
Applications:
Transportation: ships, aircraft, buses, train cars, roof, the envelope core layer, the interior decoration with the board.
Building Decoration Industry: Building Exterior Wall, Interior Decoration Board, Residential, Office, Public Building Building, Commercial Decoration, Clean Room Board, Ceiling.
Advertising industry: screen printing, computer lettering, advertising signs, display panels, signs with the board.
Industrial applications: chemical industry anti-corrosion engineering, thermoforming, cold storage board, special cold storage, environmental protection board.
Other uses: templates, sports equipment, breeding timber, beach moisture-proof facilities, water-resistant timber, art materials, all kinds of light partition.

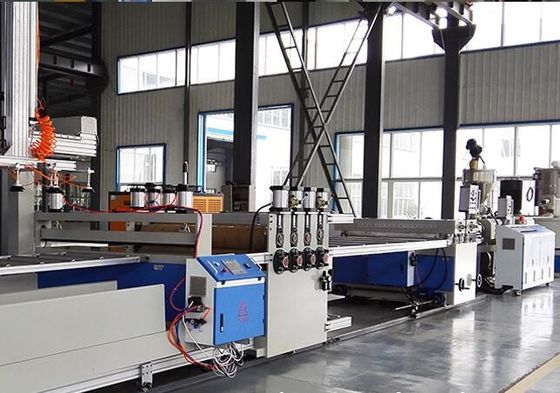

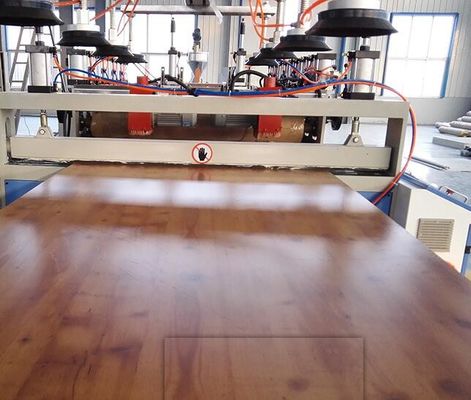

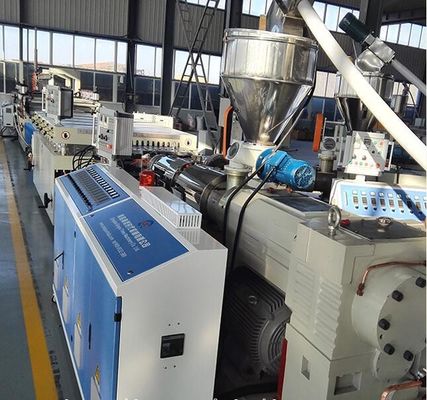

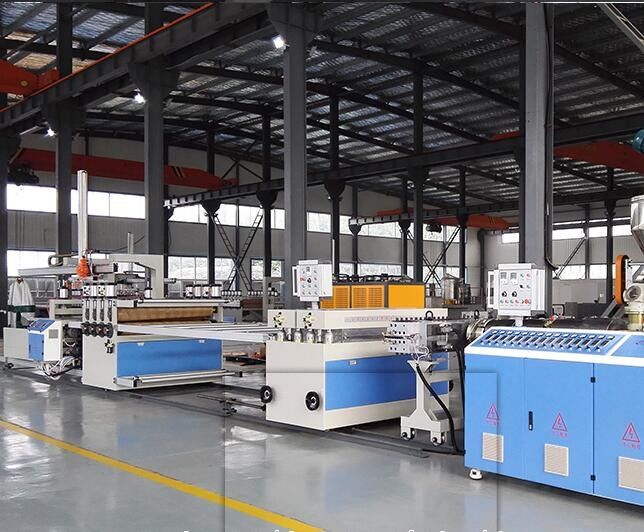

Machine display:
