Product Details:
|
| Brand Name: | Aorui | Condition: | New |
|---|---|---|---|
| Guarantee Time: | 1 Year | Place Of Original: | Qingdao City |
| Delivery Time: | 25 Days | After-sales Service: | Engineers Availiable To Service |
| Inverter: | ABB | Voltage: | 380V 50HZ |
| High Light: | Plastic Profile Production Line,Plastic Profile Extruder |
||
Siemens Motor Plastic PVC WPC Profile Extrusion Line For Window Door Profile
Quick detail:
This model of PVC ceiling panel making machine has the characteristics of high output, low sheering force, long life service. Most important of all, after simple changing of the die mold and screw, this machine can also produce the foam profiles. What's more this machine is reliable quality, very cheaper price, complete turnery solution including supplying machine, installation, training supplying raw materials and all others you need!
Description:
1.The main extrusion machine adopts special-designed screw, barrel, mould. Equipped with the auxiliary machinery, it could produce the PP ,PE ,PVC, Wood-Plastic products. It's a new environment-protecting product, which combines the wood powder and plastic powder at a certain percent. After the high temperature and mould extruding, the wood and plastic composites and becomes the final products.
2.This production line consist of twin screw extruder, vacuum shaping table, drawing machine, plastic cutter and pilling frame, and also coordinated with different profile break-section and mould to produce PVC door and window profiles, foamed special shaped materials, decoration panel material, profile and multi-hole wire plastic products etc.
3.1) Extruder adopts cast-aluminum heating circles, high quality thermo-controllers, air blowers for cooling, AC/DC inverter and screw core oil circulation cooling.
2) Calibrating tables adopts special cooling system, which can guarantee the effective cooling.
3) Haul off machine adopts special lifting technology, which works stably with powerful hauling force.
4) Cutting machine works together with extrusion line synchronously, installed with length-setting unit, which can guarantee high speed cutting, uniform length of cutting.
Specifications:
|
Model |
SJSZ65/132,SJSZ80/156,SJSZ92/188 |
|
usage |
extrusion outdoor decorative |
|
raw material |
recycled PE/PP,wood powder, additive material,etc |
|
product size |
maximum:400mm,or according to prdroduct’s drawing |
|
Extruder feature |
Special designed extruder |
|
wood powder ( wood fiber) |
high volume of addition up to 50~75 percent |
|
Plastic proceed |
PP,PE,PVC,wood plastic composite |
|
Auxiliary machine |
Emboss machine,sanding machine,polishing machine |
|
Product type |
Dustbin, Sound insulation board (wall),edging,blinds,bulkhead,curtain rod, |
Application product PVC Ceilings & Panels:
1. Self-fire extinguishing, non-flammable.
2. It is inpenetrable by insects and termites, and won't rot or rust.
3. Resistance to weather/ special chemicals, waterproof/washable.
4. The excellent rigid and superior impacted surface is without any peeling.
5. Natural wood grain: showing authentic wood srtucture and artistic sense.
6. Easy to be cut, drilled, nailed, sawet, and riveted. DIY is all right.
7. Quick maintenance and no need of painting.
8. The simple and fast installation can save a lot of time and manpower cost.
Competitive Advantage:
The Line has the feature of low waster of energy, good performance, high speed and high efficiency, atc. The finished profiles produced by this machine has the feature of good surface, stronger compression resistance, light and heat stability, low size-changing and ageing resistance.

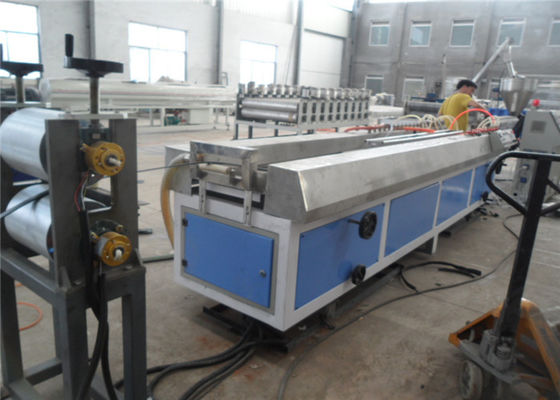

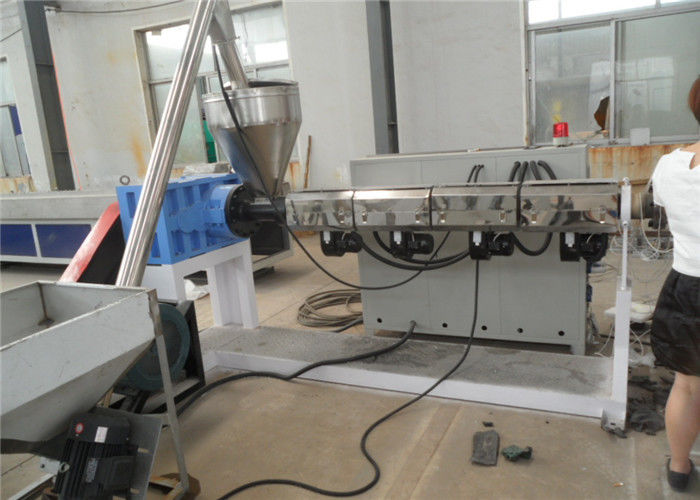

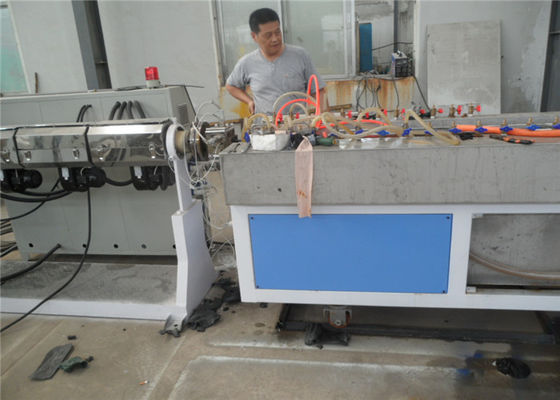

Machine pictures:
