380V Automatic WPC Foam Board Making Machine with Double screw

Brand Name:	AORUI
Model Number:	SJSZ80/156
MOQ:	One set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL CSA ISO9001

Condition:

New

Automatic Grade:

Fully Automatic

Brand Name:

Aorui

Screw Design:

Double Screw

Place Of Original:

China

Voltage:

380V 50HZ

Certificate:

CE Certificate

Motor Brand:

Siemens

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

WPC Foam Board Making Machine

380V Automatic WPC Foam Board Machine

Double Screw WPC Board Making Machine

Product Description

PVC Foam Board Machine , WPC Foam Board Machine , PVC Foam Board Making Machine With CE Certificate

Quick detail:

1.Plastic board extrusion line is used to produce plastic board with width from 600 to 1250mm, which are effective,safe
2.Capacity: Conical twin-screw extruder, suitable for process PVC powder with high capacity
3.Diameter: We have very successful production experience.Auxiliary machine closely meet customer specifications. Nice apperance, automatic control and stable running performance.

Description of plastic board machine:

1.Extruder

Screw and Barrel: Screw and Barrel Material 38CrMoAlA,Nitriding, Surface Chrome plate, Nitriding Layer
Thickness:0.5~0.7mm, Surface Rigidity:800~900HV.

2.Mould

Extrusion mold material: 40Cr. Calibration mold material: Wearable tin bronze ZQSn5-2-5.

3.Vacuum Platform

Length: 4-6Meters, Table fore-and-aft Move: Adopt 1.5KW Gearbox Speed Reducer Motor Adjusting Distance equal to 800mm. Table Adjusting: Up-and-down adjusting adopt worm reducer & screw adjusting

4.Haul-off

Haul-off Bracket Length: 1200mm, Above Haul-off Bracket Compaction Mode: Adopt pneumatic gas
cylinder, Cut Motor Power: 0.75KW*1PC.

5.Cutter

Cutting action controller : PLC

The impact method:pneumatic impact

Cutter structure:Saw type

6.Stacker

Stacker length 4m, 1.5mm stainless steel board,
Stacking by Gas cylinder, Adopt limited switch send out cutting signal.

Technical parameter:

PVC WPC FOAMED PLATE MAKING MACHINE
Model	GYF1220-A	GYF1220-B	GYF1500-C
Extruer	GSZ80/156	GSZ80/173	GSZ92/188
Max.output(kg/h)	350	600	650
Die width(mm)	1320	1320	1550
Production width(mm)	1220	1220	1400
Power(kw)	146	170	205

Application of pvc foam board:

The application can be used as decoration board for kitchen cabinet, Furniture board, bathroom board, building template, construction board, WPC indoor flooring base, Advertisement board, etc.

PVC foam board production line machine advantages:
1.Inverter is SIEMENS G120 (the best one in SIEMENS)
2.Main Motor/Cutter Motor/AC Contactor/Thermal Overload Relay are Germany SIEMENS
3.Breaker is SIEMENS from Germany
4.OMRON Japan
5.The mould is designed by our company with the latest technology in China
6.Calibration mould:Thickness is 100mm
7.Material formulation:we can input 100%recycled material.

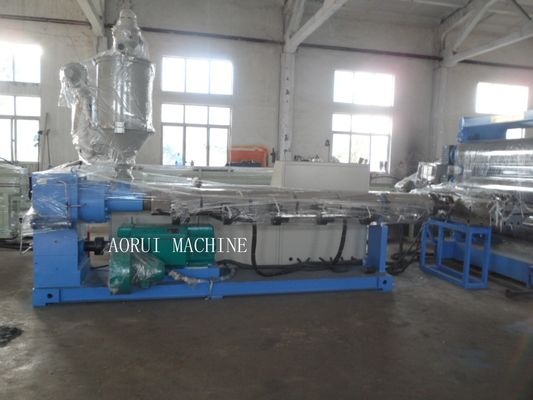

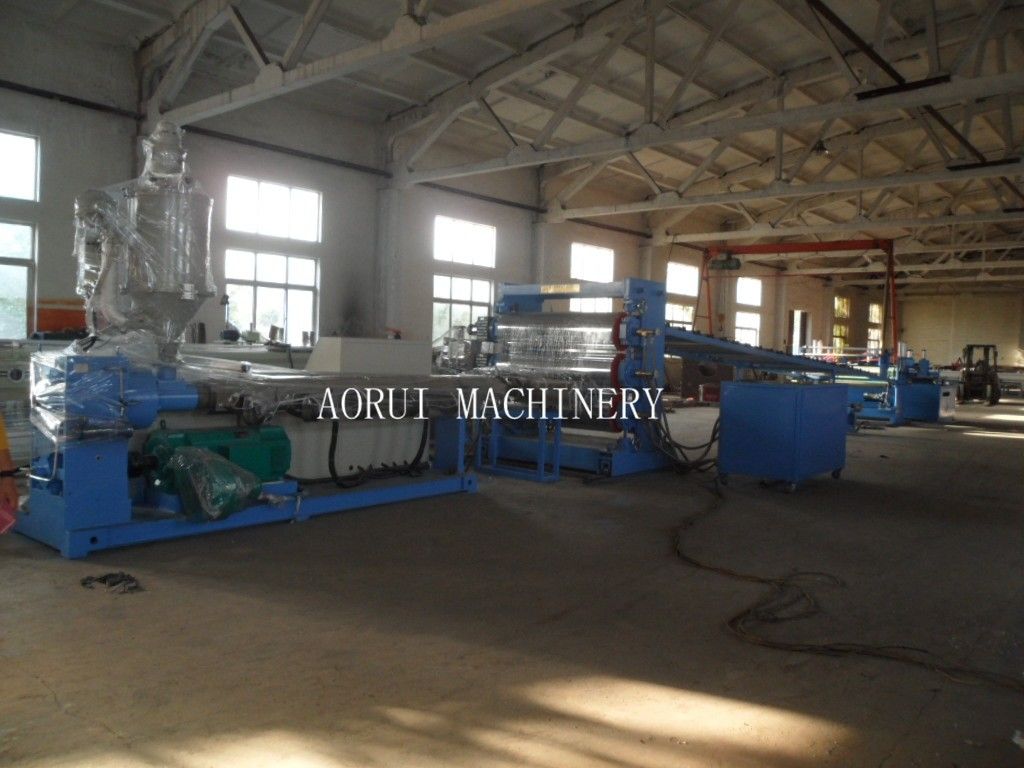

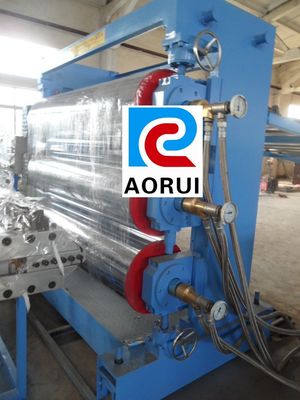

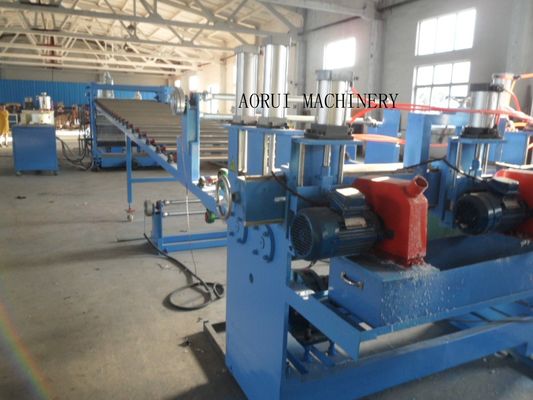

Machine display:
