Product Details:
|
| Brand Name: | Aorui | Model Number: | SJSZ65X132 |
|---|---|---|---|
| Plastic Processed: | PVC | Certificate: | CE Certificate |
| Voltage: | 380V 50HZ | Automatic Grade: | Fully Automatic |
| Place Of Original: | China | Screw Material: | 38Cr Moaia |
| Screw Diameter: | 65mm | Inverter Brand: | ABB |
| High Light: | UPVC Profile Making Machine,65mm PVC Window Profile Extrusion Line,Door Plastic Profile Extrusion Line |
||
Plastic Profile Extrusion Line , PVC Window Profile Making Machine , UPVC PVC Celling Profile Production Line
Quick details:
1.PVC WPC profile production line can produce all kinds of profiles, for example, window, door and door frame, pallet, cladding of outdoor wall, faciliry of ourside park, floor etc. Output profile is Wood Plastic Composite(WPC) or Plastic UPVC.
2.The PVC door and window profile production line can choose different specifications of conical twin-screw extruders according to different profile sections and molds, and configure the corresponding vacuum calibration table, tractor, cutting machine, stacker and other auxiliary equipment.
PVC Ceiling Wall Panel Extrusion Production Line:
| Machine Name | Function |

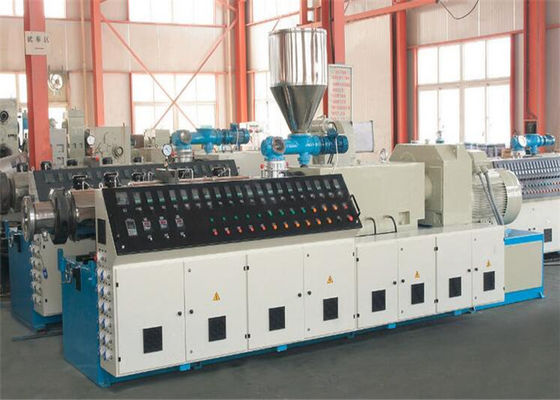

| Concial Screw Extruder | Function: make PVC ceiling or PVC wall panel Capacity: 120 - 280 KG per hour |
| Die and calibration mold | Using high-quality and durabel raw materials, extrusion and molding the products Product width: 200mm, 250 mm, 300 mm, 600 mm and so on. |

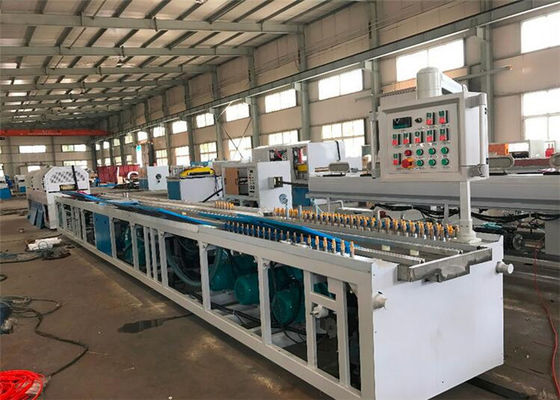

| Water Cooling Table | Recycling water cooling, rapid shaping of plasticized products |

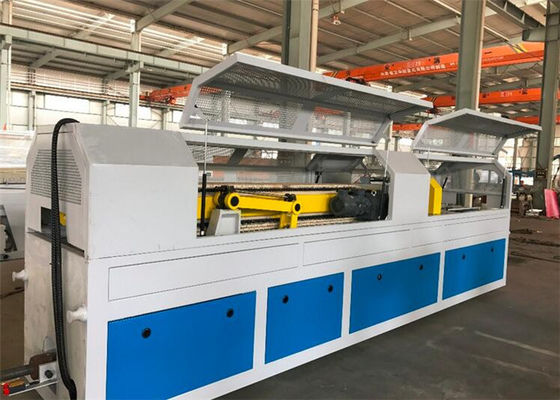

| Hauling Off | Use high-quality rubber blocks to increase output. |
| Cutter | According to customers needed length,cutting the roof tile.There is a PLC control,it can set 7 datas |
| Auxiliary Machine | |
| Mixing Unit | Mixing PVC powder, CaCO3, PVC Resin, Stearic acid, Compound stabilizer etc. |
| Crusher | crush the waste roof tile and recycled PVC materials,such as PVC pipe,sheet,profile etc. |
| Puliverizer | Grind the PVC panels to powder. |
| Hot Stamping and Laminating Machine | Cover the PVC film on the surface of PVC panel, Make the pattern of the panel diversified |
Technical Parameter:
| Model | TPM-180 | TPM-300 | TPM-600 |
| Max.width of product(mm) | 180 | 300 | 600 |
| Extruder model | SJSZ-51/105 | SJSZ-65/132 | SJSZ-80/156 |
| Extrusion capacity(kg/h) | 180 | 250 | 350 |
| Motor power(kw) | 22 | 37 | 55 |
| Total length(m) | 18 | 22 | 26 |
Our advantages:
PLC control system is available.
All electrical components adopt famous brand: OMRON, ABB, SIEMENS, etc.
Overcurrent protective of motor.
With online protection film wrapping device.
Machine dispaly:
