Product Details:
|
| Brand Name: | Aorui | Condition: | New |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Screw Design: | Double Screw |
| Warranty Time: | 1 Year | Scrw Diameter: | 65mm |
| Place Of Original: | China | Voltage: | 380V 50HZ |
| Motor Brand: | Siemens | Port Of Lading: | QINGDAO Port |
| High Light: | 380V PVC Profile Extrusion Line,Window Plastic Profile Extrusion Line,Automatic Plastic Extrusion Machine |
||
Plastic Profile Extrusion Line , PVC Plastic Profile Extruder , PVC Window Profile Extrusion Line
Quick details:
1.This pvc profile production line can use for producing pvc door profile products, pvc ceilling profile products, pvc wall panel profiles etc.
2.PVC Profile Production line equipped with conical twin screw extruder, calibrator unit, traction unit, cutting unit and stacker.The whole production line has material thawing even,
Description of plastic profile machine:
1.PVC wood profile extrusion line adopt SJSZ65X132 conical twin screw extruder, especial use for pvc powder+wood powder, plastication and forming.It has this fearures, such as high output, good plasticization, and low consumption etc.
2.The profile forming cooling adopt vacuum sizing, circulating water system, vacuum pipe and cooling water pipe are connected by copper wire.
3.Profile traction adopts up and down flat block traction track mechanism, and can increase the different traction glue block to meet the traction of the profile, will not extrude the sheet material, so that the product deformation.
4.The crawler lift is controlled by cylinder, with the function of adjustable pressure, so as to control the contact area and pressure of the crawler to the plate and profile.Cutting machine adopts lifting cutting machine, synchronous control with the host extrusion, with accurate cutting.
Technical Parameter:
|
Width()mm
|
Capacity (Kg/h)
|
Extruder power(kw)
|
Line Length
|
|
200
|
80-100
|
18.5
|
10-16m
|
|
250
|
100-180
|
22-30
|
12-20m
|
|
300
|
150-200
|
37
|
15-25m
|
|
400
|
300-400
|
55-75
|
15-30m
|
Our advantages:
Good qulaity, before we ship the machine, we will test it in our factory.
Easy to operate
Many years experiences

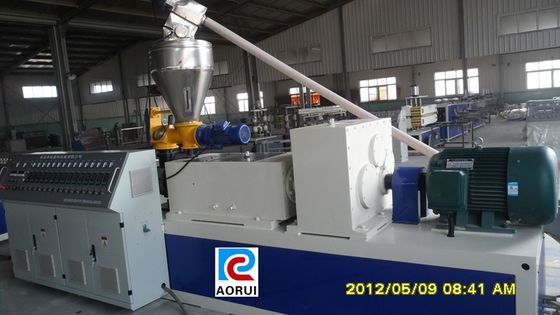

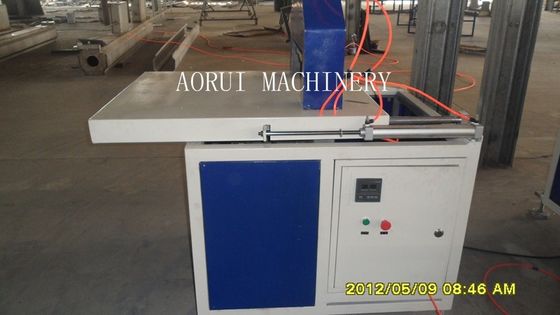

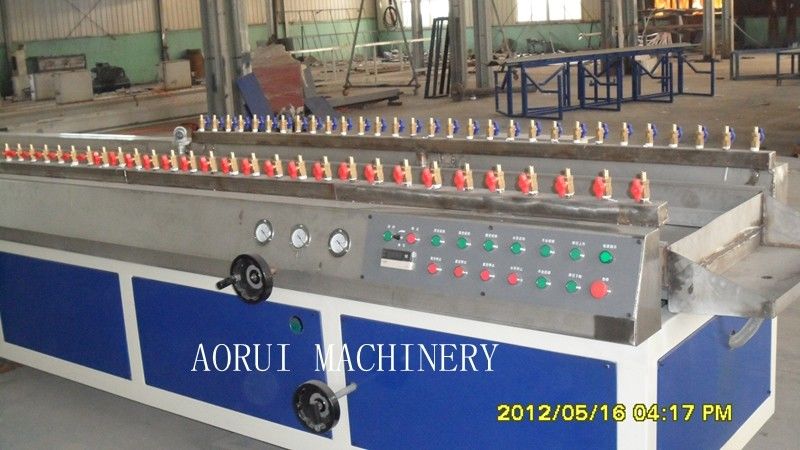

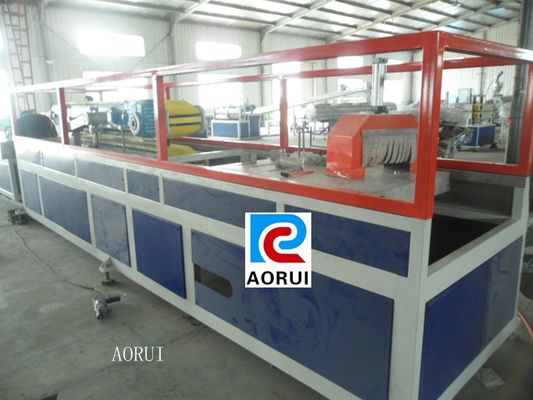

Machine dispaly:
