SJSZ 65X132 PVC Window Profile Extrusion Line Twin Screw Plastic Making Machine

SJSZ 65X132 PVC Window Profile Extrusion Line Twin Screw Plastic Making Machine
SJSZ 65X132 PVC Window Profile Extrusion Line Twin Screw Plastic Making Machine SJSZ 65X132 PVC Window Profile Extrusion Line Twin Screw Plastic Making Machine SJSZ 65X132 PVC Window Profile Extrusion Line Twin Screw Plastic Making Machine

Large Image :  SJSZ 65X132 PVC Window Profile Extrusion Line Twin Screw Plastic Making Machine

Product Details:
Place of Origin: ShanDong China
Brand Name: AORUI
Certification: CE Certificate
Model Number: SJSJ65x132
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 sets per quarter

SJSZ 65X132 PVC Window Profile Extrusion Line Twin Screw Plastic Making Machine

Description
Brand Name: Aorui Automatic Grade: Fully Automatic
Condition: New Place Of Original: China
Warranty Time: 1 Year Voltage: 380V 50HZ
Motor Brand: Siemens After-sales Service: Engineer Availiable To Service
Plastic Processed: PVC WPC Inverter Brand: Siemens
High Light:

Automatic PVC Window Profile Extrusion Line

,

SJSZ PVC Window Profile Extrusion Line

,

Twin Screw PVC Profile Extrusion Line

PVC Window and Door Profile Extrusion Line , SJSZ65X132 PVC Plastic Profile Making Machine



Quick details:

1.This machine is mainly used to produce PVC window & door profiles, PVC trunking profiles, PVC ceiling profiles, PVC panel, PVC board and so on. This PVC profile extrusion line adopts advanced design concept to ensure the efficient extrusion of PVC material, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.

2.It is designed for producing various size of plastic composite products,such as PVC WPC profiles,WPC board,WPC decorate panel.Our WPC machine has features of low consumption,low noise,stable running..



Description of plastic profile production line:



a. Conical twin screw extruder:
Using the high efficient conical twin screws, specially designed for PVC power to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.

b. Extrusion Mould:
Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality PVC profiles. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the PVC profiles fast calibrated and cooled.

c. Spraying and cooling table:
Rapid vacuum calibrating system allows the hot extruded PVC profiles to be cooled in a very short time and obtain the final size. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the sizing and cooling performance as well as the production speed.

d. Haul off machine:
Adopts caterpillar type suitable for different sizes of pipes. Haul off caterpillar blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.

e. Cutting machine:
Precision machine cutter is able to make flat, straight cuts at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.

6. Stacking:
Automatic stacking with fixed length



Technical Parameter:



Extruder Model Motor Power (KW) Suitable Material Final Plate Thickness Output (kg/hr)
SJSZ 51 18 KW PVC+CaCo3 300 mm 120
SJSZ 55 22 KW PVC+CaCo3 300 mm 150
SJSZ 65 37 KW PVC+CaCo3 600 mm 250
SJSZ 80 55KW PVC+CaCo3 1200 mm 400

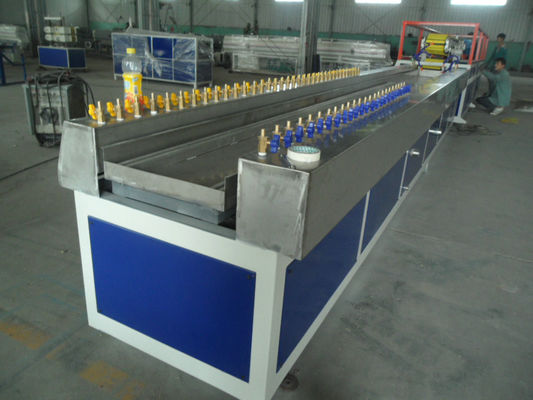

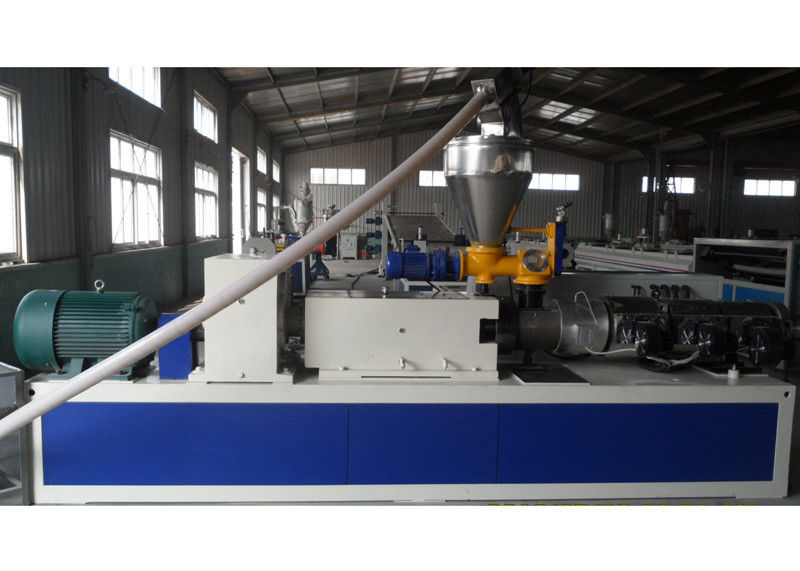

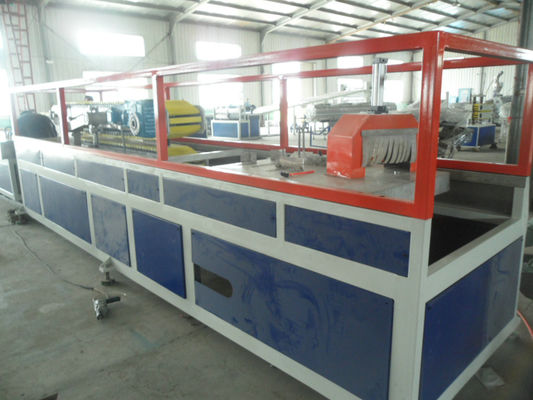

Machine dispaly:

SJSZ 65X132 PVC Window Profile Extrusion Line Twin Screw Plastic Making Machine 0



SJSZ 65X132 PVC Window Profile Extrusion Line Twin Screw Plastic Making Machine 1
