Automatic PVC Plastic Granules Machine With Double Screw

Automatic PVC Plastic Granules Machine With Double Screw
Automatic PVC Plastic Granules Machine With Double Screw
Automatic PVC Plastic Granules Machine With Double Screw Automatic PVC Plastic Granules Machine With Double Screw Automatic PVC Plastic Granules Machine With Double Screw Automatic PVC Plastic Granules Machine With Double Screw Automatic PVC Plastic Granules Machine With Double Screw

Large Image :  Automatic PVC Plastic Granules Machine With Double Screw

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE Certificate
Model Number: SJ75/33 SJ90/33 SJ120/33
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month

Automatic PVC Plastic Granules Machine With Double Screw

Description
Condition: New Automatic Grade: Fully Automatic
Brand Name: Aorui Place Of Original: China
Port Of Lading: Qingdao Port Voltage: 380V 50HZ
Warranty Time: 1 Year Screw Design: Double Screw
Plastic Processed: PVC Certificate: CE Certificate
High Light:

Double Screw Plastic Pelletizing Machine

,

PVC Granules Making Machine

,

Automatic Plastic Granules Making Machine

PP PE PVC Plastic Granules Machine , PVC Granules Machine With High Capacity

Quick details of plastic pellerizing machine:


 Plastic PVC Granulating Machine / pvc granule making machine waste PVC granulating line:
1.Raw material: PVC powder, recycled pvc flakes;
2.Final product: plastic granules
3.Hydraulic screen changer
4.Special vacuum degassing system
5.Output:100-800kg/h(according to customer requirements)
6.Cutting type: hot die face cutter
Application raw materials:
PVC powder, recycled pvc flakes, etc.

Introduction of pvc granules machine:
1.This pelletizing machine is composed by SJSZ series conical twin-screw extruder and correspondingly pelletizing auxiliary equipment; It is suitable for pelletizing PVC material.
2.The pelletizing auxiliary equipment includes die face cutter, air transferring unit, vibration separating and cooling unit,with features of high automation and high production efficiency.
3. Equipped with the side feeding device to ensure high output.Vent design on the barrel to evaporate the volatiles form the recycling material.Hydraulic screen change unit for easy operation and safety.The vertical centrifuge separates and dry the pellets faster.High-efficient side-feeder ensures high capacity feeding, low energy consumption.Plastic pelletizer style: water-ring cutting with extrusion die, noodle cutting type

Technical parameter:


Extruder Model
SJSZ-51
SJSZ-55
SJSZ-65
SJSZ-80
SJSZ-92
Screw Dia.(mm)
Φ51/105
Φ55/110
Φ65/132
Φ80/156
Φ92/188
Main Motor(kw)
18.5
22
37
55
90
Cutting motor(kw)
1.1
1.1
1.5
1.5
2.2
Granules size(mm)
3
3
3
3
3
Output(kg/h)
80~100
100~150
150~250
250~380
380~700



Competitive Advantage:
1, Advanced equipment, precise pelletizing and high producing capacity.
2, Conical double-screw extruder, very suitable to process PVC powder with high capacity

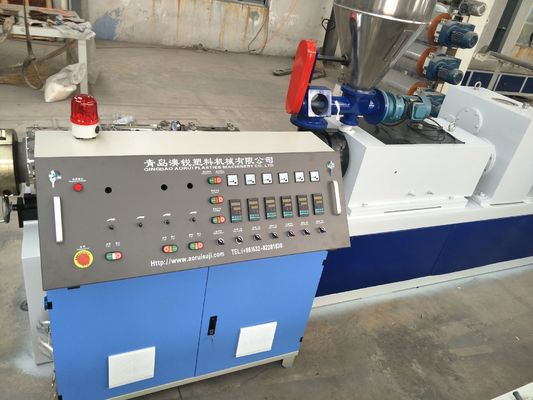

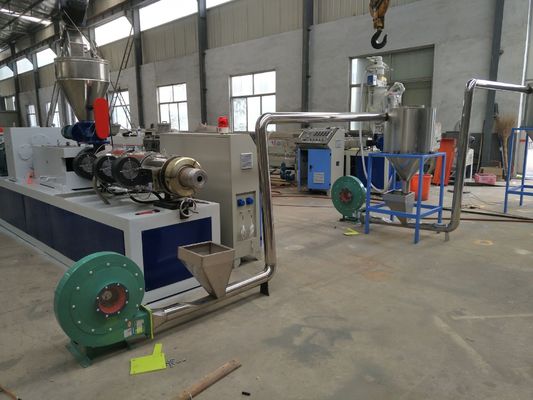

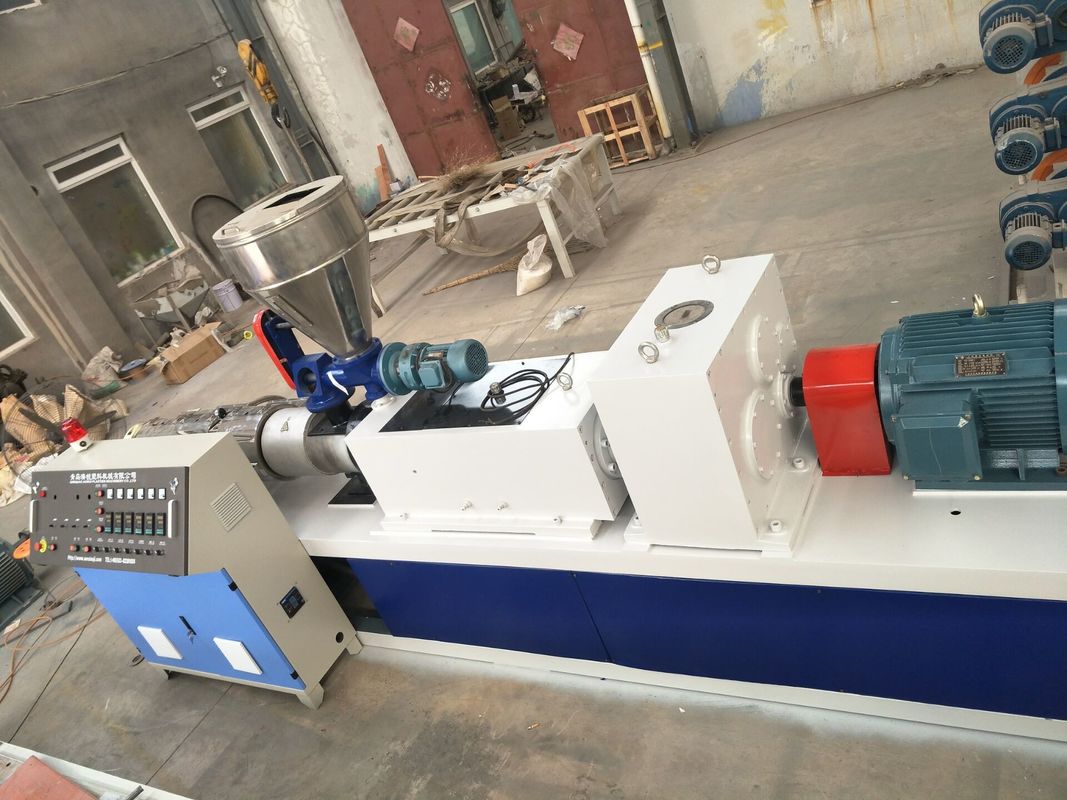

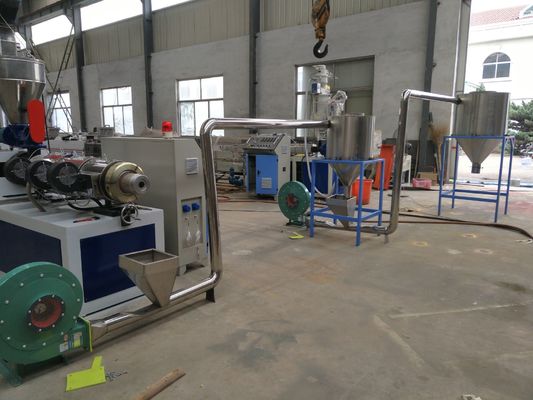

Machine display:

Automatic PVC Plastic Granules Machine With Double Screw 0Automatic PVC Plastic Granules Machine With Double Screw 1
