| Brand Name: | AORUI |
| Model Number: | Single screw |
| MOQ: | One set |
| Price: | Negotiable |
| Payment Terms: | T/T L/C |
| Supply Ability: | 10 Sets per month |

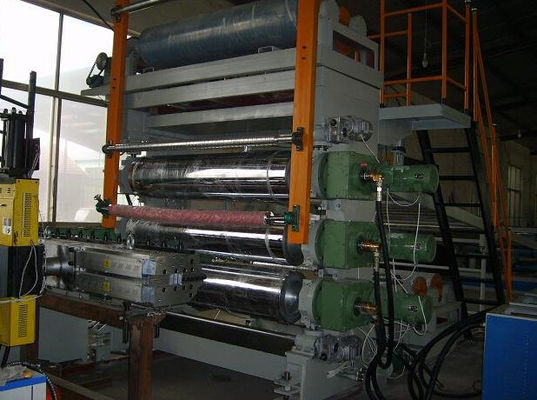

PP / PE Construction Plastic Board Extrusion Line Building Board Machine
Quick detail:
Condition : new
Application:Plates,refrigerator,air conditioner
Screw design: single screw
Process scope:thickness 1-30mm width 3000mm(under)
wire plate,environment protection material,venting quipment,semiconductor equipment,etc.
Description:
PP / PE Construction Plastic Board Extrusion Line has such characteristics as high impact resistance,high rot resistance,high temperature resistance,non-toxic,smooth surface,light,easy to the process,etc.
Configuration:
A.single screw extruder
B.Mould
C.Three roller calendar
D.Roller temperature controller
E.Cooling bracket
F.Haul-off
G.Cutter
H.Stacker
I.Auxiliary machine
Features:
High impact resistance,high rot resistance,high temperature resistance,non-toxic,smooth surface etc.
Application:
Construction formworks,wire plate, environment protection material, venting equipment, semiconductor equipment, mould plate, sports equipment, breeding equipment, seashore wet-proof facility, water-fast material, art material, various interlayer, etc.
Specifications:
Main extruder screw diameter | 120mm | 130mm | 150mm |
co-extruder screw diameter | 60mm | 60mm | 70mm |
Main ext L/D | 38:1 | 38:1 | 38:1 |
co-ext L/D | 33:1 | 33:1 | 33:1 |
motor power of main ext | 185kw-350kw | 185kw-350kw | 185kw-350kw |
motor power of co-ext | 37kw | 37kw | 45kw |
Thickness range | 1-6mm | 1-6mm | 1-6mm |
Width | 1400mm-2100mm | 1400mm-2100mm | 1400mm-2100mm |
Max. output | 350kg/h-800kg/h | 350kg/h-800kg/h | 350kg/h-800kg/h |
actual power consumed | 200kw-400kw | 200kw-400kw | 200kw-400kw |
Competitive Advantage:
1.good after-service
2.spare parts are free
3.guarantee:one year or according to customer’s requirement.
4.advanced technology and best quality
5.international certification standard.
6.our engineer help and teach customer to test the machine.
