| Brand Name: | AORUI |
| Model Number: | Sj90 SJ120 |
| MOQ: | One set |
| Price: | Negotiable |
| Payment Terms: | T/T L/C |
| Supply Ability: | 10 Sets per month |

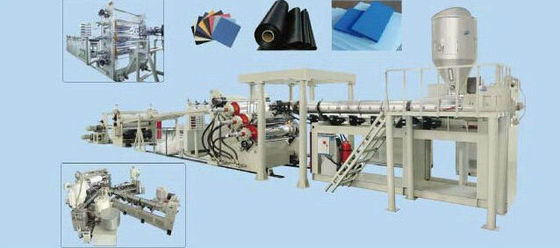

PC Corridor Hollow Plastic Board Single Screw Extruder for Hall and Stadium
Quick detail:
Material : pp pe pc pvc
Product: pp pe pc hollow board
Board width: 1220-2100mm
feature:strong point of smooth and clean surface,good outlook and pressure resistance.
used:construction,packing and adornment industries.
Description:
This production line realizes continuous production of PC/PE/PP hollow grid plate, which is applicable to construction decoration, advertisement collocation, and noise insulation of highway as well as packaging. PE/PP hollow grid plate is an ideal substitute of paper box in making packaging box. It is characterized by light weight, high intensity, damp-proof, waterproof, and anticorrosion. The width of the products is 1220-3000mm, and the thickness is 2mm-12mm.
1. Extruder: The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.
2. Screen changer: Quick screen changer of hydraulic system ensures the short course of screen changing.
3. Mould: Mould adopts high-quality alloy steel and throttling device to guarantee even thickness of the plate.
4. Vacuum calibrating table: Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinarily with vacuum system, which ensures calibrating precision.
5. Tractor: There are two tractors. The first one is of high power, high reduction ratio, multi-roller type, well low-speed operation, and in addition it is equipped with edge-cutting device to ensure the valid width and smooth cut of the edges.
6. Stress remover: The advanced large area conductive heating mode can effectively remove the stress of plate and further improve planeness of the plate.
7. Cutting machine: Accurate instant length-fixed cutting and automatic up-down discharging system combined with alloy steel sharp blade realize high quality of cutting.
Applications:
used in such fields as the electron, household electrical appliances, packaging, machinery, postal, food, medicine, pesticide and advertisement decoration, etc. Also it is used as sun proof ceilings of office building, hall, market, stadium, recreation center and public facilities. Weather shed of bus station, summer house, and corridor of lounge hall.
Safe sun-proof ceilings of airport and factories
Noise barrier on high way and elevated road in cities
Advertisement billboard, lighting box and exhibition decoration
Partition wall between office and living room, and between bathroom and toilet
Specifications:
| Main Machine | SJ-150x33 | SJ-120x33 | SJ-90X33 |
| Molding Block(pcs) | 2 | 2 | 2 |
| Drawing Speed(m/min) | 0.5-8 | 0.5-8 | 0.5-8 |
| Cutting Speed(m/min) | 5-10 | 5-10 | 5-10 |
| Production Capacity(kg/h) | 600 | 500 | 180-220 |
| Width of Board (mm) | 800-2000 | ||
| Thickness of Board(mm) | 2-20 | ||
Competitive Advantage:
1.high output, low maintenance
2.imported electric device,Siemens
3.good after service
