300KW PVC Celuka Foam Board Making Machine WPC Board Production Line

300KW PVC Celuka Foam Board Making Machine WPC Board Production Line

Brand Name: AORUI
Model Number: SJSZ80x156
MOQ: One set
Price: Negotiable
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month
Detail Information
Place of Origin:
China
Certification:
CE UL CSA
Model Number:
SJSZ80X156
Condition:
New
Automatic Grade:
Fully Automatic
Screw Design:
Double Screw
Warranty Time:
1 Year
Port Of China:
Qingdao Port
Plastic Processed:
PVC WPC
Brand Name:
Aorui
Place Of Original:
China
Certificate:
CE Certificate
Packaging Details:
Fumigation wood, film,pallet,etc or according to customer’s requirement.
Supply Ability:
10 Sets per month
Highlight:

PVC Board Making Machine 300KW

,

Celuka Foam Board Extrusion Line

,

WPC Board Plastic Extruder Machine

Product Description

PVC Celuka Foam Board Making Machine , WPC Board Production Line , Plastic Board Extrusion Line



Quick detail:



1.WPC PVC furniture board extrusion machine is also names WPC PVC foam board extrusion machine, this machine adopts conical twin screw extruder.



2.Which can produce 1220mm width, 3-30mm thickness wpc pvc board. this wpc pvc board can be used in many fields.



Description:

1.It is composed of extruder, three-roller calender, traction,rewinding and electric control box.

2.The screw, material barrel, screenchanger, measurement pump, die head are made of high quality alloy steel (38CRMOAIA) with high hardness, strong corrosion resistance and long operating life after nitrogen treatment.

3.The die head adopts hanger-type branch pipe decreasing-style construction, so the flow passage is convenient for material solution to flow without stagnation and the thickness of products will be smooth and even.

4.Insiede the calender the helical flume and cycle water cooling bring a perfect cooling effect.

5.The temperatures of die head, screen changer the measurement pump and the material barrel are separately controlled.

6.All drive system runs synchronously.



Technical parameters:



Product size 1220mm width, length can cut at any length
Product thickness 3-30m
Product application Furniture board, kitchen cabinet, formwork
Density 0.45-0.8ton/m3
Finishing surface Laminating, hot stamping, printing, painting, embossing
Production capacity 400 kg per hour
Installation power 300KW





Application:

This WPC board making extrusion line uses PVC and wood fiber as raw material, by semi-crust or full-crust foaming technology, to make WPC solid boards/panels with low density for 0.45-0.8gram/cm3, the WPC foam boards are widely used for making furniture panel, construction formwork, partition wall



Machine advantages:

The lines have the advantages of well-planned layout, compact in structure, fine in performance such as homogenous plasticization, high output and long service life.

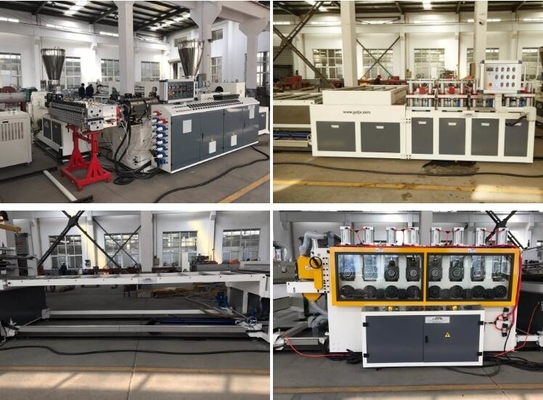

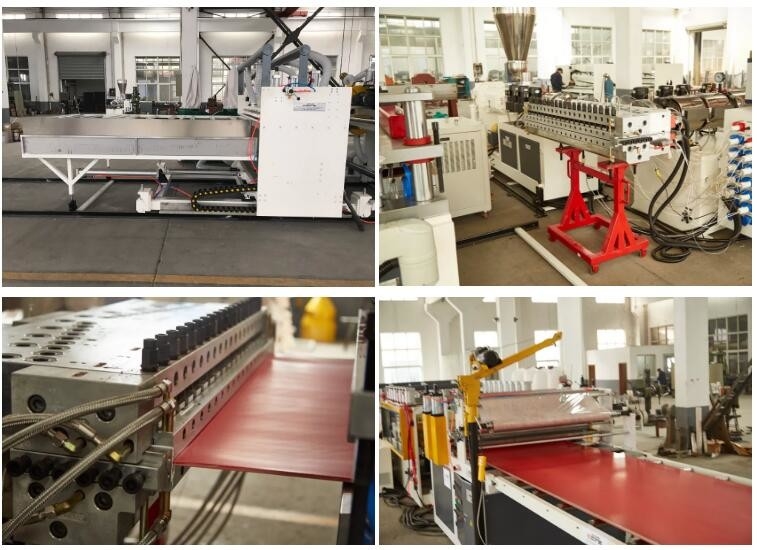

Machine display:

300KW PVC Celuka Foam Board Making Machine WPC Board Production Line 0300KW PVC Celuka Foam Board Making Machine WPC Board Production Line 1
