Brand Name: | AORUI |
Model Number: | SJSZ80x156 |
MOQ: | One set |
Price: | Negotiable |
Payment Terms: | T/T L/C |
Supply Ability: | 10 Sets per month |
PVC Foam Board Manufacturing Machine , Plastic WPC Board Extrusion Machine , Plastic Board Extrusion Line
Description:
1. PVC/WPC foam sheet/board extrusion line consist of conical twin screw extruder , mould , calibration forming unit , conveyor cooling rollers , side cutting , haul off , cutting unit , conveyor unit , auto length calculator and storage table . the
whole line has the advantages of reasonable structure and high performance . frequency convertor is adopted for the extruder for electricity saving .
2. Screw inside adopt auto temperature controlling , screw and barrel adopt for special designed super –conical structure and the material adopt 38CrMoAiA. Extruding capacity increase 30% power save can be 20-30%. Long using life, high capacity and stable working as well as supper plasticizing are the main characters of the line. .
3. As an pioneer of PVC foam board extrusion technology, we have exported our production lines many countries customers, withour help of installation and good service ,our clients are producing best quality PVC foam board in local market
4. PVC celuka foam machinery is used to produce rigid PVC foam board used for cabinet, furniture, decoration and so on. the size of PVC foam board: width can be 900*2050, thickness can be :3-20mm
5. multiple use of the machine: the machine can use PVC raw material to make PVC foam board, also can use WPC material to produce wood plastic foam board.
6. we have serious and high level engineer teams, we don’t make cheap and weak machine. we only make high quality machine, each of our machine are our representative products. We want to win you by our quality and service .
Technical parameters:
PVC/WPC Foam Plate/ Board/Sheet Production Line | |||
Model
|
GYF1220-A
|
GYF1220-B
|
GYF1500-C
|
Extruer
|
GSZ80/156
|
GSZ80/173
|
GSZ92/188
|
Max.output(kg/h)
|
350
|
600
|
650
|
Die width(mm)
|
1320
|
1320
|
1550
|
Production width(mm)
|
1220
|
1220
|
1400
|
Power(kw)
|
146
|
170
|
205
|
Application:
This WPC board making extrusion line uses PVC and wood fiber as raw material, by semi-crust or full-crust foaming technology, to make WPC solid boards/panels with low density for 0.45-0.8gram/cm3, the WPC foam boards are widely used for making furniture panel, construction formwork, partition wall
Machine advantages:
The lines have the advantages of well-planned layout, compact in structure, fine in performance such as homogenous plasticization, high output and long service life.

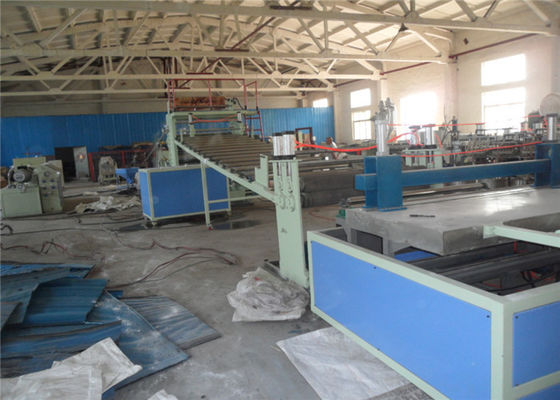

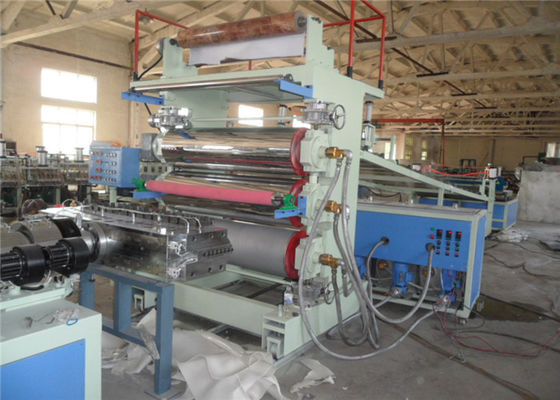

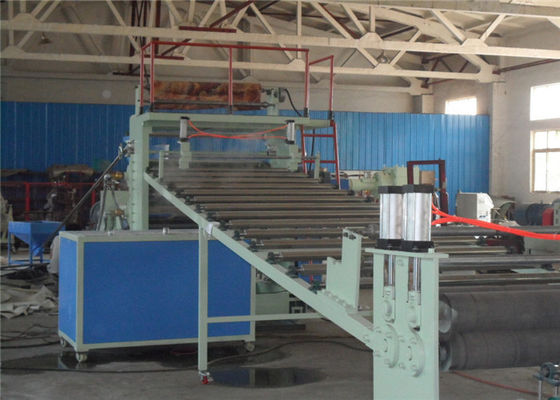

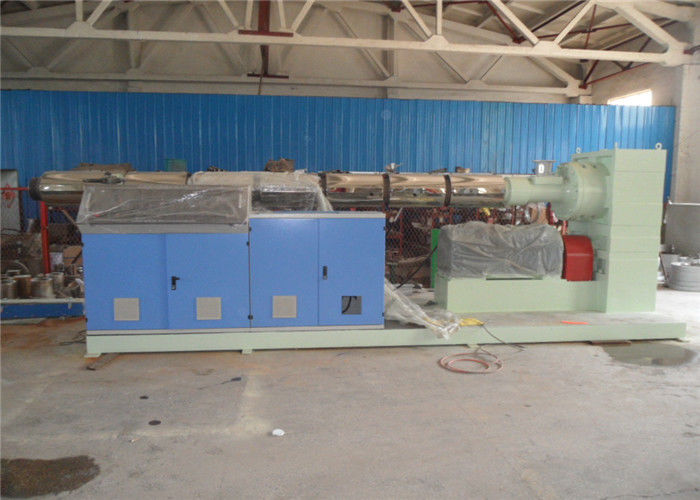

Machine display:
