Product Details:
|
| Brand Name: | Aorui | Plastic Processed: | PP PE |
|---|---|---|---|
| Condition: | New | Screw Design: | Single Screw |
| Place Of Original: | China | Voltage: | 380V 50HZ |
| Warranty Time: | 1 Year | Inverter Brand: | ABB |
| Application: | PE Pipe | Automatic Grade: | Fully Automatic |
| High Light: | Underground Water Pipe Production Line,Automatic PE Pipe Making Machine,PE Plastic Pipe Extrusion Line |
||
Plastic Pipe Extrusion Line , PE Pipe For Underground Water Supply, PE Pipe Production Line
Quick details:
1.Special single screw extruders for polyolefin, having high extruding velocity and effective plasticization.
2.Separation mixing screw specialized for polyolefin.
3.Specially designed 2-3 co-extruding die, reasonable channel, smooth outside and inside wal, and little internal stress.
4.Producing pipe limit 20mm to 160mm, manufacture velocity up to 15m/min.
5.May be used to produce HDPE sillicon core tube, ordinary PP-R ,PE, PEX ad PE-RT pipes.
Description of PE PP PPR Pipe Machine:
PE pipe extrusion machine can make all kind of plastic pips.
Application: All kind of Plastic pipes such as PVC pipe, PE/PP pipe, PPR pipe, PERT pipe etc.
Pipe Machine capacity and relevant parameters of the Pipe machines :
| Diameter range(mm) | Extruder model | Max.Capacity(kg/h) | Max.lineal speed(m/min.) | Extrusion power(KW) |
| 20-63 | ASS65/33 | 220 | 12 | 55 |
| 20-63 | ASE60/38 | 460 | 30 | 110 |
| 20-63Dual | ASE60/38 | 460 | 15*2 | 110 |
| 20-110 | ASS65/38 | 220 | 12 | 55 |
| 20-110 | ASE60/38 | 460 | 30 | 110 |
| 20-160 | ASE60/38 | 460 | 15 | 110 |
| 50-250 | ASE75/38 | 600 | 12 | 160 |
| 110-450 | ASE90/38 | 850 | 8 | 250 |
| 250-630 | ASE90/38 | 1050 | 4 | 280 |
| 500-800 | ASE120/38 | 1300 | 2 | 355 |
Application of PE Pipe Extrusion Machine:
PE Plastic Pipe Extrusion Line is mainly used in the production of agricultural drainage, water supply and cable conduit purposes. The unit consists of single extruder machine, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless/non-dust cutter) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer ink-jet printer, etc. to achieve the production and manufacture of high-grade tubing.

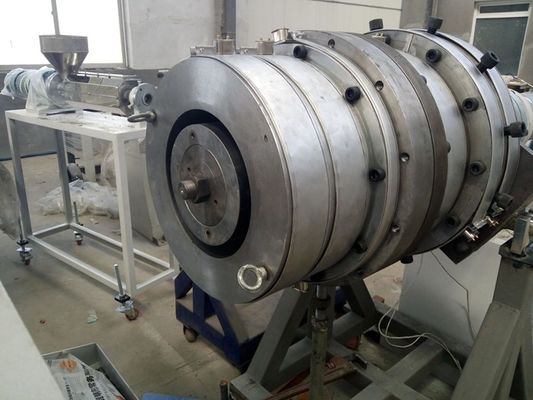

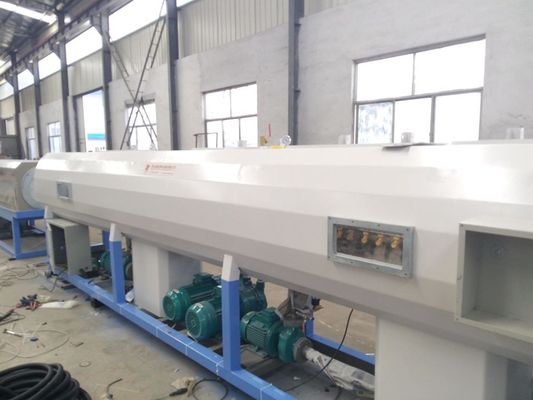

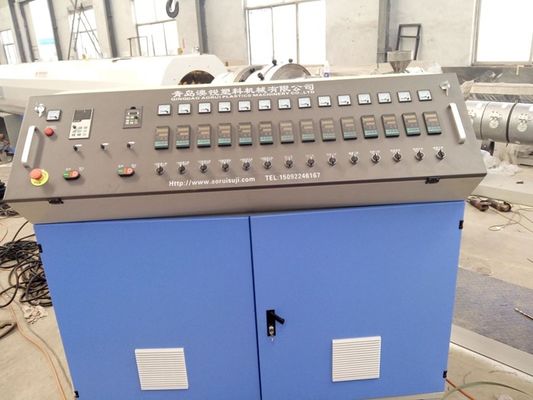

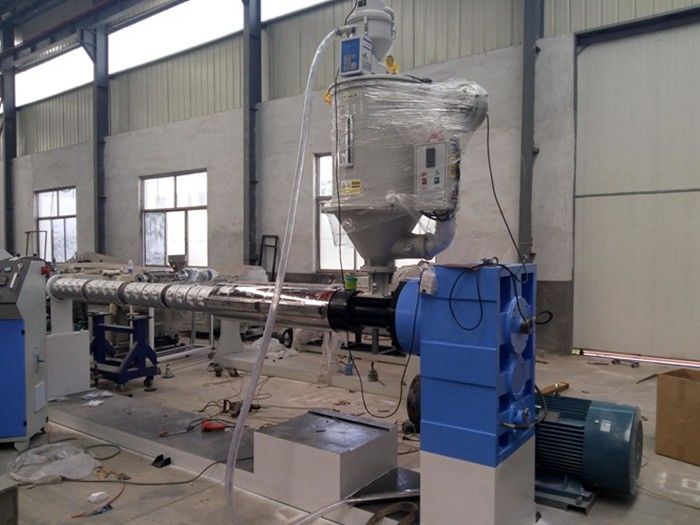

Machine display:
Tag: Plastic pipe production line hdpe pipe extrusion machine pe pipe production line
