PE Water Pipe Production Line Single Screw Three Later Pipe Extrusion Line

PE Water Pipe Production Line Single Screw Three Later Pipe Extrusion Line

Brand Name:	AORUI
Model Number:	SJ75/33 SJ90/33 SJ120/33
MOQ:	1 set
Price:	USD
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10 SETS PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE Certificate

Brand Name:

Aorui

Place Of Original:

China

Application:

Pe Pipe

Condition:

New

Screw Material:

38Cr Moaia

Screw Design:

Single Screw

Voltage:

380V 50HZ

Warranty Time:

1 Year

After-sales Service:

Engineer Availiable To Service

Automatic Grade:

Fully Automatic

Packaging Details:

Regular package

Supply Ability:

10 SETS PER MONTH

Highlight:

PE Water Pipe Production Line

Three Later PE Pipe Extrusion Line

PE Pipe Single Screw Extruder Machine

Product Description

PE Water Supply Pipe Production Line , Single Screw Extruder PE three Later Pipe Extrusion Line

Quick details:

1.The One or Three Layer PPR HDPE LDPE PE Drip Irrigation Water Supply Energy Gas Pipe Production Line Plastic Pipe Extrusion Line extruder combination of spiral feeding barrel and separate screw design,it guarantees a high plasticizing rate and excellent melt uniformity.

2..We use water-cooled air conditioner,it ensure electric components work in constant temperature and humidity,which makes them more stable and get longer life time

3.This One or Three Layer PPR HDPE LDPE PE Drip Irrigation Water Supply Energy Gas Pipe Production Line is composed by Single screw extruder,Died head,Vacuum calibration tank ,Cooling tank, Haul-off machine ,Cutter and stacker.

Description pe pipe extrusion line:

1.Production process:

Raw material+color masterbatch---mixing---vacuum feeding---material drying---single screw extruder---color line
extruder---spiraling co-extrusion die---calibration sleeve---vacuum calibration tank---spraying cooling tank---haul-off
machine---cutting machine---stacker---checking---packing.

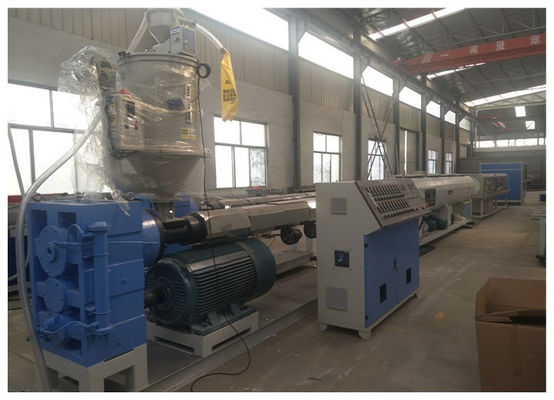

2.Extruder:

It adopts high output and excellent mixing screws with high efficiency, forced reverse feeding section which is a spiral slot, as well as a high speed and low voice reduction box with hard tooth surface, the extruder guarantees high output and relatively low energy consumption.

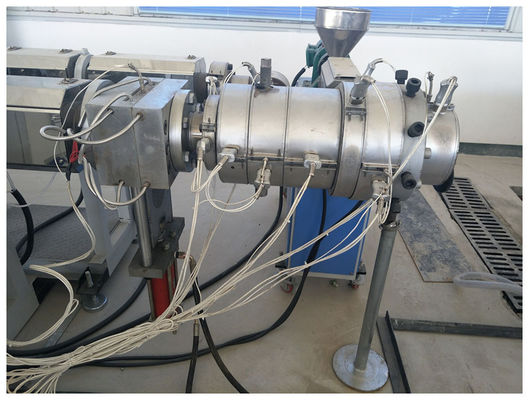

3.Mould:

It adopts spiral and composite die head, which ensures easy adjustment, even discharging and quality products. The extruder also has line-marking fuction.
4.Vacuum sizing and cooling device
Adopting special designed sizing sleeve and stainless steel water tank, accurate sizing, prompt cooling and high efficiency are fulfilled.
5.Tractor
The resonable designed multi-clawers tractor makes the interface between the pipe and the pedrail more even. The frequency conversion ensures stable traction speed.

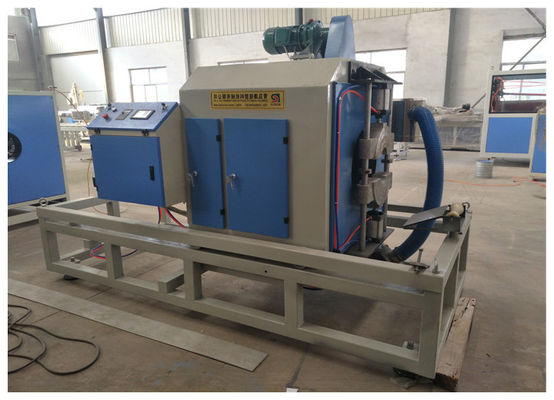

6.Cutting machine and stacker :
non scrap cutting or planet cutting mode is available, ensuring plane and clear pipe cross-section.

Technical Specifications:

Item/Model	ALD63	ALD110	ALD160	ALD250	ALD315	ALD630	ALD800
Diameter range (mm)	16-63	16-110	50-160	50-250	110-315	315-630	400-800
Claw number of haul off (pcs)	2	2	2	3	4	6	8
Pulling force (KN)	6	8	11	20	30	40	50
Pulling speed (m/min.)	15	12	8	9	4	2	2

Application of PE Pipe Extrusion Machine:

Water supplying and transportation pipe
Gas distribution and transportation pipe

Competitive advantages of pe pipe making machine:

PE PE gas and water supplying pipes possess features of heat resistance,anti-aging, strong mechanial strength , endurance to environment stress fracture and squirm-resistance etc. And they are favorable product in gas transpotation between cities and in water supply projects of urban areas.

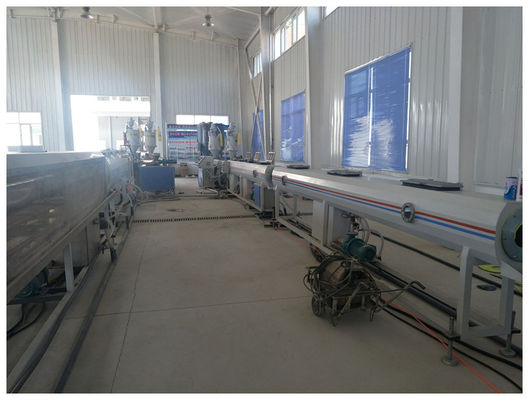

Machine display:
PE Water Pipe Production Line Single Screw Three Later Pipe Extrusion Line 0
