Product Details:
|
| Brand Name: | Aorui | Plastic Processed: | PP PE |
|---|---|---|---|
| Screw Design: | Single Screw | Screw Material: | 38Cr Moaia |
| Voltage: | 380V 50HZ | Inverter Brand: | ABB |
| Place Of Original: | China | Output: | 150-300kg |
| Certificate: | CE Certificate | Application: | Pipe |
| High Light: | Single Screw PE Pipe Making Machine,HDPE PE Pipe Making Machine,Natural Gas Pipe Extrusion Line 110mm |
||
PE Pipe Making Machine , 20-110mm PE HDPE Pipe Extrusion Line , HDPE Natural Gas Pipe Machine
Quick details of pe pipe making machine:
1.Good hygienic performance: no heavy metal salt stabilizer is added during PE pipe processing, the material is non-toxic, no scaling layer, and no bacteria breeding, which solves the hidden danger of secondary pollution of urban drinking water.
2. Excellent corrosion resistance: Except for a few strong oxidants, it can withstand the erosion of a variety of chemical media; no electrochemical corrosion.
4. Better impact resistance: PE pipe has good toughness and high impact resistance, and heavy objects directly
pass through the pipe, which will not cause the pipe to be broken.
Description of pipe extrusion machine:
1.Flow chart:
Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mold→ vacuum calibration and cooling chamber → water cooling chamber → haul off machine → cutting machine → stacker
2.This machine is mainly used to produce agricultural/water supply/drainage pipes, architectural water supply/drainage pipes, cable laying pipes etc. This PVC pipe extrusion line adopts advanced design concept to ensure the efficient extrusion of PVC powder, combined with the unique concept of plasticization screw design to ensure uniformity of plastic extrusion, high capacity production.
Technical Specifications:
|
Model
|
Pipe range(mm)
|
Screw diameter(mm)
|
Motor power(kw)
|
Molding power(kw)
|
Rewinder power(kw)
|
Output(m/min)
|
|
SJ45
|
9-32
|
45
|
11
|
1.5
|
1.5
|
3-12
|
|
SJ65
|
20-50
|
65
|
15
|
4
|
3
|
1.5-6
|
|
SJ75
|
50-110
|
75
|
30
|
4
|
4
|
1.2-5
|
|
SJ90
|
75-160
|
90
|
37
|
5.5
|
5.5
|
1-5
|
PP PE water Pipe Production Making Machine is mainly suitable for making PP,PE pipes,with various diameters and thickness, which are used in various fields such as water supply system, industrial water conveying system, compressed air transportation, etc.
Competitive price:
2- Adopting special screw and barrel, good effect
3- Adopting compound spiral engine head, effectively eliminate memory function of the material
4- Easy operate and need less worker
5- Convenient for maintaining

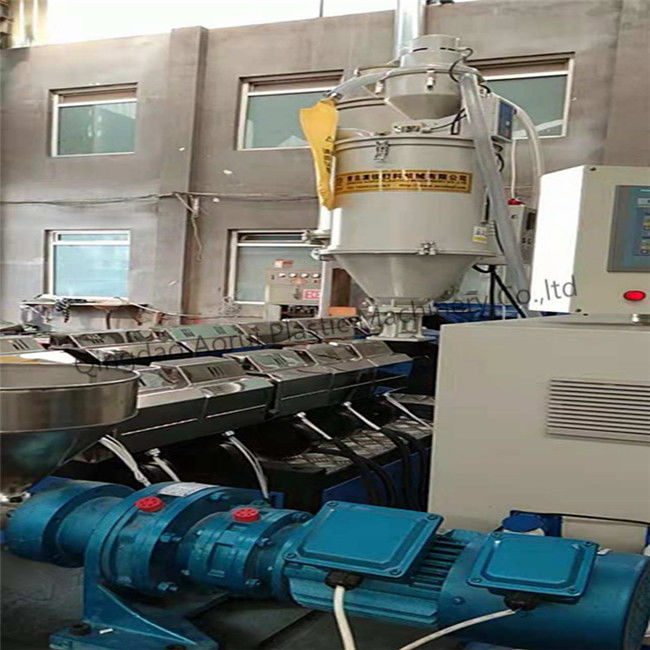

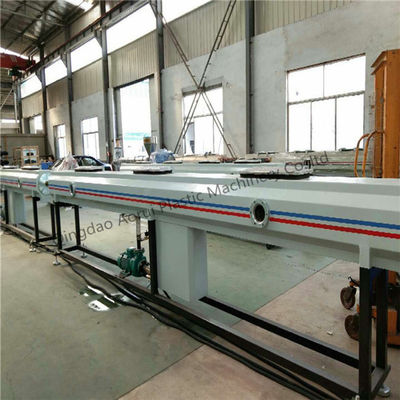

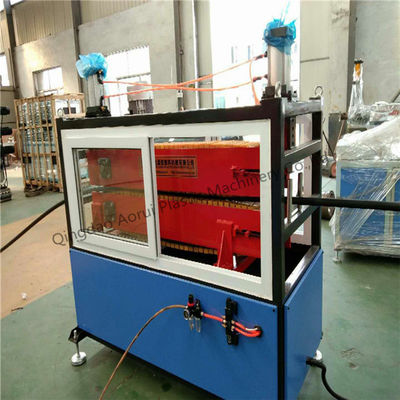

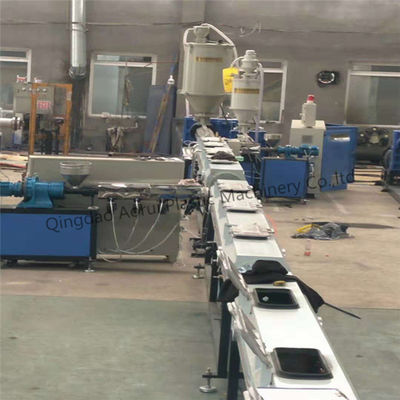

Machine display:
Tag: Plastic pipe making machine hdpe pipe extrusion machine pe pipe production line
