Single Screw Three Layer Plastic Pipe Extrusion Line PE HDPE LDPE Pipe Making Machine

Single Screw Three Layer Plastic Pipe Extrusion Line PE HDPE LDPE Pipe Making Machine

Brand Name:	AORUI
Model Number:	SJ75/33 SJ90/33 SJ120/33
MOQ:	1 set
Price:	USD
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10 SETS PER MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE Certificate

Application:

PP PE Pipe

Plastic Processed:

PP PE PPR

Screw Design:

Single Screw

Condition:

New

Screw Material:

38Cr Moaia

Place Of Original:

China

Voltage:

380V 50HZ

Warranty:

1 Year

Automatic Grade:

Fully Automatic

Certificate:

CE Certificate

Packaging Details:

Regular package

Supply Ability:

10 SETS PER MONTH

Highlight:

HDPE LDPE Pipe Making Machine

Three Layer PE Pipe Extrusion Line

Single Screw Plastic Pipe Extrusion Line

Product Description

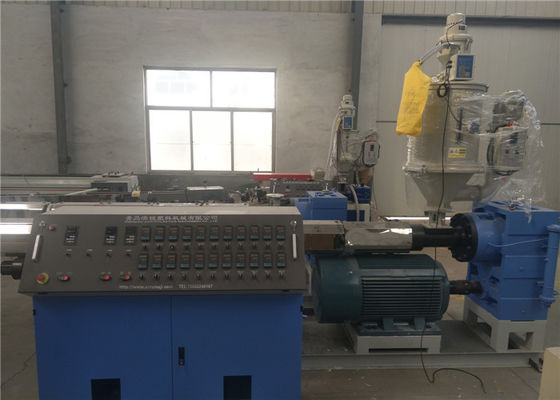

Single Screw Extruder Three Layer PE Pipe Extrusion Line , PE HDPE LDPE Pipe Making Machine

Qucik details of pe pipe making machine:

1.HDPE Single Screw Extruder, with different die head, and downstream machines, which can produce different size of plastic pipe, diameter ranging from 12mm to 1600mm.

2.SJ series single-screw plastic extruder is for plastic extruder molding equipment, change different type dies (female and male) and match assistant machine, can process soft, hard polyvinyl chloride, polyethylene, polypropylene and etc raw material to pipe, stick, blowing film draw line, blowing bottle and wrap wire, cable, insulation. This machine is special for PE, PP high-speed extruder, suitable for high-speed extruding pipe, sheet and etc product.

Description of pe pipe extrusion machine:

PE/PP pipe extruder

PE pipe extrusion line provides the pipes for feed-water piping, like Tap-water, hot water supply pipes for civil building, farmland irrigation, ground source heat pump pipeline, siphon rainwater drainage system, etc.

Mould

Different kinds of diameter the mould is different. Customized mould is acceptable.
Can do one strand or two strand output

Single Screw Three Layer Plastic Pipe Extrusion Line PE HDPE LDPE Pipe Making Machine 1

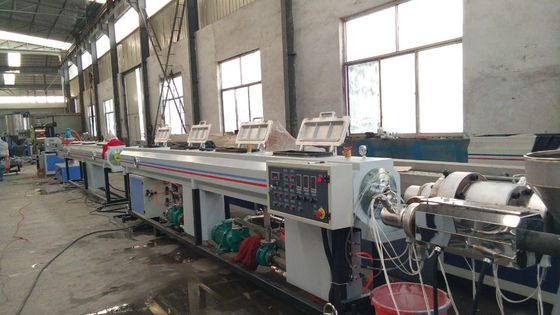

Calibration Table

Vacuum Diameter Table
There are two kinds of cooling:
1. Cooled by submerged in water
2. Cooled by sprayed water

Single Screw Three Layer Plastic Pipe Extrusion Line PE HDPE LDPE Pipe Making Machine 2

Cutting machine
There are two kinds of cutting machine for choosing:
1. Saw Blade cutting machine
2. Planetary cutting machine

1.Planetary cutting table no noisy and dust-free. Double Control Length system guaranteed cutting accuracy.

Tilting Table

Technical Specifications:

Model number	16/63	20/110	50/160	75/250	110/315	200/450	315/630
Pipe diameter	16-63mm	20-110mm	50-160mm	75-250mm	110-315mm	200-450mm	315-630mm
Max output	150kg/h	200kg/h	350kg/h	350kg/h	350kg/h	450kg/h	850kg/h
Production rate	1-15m/min	1.2-12m/min	0.6-8m/min	0.5-4m/min	0.4-3.7m/min	0.3-3m/min	0.2-2m/min
Extruder model	SJ-65/30	SJ-65/33	SJ-75/33	SJ-75/33	SJ-75/33	SJ-90/33	SJ-120/33
Installed power	85kw	110kw	125kw	180kw	260kw	325kw	480kw
Center height	1000mm	1000mm	1000mm	1000mm	1100mm	1100mm	1200mm
Installation area	35x3.0x2.0m	383.12.2m	383.12.2m	403.22.4m	423.22.4m	523.32.6 m	603.52.8m

Machine competitive advantages:

●Special screw barrel blanking can greatly improve the extrusion capacity

●Accurate temperature control system ensures the plasticization performance of materials

●The unique screw design achieves better plasticizing effect and good product quality

●Exquisite high torque gearbox for more stable operation

●H-shaped steel welded frame reduces the vibration of the machine
