Product Details:
|
| Condition: | New | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Voltage: | 380V 50HZ | Warranty Time: | 1 Year |
| Application: | Plastic Pipe | Screw Design: | Single Screw |
| Brand Name: | Aorui | Certificate: | CE Certificate |
| Screw Material: | 38Cr Moaia | Inverter Brand: | ABB |
| High Light: | Automatic PE Pipe Extrusion Machine,Single Screw PE Pipe Production Line,63mm PE Pipe Making Machine |
||
PE Pipe Production Line , High Automatic PE Pipe Making Machine , 16-63mm PE Pipe Extrusion Machine
Qucik details :
1.This Extrusion Line can be used for different diameter PE Pipe production which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on.
2.So, this pipe production line is a preferred for ductwork system of gas, water pipe and agricultural irrigation pipe between city and village.
Description of pe pipe extrusion machine:
1.HDPE Plastic Water Supply Pipe Making Machinery adopt high speed extruder with high efficient,energy saving. The extruder have water recycled inside with metering material loading device;
2.The single-screw extruder and the traction machine adopt imported AC frequency conversion speed regulating device, and the vacuum pump and traction motor are all made of high quality products.
3.The tractor is driven by two claws, three claws, four claws, six claws, eight claws, ten claws, and twelve claws. Available with chipless cutting, saw blade cutting or planetary cutting, the unit has reliable performance and high production efficiency.
Technical Specifications:
|
Pipe Range (mm)
|
16-63
|
20-110
|
75-160
|
90-250
|
110-315
|
160-450
|
315-630
|
500-800
|
|
Extruder
|
65/30
|
65/33
|
75/30
|
75/33
|
90/33
|
90/33
|
120/33
|
150/33
|
|
Motor power (KW)
|
30/37
|
55/75
|
75/90
|
90/110
|
132
|
160
|
280
|
335
|
|
Capacity (Kg/h)
|
60-130
|
100-150
|
200-300
|
220-350
|
300-400
|
350-450
|
500-600
|
700-900
|
|
Max. Speed
|
15m/min
|
10m/min
|
8m/min
|
6m/min
|
3m/min
|
1.2m/min
|
1.0m/min
|
0.8m/min
|

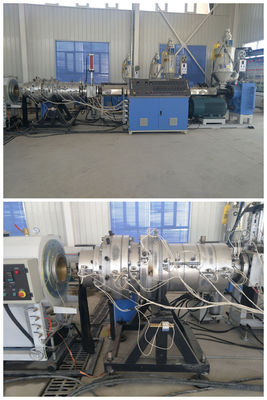

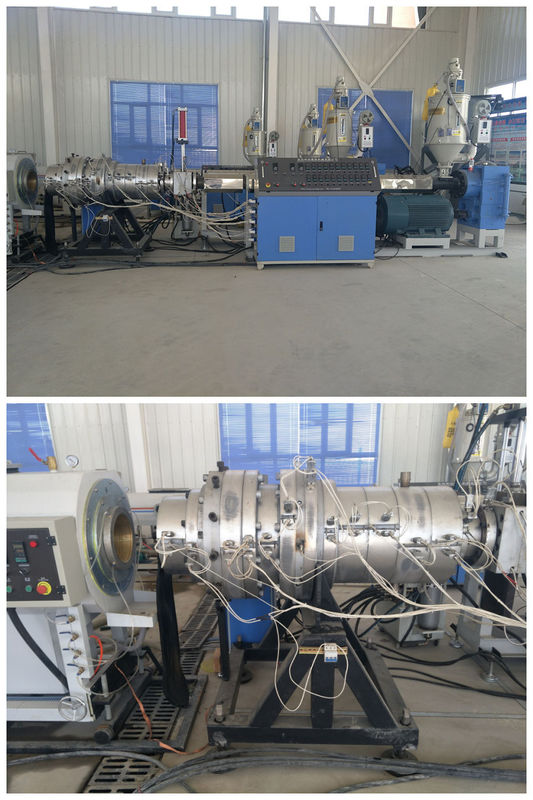

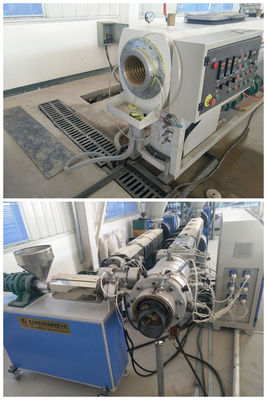

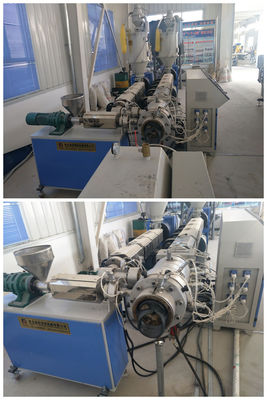

Machine dispaly:
