Conical 16mm Plastic PVC Pipe Extrusion Line 200kgs/H Water Pipe Making Machine

Conical 16mm Plastic PVC Pipe Extrusion Line 200kgs/H Water Pipe Making Machine
Conical 16mm Plastic PVC Pipe Extrusion Line 200kgs/H Water Pipe Making Machine Conical 16mm Plastic PVC Pipe Extrusion Line 200kgs/H Water Pipe Making Machine Conical 16mm Plastic PVC Pipe Extrusion Line 200kgs/H Water Pipe Making Machine Conical 16mm Plastic PVC Pipe Extrusion Line 200kgs/H Water Pipe Making Machine

Large Image :  Conical 16mm Plastic PVC Pipe Extrusion Line 200kgs/H Water Pipe Making Machine

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE Certificate
Model Number: SJSZ65X132
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 35 days
Payment Terms: 30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability: 10 Sets per month

Conical 16mm Plastic PVC Pipe Extrusion Line 200kgs/H Water Pipe Making Machine

Description
Condition: New Automatic Grade: Fully Automatic
Screw Design: Double Screw Warranty Time: 1 Year
Certificate: CE Certificate Place Of Original: China
Temperature Controller: Omron Screw Material: 38Cr Moaia
Plastic Processed: PVC Pipe Diameter: 16mm-800mm
High Light:

Conical PVC Pipe Extrusion Line

,

16mm Plastic PVC Pipe Extrusion Line

,

200kgs/H PVC Pipe Making Machine

Plastic PVC Pipe Extrusion Line , Plastic Water Pipe Production Line , PVC Pipe Making Machine

Quick detail:



1.PVC pipe extrusion line is used to produce pvc pipe with diamater from 16 to 800mm, which are effective,safe



2.Capacity: Conical twin-screw extruder, suitable for process PVC powder with high capacity
3.Diameter: We have very successful production experience.Auxiliary machine closely meet customer specifications. Nice apperance, automatic control and stable running performance.



Description of PVC Pipe Production Line:



1.Production Flow:
Material →Heating Cooling Mixer →Material Feeding →Conical Twin Screw Extruder →Extrusion Mould & calibrator → vacuum Calibration Cooling Tank → (Spray Cooling Tank) →Printer → Haul-off Unit →cutter →stacker

2.PVC Pipe Diameter Range:φ16mm-φ800mm
The Vacuum Calibration Tank will be equipped with different quantity and power of water pump and vacuum pump for different pipe diameter
For extruder Temperature Control system,Digital PLC control or Manual Temperature Control Meter
Caterpillar Haul-off unit with two caterpillar, threecaterpillar, four caterpillar,six caterpillar,eight caterpillar design for different range of pipe diameter haul-off
Guillotine cutter&Planetary cutter can be choosed according to different diameter pipe.
Equip with special mould and other device,it can produce inner wall sprial pipe and Inner wall hollow pipe and three layer pipe.
Easy Operation,Reliable performance,High Extrusion Efficiency,Easy Maintenance



Technical parameters:

PVC PIPE EXTRUSION LINE
MODEL NO. KPM63 KPM160 KPM250 KPM315 KPM450 KPM630 KPM800
production range (mm) 16-63 20-160 75-250 110-315 110-450 315-630 400-800
extruding capacity (kgs/h) 120-220 150-250 200-330 280-50 400-500 600-700 800-1000
screw diameter (mm) 65/132 65/132 80/156 80/156 92/188 92/188 110/220
driving motor AC+VF 30 kW 37 kW 55 kW 110 kW 110 kW 132 kW 172 kW
heater capacity 18.5kw 20kw 40kw 49kw 60kw 60kw 84kw
temperature control (points) 4 5 5 7 7 8 7
cooling system vacuum pump 4-7.5kw / water cooling system / stainless steel
haul-off unit 2 tracks 4 tracks 6 tracks 8 tracks
driving motor AC+VF 3kw 3kw 4kw 4kw
cutting unit common cutting planetary cutting
driving motor 1.5kw 4kw 4kw 5kw
stacking unit air cylinder system
weight (tons) 7-8 7-8 9-10 10-11 12-14 14-16 20-22
used floor space l*w*h (m) 25*2.6*3.0 28*3.0*3.2 36*3.5*3.2 40*3.5*3.2 42*3.5*3.2 45*3.5*3.5 60*4.0*3.5


Application of pvc pipe machine:

The PVC Pipe production line is mainly used in the area of agricultural water supply system, architectural water supply system(water supply and drainage pipe), pavement of cables and as well as different diameter and thickness of PVC Pipes.



Machine Competitive Advantage:
1.Long service life
2.Easy to operate
3.Spare parts for free

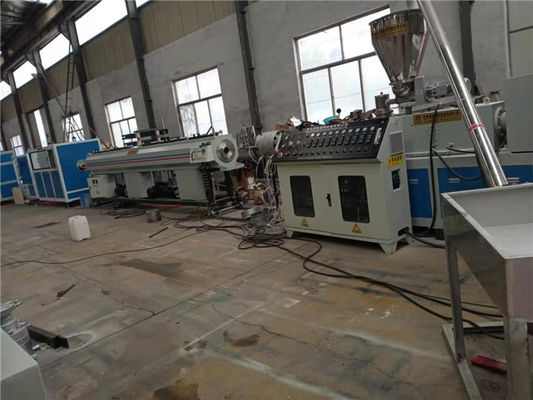

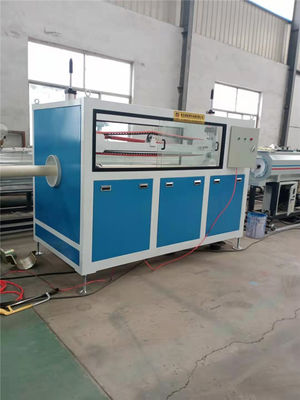

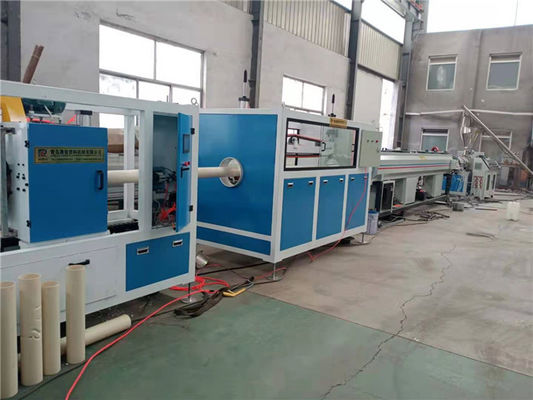

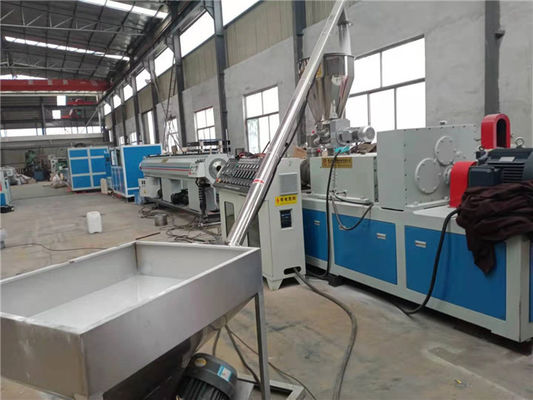

Machine pictures:
Conical 16mm Plastic PVC Pipe Extrusion Line 200kgs/H Water Pipe Making Machine 0
