Product Details:
|
| Brand Name: | Aorui | Screw Design: | Double Screw |
|---|---|---|---|
| Screw Diameter: | 65 | Place Of Original: | China |
| Screw Material: | 38Cr Moaia | Voltage: | 380V 50HZ |
| Warranty: | 1 Year | Condition: | New |
| Automatic Grade: | Fully Automatic | Plastic Processed: | Pvc Resin |
| High Light: | High Speed PVC Pipe Extrusion Line,800mm PVC Pipe Extrusion Machine,Double Screw PVC Pipe Extrusion Machine |
||
High Speed PVC Pipe Plastic Extrusion Line , Double Screw PVC Pipe Extrusion Machine
Quick detail:
1.PVC Pipe Diameter Range:φ16mm-φ800mm
2.The Vacuum Calibration Tank will be equipped with different quantity and power of water pump and vacuum pump for different pipe diameter
For extruder Temperature Control system,Digital PLC control or Manual Temperature Control Meter
3.Caterpillar Haul-off unit with two caterpillar, threecaterpillar, four caterpillar,six caterpillar,eight caterpillar design for different range of pipe diameter haul-off
4.Guillotine cutter&Planetary cutter can be choosed according to different diameter pipe.
5.Equip with special mould and other device,it can produce inner wall sprial pipe and Inner wall hollow pipe and three layer pipe.
Easy Operation,Reliable performance,High Extrusion Efficiency,Easy Maintenance
Description of pvc pipe making machine:

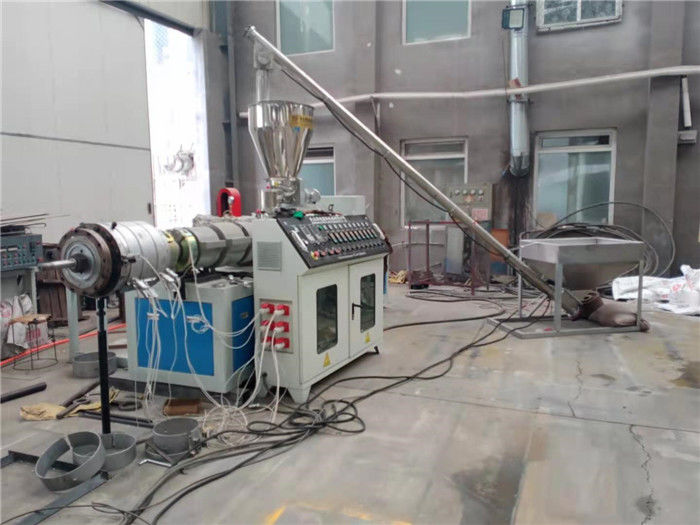

1.Twin screw extruder
The machine is equipped with a quantitative feeding device to match the extrusion quantity and ensure the stable extrusion of the products.
2.Extrusion Mold
It is the construction part of pipe forming

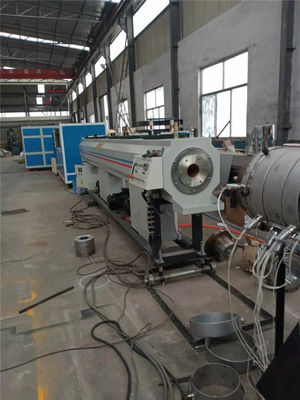

3.Vacuum forming machine
For pipe shaping and cooling,equipped with vacuum system and water circulation system for shaping and cooling,stainless steel box,circulating water spray cooling.
4.Haul off machine
Used for continuous and automatic extraction of cooled and hardened pipes from the nose,frequency conversion speed regulation.

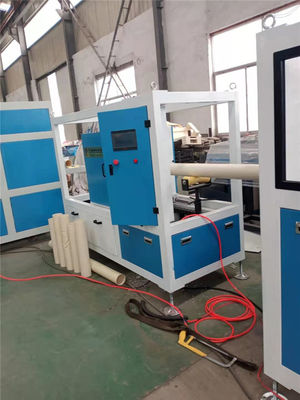

5.Cutting machine
The cutting machine takes the fixed length switch signal as the instruction,completes the whole cutting process,and keeps synchronization with the pipe operation during the cutting process
Technical parameters:
|
Model
|
SJZ45/100
|
SJZ51/105
|
SJZ55/110
|
SJZ65/132
|
SJZ80/156
|
SJZ92/188
|
SJZ110/220
|
|
Screw Speed/rpm
|
34.7
|
34.7
|
34.7
|
34.7
|
34.7
|
34.7
|
34.7
|
|
Motor/kw
|
15
|
18.5
|
22
|
37
|
55
|
110
|
160
|
|
Output(kg/h)
|
60/80
|
80/120
|
100/150
|
180/220
|
300/400
|
400/600
|
1200/1400
|
|
Center height/mm
|
1050
|
1050
|
1050
|
1050
|
1050
|
1100
|
1150
|
|
Weight/kg
|
2500
|
3000
|
3500
|
4000
|
5500
|
8000
|
12500
|
Machine Competitive Advantage:
1.Long service life
2.Easy to operate
3.Spare parts for free

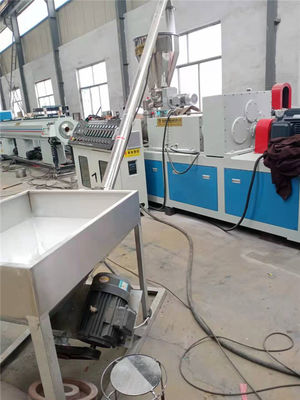

Machine pictures:
