Product Details:
|
| Capacity: | 100-1000KG/H | Weight: | According To The Capacity |
|---|---|---|---|
| Pelletizing Type: | Water Ring Cutting Or Strand Noodle Cutting | Motor: | Siemens For Plastic Granulator |
| Frequency Convertor: | ABB/Fuji Brand | Power: | 50-350KW For Plastic Granulator |
| Delivery Detail: | 30 Working Days | Certificate: | CE,ISO |
| Packaging Detail: | Film Or Wooden | Brand: | AORUI |
| High Light: | Plastic Recycling Machine,Plastic Pelletizing Machine |
||
PP Two Step Recycled Spaghetti Plastic Granules Machine / Raffia Pellet Extruder
QUICK DETAIL :
1.waste pe pp
2.good quality with competitive price
3.100-1000kg/hour
4.CE&ISO
Description:
recycling granulating machine is special equipment for the PE PP film recycling granulating, it equipped with comacting machine which cound pre- compact the film into smaller granules, then easily feed into screw barrel of extruder, its efficiency is high and can improve production capacity and save labour cost.
it has two vacuum exhuasting mouth on extruder barrel which can fully vent the moisture in the material and hence the final granule quality will be very perfect.

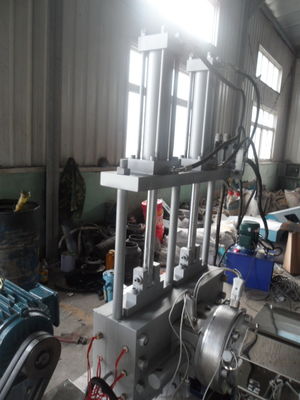

at the end of screw barrel, it equipped with double post fast speed hydraulic non -stop screen changer which can effetively filt out the dirty in the plastic melt.
the pelletizing adopts water flush pelletizing which is easier to operate, and the shape and appearance of granule is good.
Features
1.raw material:PE/PP waste film plastic
2.final product:PE/PP granules
3.output:150-500kg/h
4.cutting type:water ring and die face cutting
Applications:
1.Double step plastic granulator Machine is the successor to plastic master-sub granulator.
2. Double step plastic granulator is installed by "one line" shape, "right and left" shape and "T" shape, which is saving the work space.
3.This machine is different from waste plastic machine, such as PP, PE, HDPE. especially resolved the problem of high-density polyethylene granulation broken bars.
4.Double step plastic granulator is matched with plastic crusher and granular cutting machine. While the waste plastic materials through crushing and washing, could be put into extruder without drying. But the die head of machine could be electric screen changer or hydraulic screen changer.
5.Simple process, advanced technology, automatic temperature control, national energy-saving
patented heater, low power consumption, non-pollution, high degree of automation
Specifications:
|
Model |
Screw diameter |
L/D |
Screw rotation speed (r/min) |
Max. extruding |
Motor power |
Heating zone |
|
SJ-45 |
45 |
33:1 |
73 |
60 |
28/35 |
3 |
|
SJ-50 |
50 |
33:1 |
90 |
120 |
37/45 |
3 |
|
SJ-65 |
65 |
33:1 |
90 |
220 |
55/75 |
4 |
|
SJ-75 |
75 |
33:1 |
90 |
350 |
90/110 |
4 |
|
SJ-90 |
90 |
33:1 |
90 |
500 |
160/185 |
5 |
|
SJ-120 |
120 |
33:1 |
80 |
750 |
280/315 |
5 |
|
SJ-150 |
150 |
33:1 |
80 |
1000 |
355/385 |
5 |
Competitive Advantage:
1.granulate waste pe pp plasitic
2.good after-service
3.good quality
