Product Details:
|
| Application: | PVC Pipe | Plastic Processed: | Pvc |
|---|---|---|---|
| Screw Design: | Double Screw | Condition: | New |
| Screw Dimaeter: | 65/132 | Place Of Original: | China |
| Voltage: | 380V 50HZ | Brand Name: | Aorui |
| Warranty Time: | 1 Year | Inverter Brand: | ABB |
| High Light: | Sewer Pipe PVC Extrusion Line,Cool Water Pipe Extrusion Line 30 kW,150kgs/h PVC Pipe Making Machine |
||
Hot and Cool Water Pipe Production Line , PVC Pipe Making Machine , Sewer Pipe PVC
Quick detail:
1.Extruder Process
Description of pvc pipe making machine:
1.The PVC pipe extrusion machine is used to produce pipes with different diameters by replacing extrusion dies. It can produce every size of pipe in the area of the agricultural water supply system, architectural water supply system, pavement of cables, etc. It can produce the conduit pipe, pressure pipe, water pipe, drainage pipe, etc.
2.The PVC pipe extrusion machine is used to produce pipes with different diameters by replacing extrusion dies. It can produce every size of pipe in the area of the agricultural water supply system, architectural water supply system, pavement of cables, etc. It can produce the conduit pipe, pressure pipe, water pipe, drainage pipe, etc.
3.This machine group consists mainly of twin conical (parallel) screws extruder, vacuum calibrating tank, haul-off unit, cutting unit, tilter, etc. single screw extruder and haul-off unit have applied imported A/C inverter, both vacuum pump and driving motor have applied excellent products.
4.The drawing machine includes two-claw type, three-claw type, four-claw type, six-claw type, eight-claw type, etc. Saw cutting or planet cutting can be applied, it is additionally applied with length measuring meter and thickness increasing device, the property of machine group is reliable, the production efficiency is high. It has reached world advanced level.
Technical parameters:
| PVC PIPE EXTRUSION LINE | |||||||
| MODEL NO. | KPM63 | KPM160 | KPM250 | KPM315 | KPM450 | KPM630 | KPM800 |
| production range (mm) | 16-63 | 20-160 | 75-250 | 110-315 | 110-450 | 315-630 | 400-800 |
| extruding capacity (kgs/h) | 120-220 | 150-250 | 200-330 | 280-50 | 400-500 | 600-700 | 800-1000 |
| screw diameter (mm) | 65/132 | 65/132 | 80/156 | 80/156 | 92/188 | 92/188 | 110/220 |
| driving motor AC+VF | 30 kW | 37 kW | 55 kW | 110 kW | 110 kW | 132 kW | 172 kW |
| heater capacity | 18.5kw | 20kw | 40kw | 49kw | 60kw | 60kw | 84kw |
| temperature control (points) | 4 | 5 | 5 | 7 | 7 | 8 | 7 |
| cooling system | vacuum pump 4-7.5kw / water cooling system / stainless steel | ||||||
| haul-off unit | 2 tracks | 4 tracks | 6 tracks | 8 tracks | |||
| driving motor AC+VF | 3kw | 3kw | 4kw | 4kw | |||
| cutting unit | common cutting | planetary cutting | |||||
| driving motor | 1.5kw | 4kw | 4kw | 5kw | |||
| stacking unit | air cylinder system | ||||||
| weight (tons) | 7-8 | 7-8 | 9-10 | 10-11 | 12-14 | 14-16 | 20-22 |
| used floor space l*w*h (m) | 25*2.6*3.0 | 28*3.0*3.2 | 36*3.5*3.2 | 40*3.5*3.2 | 42*3.5*3.2 | 45*3.5*3.5 | 60*4.0*3.5 |
Application of pvc pipe machine:
PVC Pipe Extrusion Line/PVC Pipe Production Line/PVC plastic pipe production line is mainly used in the area of agricultural water supply system, architectural water supply system, pavement of cables, etc. as well as PVC pipe material of all sorts of pipe caliber and wall thickness.
Machine Competitive Advantage:
1.Replacement molds can produce pipes with different diameters.
2.With a set of molds to produce two or four tubes at the same time.Increased production efficiency.
3.More cost-effective production line.
4.Greatly saving the use of the factory space.
5.High energy efficiency.Just a set of power systems.
6.Can significantly reduce the number of operators.
7.Simple operation.

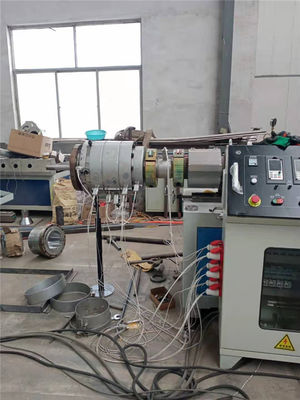

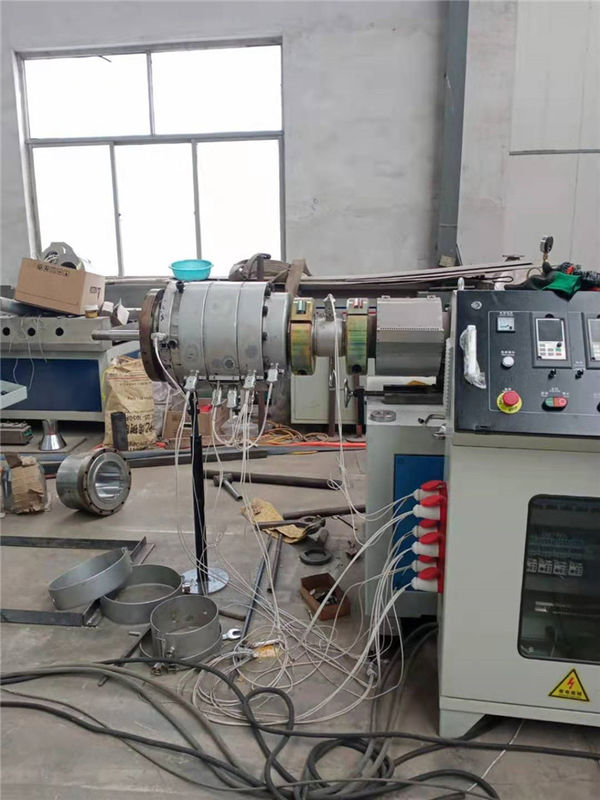

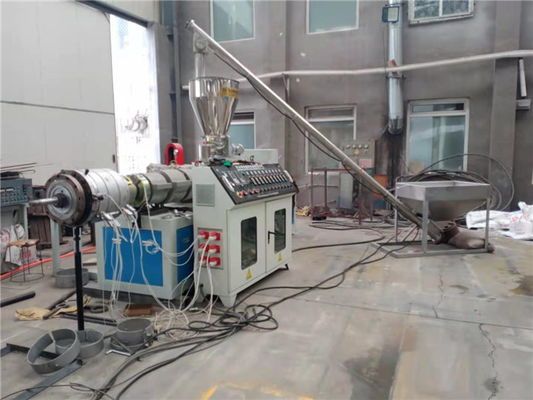

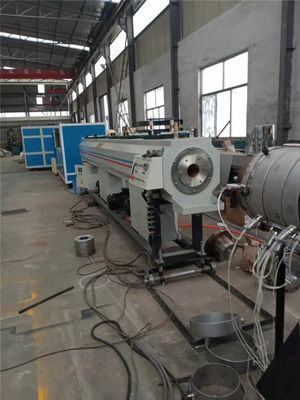

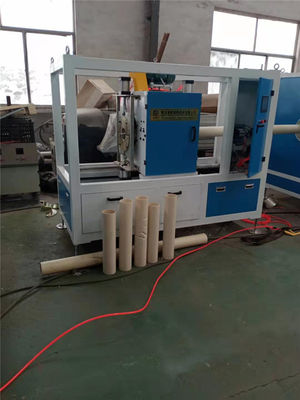

Machine pictures:
