PVC Electrical Conduit Pipe Extrusion Line 16mm Pipe Manufacturing Machine

PVC Electrical Conduit Pipe Extrusion Line , Water Supply PVC Pipe Manufacturing Machine

Quick detail:

1.Our company has full range of PVC pipe extrusion line, including four cavity pipe extrusion line, double cavity pipe extrusion line and large diameter pipe extrusion line.

2.Our company will also provide basic formula for PVC pipe production, customer can adjust easily based on the formula.

3.We manufacture machines for production of different PVC pipes, including U-PVC, C-PVC, M-PVC, PVC-O pipes, etc.

4.Our PVC pipe extrusion line can produce from size of minimum 16mm to 1000mm with single layer or multi-layer.

Description of pvc pipe extrusion line:

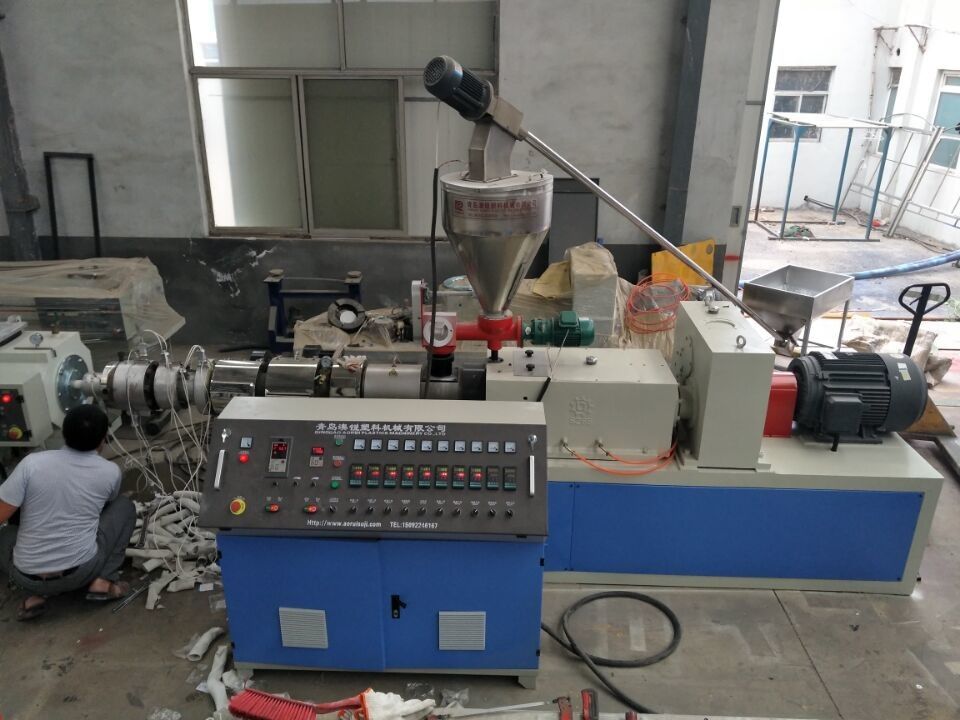

1.Extruder

• World famous brand electrical component such as Siemens, Schneider, ABB etc

•High torque gearbox with adopts NSK/SKF bearing;

•Siemens/WEG original motor achieved global after service;

• Bimetallic screw and barrel;

• Intelligent PLC controlling system with human-friendly interface.

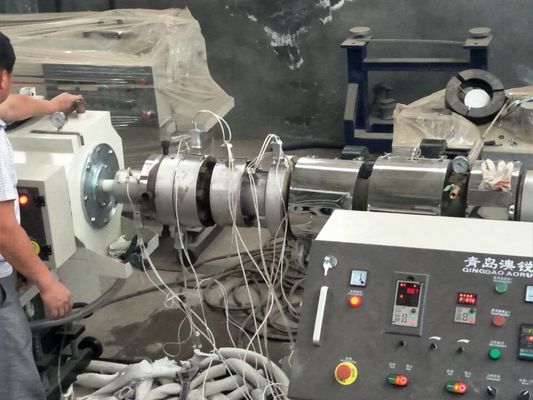

2.Die head

• 40Cr material

•Complete set include extrusion die head, Slotting & water ring type calibration sleeve

• Apply to PVC single,dual,Four cavity extrusion.

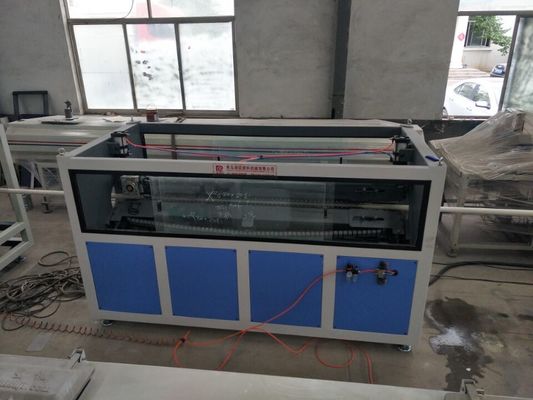

3.Vacuum calibration tank

• Include full set of vacuum and water pump

• length 4500mm

4.Haul off

• Upper and lower caterpillar is driven separately by the frequency inverter

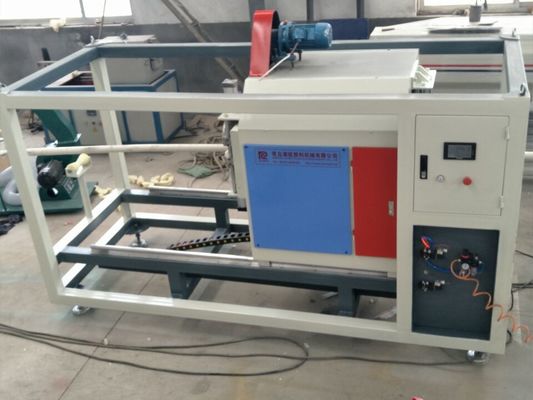

5.Planetary Saw Cutter

• Planetary saw cutter:enter knife by hydraulic drive

• Cutting saw: steel alloy, specific for cutting U-PVC pipe.

• Equipped cast aluminum compacted block for accurate cutting

• Synchronous control

6.Belling machine

• Blow type: internal air blow and external mould compacted calibration, make U, R and Z type sockets;

• Siemens PLC controlling:Automation& Remote Function: for centralized Controlling

7.Tipping table

•Stainless steel 304 as touching material

•Discharge driving by air cylinder



Technical parameters:

Machine Competitive Advantage:

1. Excellent in chemical corrosion, no rust;

2. With self extinguishing and flame retardant;
3. Excellent in anti aging, can be used 20years to 50 years between the temperature from subzero 15 to 60 degrees Celsius;

4. Wall is smooth, inner wall surface tension, it is difficult to form scale, the fluid transport capacity of 43.7% higher than the cast iron pipe;

5. The weight is light, easy to flaring, bonding, bending, welding, pipe installation workload is only 1 / 2 to the steel pipes, low labor intensity, short duration;

6. Good electrical properties of resistance, volume resistance of 1 to 3 x 105Ω.cm, breakdown voltage 23 to 2kv/mm;

7. The toughness of PVC pipe is low, linear expansion coefficient is high, operating temperature range is narrow.
