UPVC CPVC Double Pipe Extrusion Line 50HZ PVC Double Screw Extruder

UPVC CPVC Double Pipe Extrusion Line 50HZ PVC Double Screw Extruder
UPVC CPVC Double Pipe Extrusion Line 50HZ PVC Double Screw Extruder
UPVC CPVC Double Pipe Extrusion Line 50HZ PVC Double Screw Extruder UPVC CPVC Double Pipe Extrusion Line 50HZ PVC Double Screw Extruder UPVC CPVC Double Pipe Extrusion Line 50HZ PVC Double Screw Extruder UPVC CPVC Double Pipe Extrusion Line 50HZ PVC Double Screw Extruder UPVC CPVC Double Pipe Extrusion Line 50HZ PVC Double Screw Extruder

Large Image :  UPVC CPVC Double Pipe Extrusion Line 50HZ PVC Double Screw Extruder

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE Certificate
Model Number: SJSZ65X132
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 35 days
Payment Terms: 30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability: 10 Sets per month

UPVC CPVC Double Pipe Extrusion Line 50HZ PVC Double Screw Extruder

Description
Machine Type: Pvc Twin Pipe Production Line Condition: New
Screw Design: Twin Screw Extruder Warranty Time: 1 Year
Automatic Grade: Fully Automatic Motor Brand: Siemens
Voltage: 380V 50HZ Brand Name: Aorui
Place Of Original: China
High Light:

CPVC Double Pipe Extrusion Line

,

PVC Pipe Extrusion Line 50HZ

,

PVC Double Pipe Screw Extruder

UPVC CPVC PVC Double Pipe Extrusion Line , PVC Double Pipe Making Machine With Double Screw Extruder

Quick detail:

1.The PVC pipe production line is mainly used in the production of agricultural water supply and drainage, building water supply and drainage, and cable laying.
2.The unit consists of conical twin-screw extruder, mold, vacuum tank, haul-off machine, cutting machine, tracker and so on.


Description of pvc double pipe extrusion line:

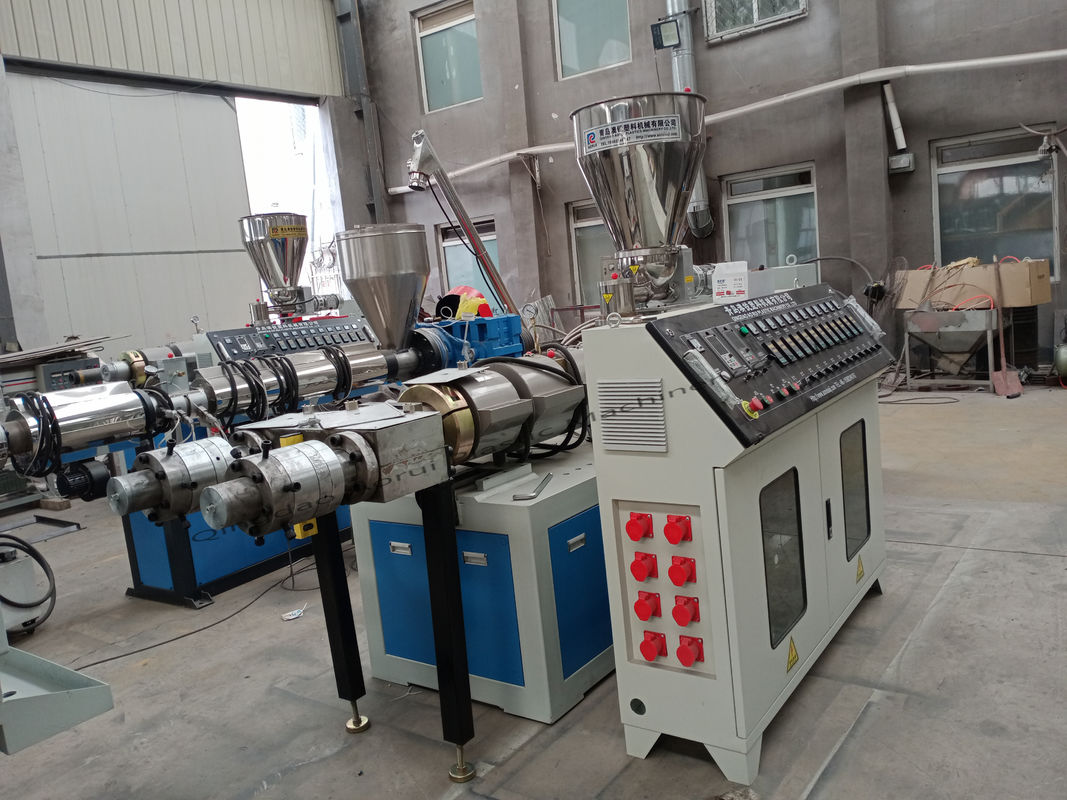

1.Twin screw extruder
The machine is equipped with a quantitative feeding device to match the extrusion quantity and ensure the stable extrusion of the products.

UPVC CPVC Double Pipe Extrusion Line 50HZ PVC Double Screw Extruder 0
2.Pipe Die Dead

apply bracket structure, each material flow channel is placed evenly.
Each channel after heat treatment, mirror polishing and chroming to ensure material flow smoothly.
Die head is modular design,easy for changing pipe sizes, assembling, dismantle and maintenance.
UPVC CPVC Double Pipe Extrusion Line 50HZ PVC Double Screw Extruder 1

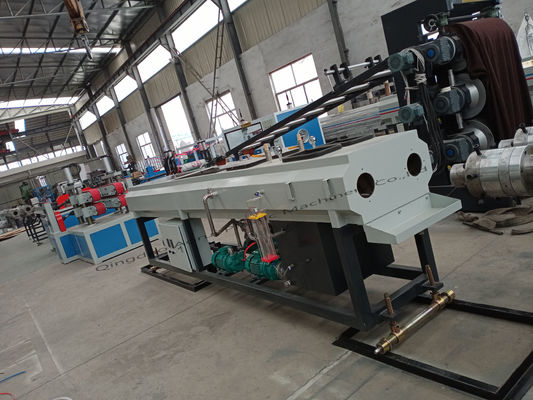

3.Vacuum CalibrationTank
used to shape and cool pipe, so as to reach standard pipe size.
We use double-chamberstructure.First chamber in short length, to ensure very strong cooling and vacuum function.
As calibrator is placed in the front of first chamber and pipe shape is formed mainly by calibrator, this design can ensure quick
and better forming and coolingof pipe.
UPVC CPVC Double Pipe Extrusion Line 50HZ PVC Double Screw Extruder 2

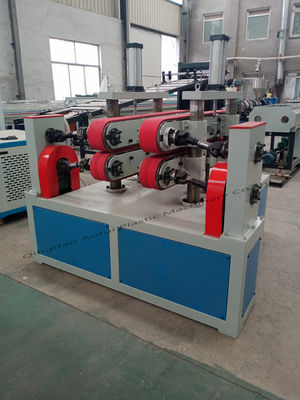

4.Caterpillar Haul -off
Provides sufficient traction force to pull pipe stably.
According to different pipe sizes and thickness,our company will customize traction speed, number of claws, effective traction

length.To ensure matchpipe extrusion speed and forming speed, also avoid deformation of pipe during traction.
UPVC CPVC Double Pipe Extrusion Line 50HZ PVC Double Screw Extruder 3

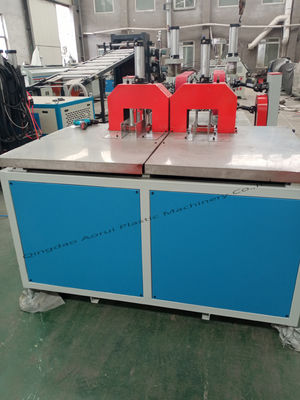

5.Double cutter
UPVC CPVC Double Pipe Extrusion Line 50HZ PVC Double Screw Extruder 4

Technical parameter:

Diameter(mm) 16-40dual 20-63dual 20-63 75-200 160-315 315-630
Extruder mode SJZ51/105 SJZ65/132 SJZ51/105 SJZ65/132 SJZ80/156 SJZ92/188
Extruder power (kw) 18.5AC 37AC 18.5AC 37AC 55AC 110DC
Max lineal speed (m/min) 0.5-10 0.5-15 0.5-10 0.5-8 0.5-6 0.5-4
Max capacity (kg/h) 120 250 80-120 180-250 280-350 500-600
Installation area     24*2.8*2.0m 30*2.8*2.2m 35*3.0*2.4 m 36*3.0*2.4 m


Machine Competitive Advantage:
Long service life
Easy to operate
