110MM PVC Plastic Pipe Extrusion Line 60w Water Pipe Making Machine

110MM PVC Plastic Pipe Extrusion Line 60w Water Pipe Making Machine

Brand Name:	AORUI
Model Number:	SJSZ65X132
MOQ:	One set
Price:	Negotiable
Payment Terms:	30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE Certificate

Condition:

New

Automatic Grade:

Fully Automatic

Model Number:

SJSZ80X156

Place Of Original:

China

Port Of Lading:

QINGDAO Port

Brand Name:

Aorui

Warranty Time:

1 Year

Diameter Rangee:

110-630mm

Motor Brand:

Siemens

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

Siemens Motor PVC Pipe Extrusion Line

110MM PVC Pipe Extrusion Line

60w PVC Water Pipe Making Machine

Product Description

PVC Water Pipe Making Machine , 110-630MM PVC Pipe Extrusion Line

Quick detail:

1.GPM series PVC Pipe Production Line is mainly used in the production of agricultural drainage, water supply and drainage, and cable laying,etc. purposes.

2.The unit consists of conical double/ parallel double extruder, mold, vacuum forming tank, multi-claw haul-off machine, planetary(chipless) cutting machine, stacker and so on. And the line can be equipped with Comptroller thickening instrument or computer inkjet printer, etc. to achieve the production and manufacture of high-grade tubing.

Description of pvc pipe making machine:

1.PVC pipe extruder machine /VC pipe making machine/PVC pipe extrusion line is mainly used in the manufacture of the UPVC and PVC pipes with various tube diameters and wall thickness such as the agricultural and constructional plumbing, water supply and drain etc.

2.This set is composed of conical twin-screw extrude, vacuum calibration tank, haul-off machine, cutter, stacker etc. The screw extruder and traction machine adopt imported AC frequency control device. The vacuum pump and traction motor both adopt advanced products. The haul-off machine has many models, such as two-claw, three-claw, four-claw, six-claw etc. It may choose visual blade or cutting type.The unit is of reliable performance and high production efficiency.

3.All electric components are from famous world brands, such as ABB, SIMENS, SCHNEIDER, OMRON,etc.This line can solve the problems of high temperature melting, high viscosity, easy-decomposition. The special designed screw, gearbox, tooling, and HMI system make the line reliable and easy operation.

Main parameter of PVC pipe making machine:

Mode	Pipe range (mm)	extruders	Max. output (kg/h)	Max. speed (m/min)	Total power (kw)	Line length (m)
PVC-50x2	16-50	SJSZ51/105	150	6m	60w	20m
PVC-63	16-63	SJSZ45/90	120	10m	45w	20m
PVC-110	50-110	SJSZ51/105	150	6m	60w	24m
PVC-160	63-160	SJSZ65/132	300	5m	100w	24m
PVC-250	110-250	SJSZ80/156	400	3.5m	120w	28m
PVC-315	160-315	SJSZ 80/156	400	3m	160w	28m
PVC-450	250-450	SJSZ 92/188	700	1.5m	200w	36m
PVC-630	315-630	SJSZ92/188	700	0.9	230kw	36m

Machine Competitive Advantage:
Long service life
Easy to operate

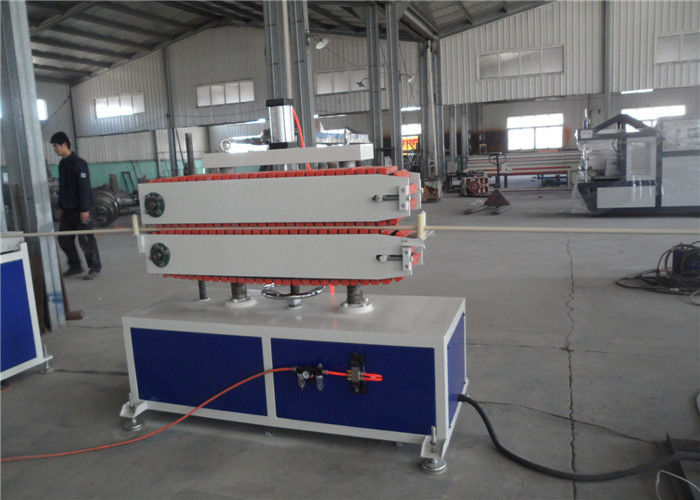

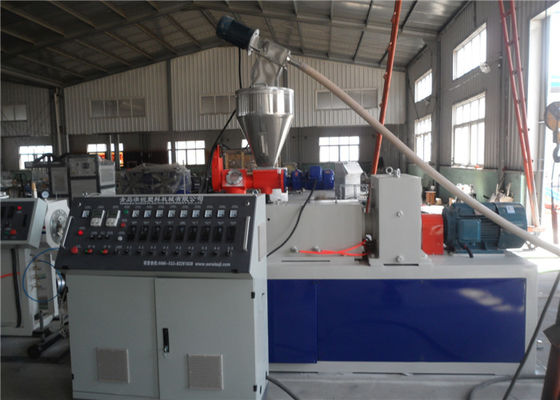

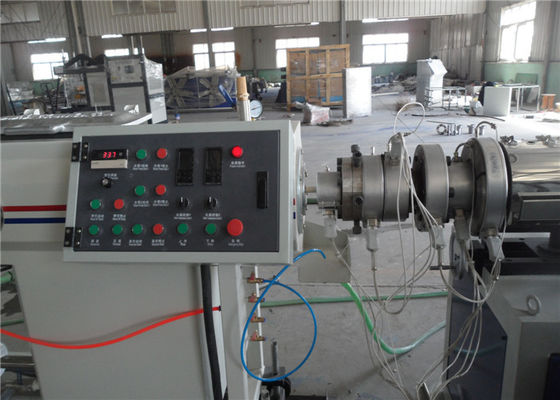

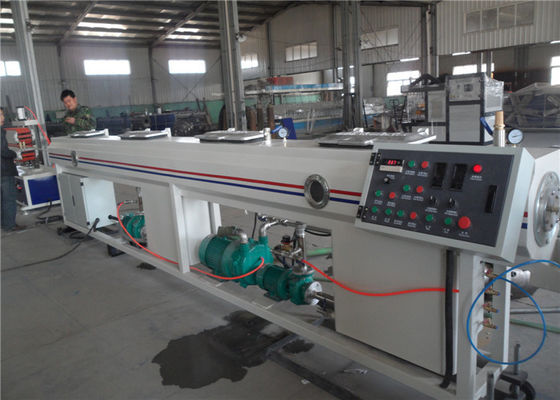

Machine display:
