PVC Water Plastic Pipe Extrusion Line 250kg/H Electric Conduit Pipe Extruder Machine

PVC Water Plastic Pipe Extrusion Line 250kg/H Electric Conduit Pipe Extruder Machine
PVC Water Plastic Pipe Extrusion Line 250kg/H Electric Conduit Pipe Extruder Machine PVC Water Plastic Pipe Extrusion Line 250kg/H Electric Conduit Pipe Extruder Machine PVC Water Plastic Pipe Extrusion Line 250kg/H Electric Conduit Pipe Extruder Machine PVC Water Plastic Pipe Extrusion Line 250kg/H Electric Conduit Pipe Extruder Machine

Large Image :  PVC Water Plastic Pipe Extrusion Line 250kg/H Electric Conduit Pipe Extruder Machine

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE Certificate
Model Number: SJSZ65X132
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 35 days
Payment Terms: 30% prepaid by T/T , blanced 70% by T/T or L/C before shipping
Supply Ability: 10 Sets per month

PVC Water Plastic Pipe Extrusion Line 250kg/H Electric Conduit Pipe Extruder Machine

Description
Brand Name: AORUI Application: PVC Pipe
Plastic Processed: Pvc Resin Screw Design: Double Screw
Place Of Original: China Warranty Time: 1 Year
Voltage: 380V 50HZ Automatic Grade: Fully Automatic
Motor Brand: Siemens
High Light:

PVC Electric Conduit Pipe Extruder

,

Plastic Pipe Extrusion Line 250kg/h

,

PVC Water Plastic Pipe Extrusion Line

PVC Electric Conduit Pipe Extruder Making Machine , PVC Water Plastic Pipe Extrusion Line

Brief introduction of pvc pipe machine:

1.PVC pipe extrusion line is mainly used in the production of pressure water pipes, agriculture irrigation, building or city drainage and Sewage and constructional plumbing cable laying etc.

2.The unit consists of Conical twin screw extruder, PVC pipe mould-Vacuum calibration tank-Haul-off machine-Planetary Saw Cutting machine-Tripping table/Belling machine.

3.Producing pipe diameter range: Φ160mm-Φ400mm. And the line can be equipped with comptroller thickening instrument, computer ink-jet printer, crusher, shredder, pulverizer, water chiller, air compressor etc.



Description of pvc pipe making machine:

1.The PVC Pipe production line is mainly used in the area of agricultural water supply system, architectural water supply system(water supply and drainage pipe), pavement of cables and as well as different diameter and thickness of PVC Pipes.

2.The complete PVC Pipe production line is composed by conical twin screw extruder, pipe extrusion mold, vacuum calibration tank, haul off machine, cutter and stacker, belling machine(socketing machine). The main extruder and haul off we adopts ABB inverter, vacuum pump and motors adopt high quality famous brand. Haul off machine has two claws, three claws, four claws, six claws and eight claws accord to different pipe diameters.

3.For pipe cutting machine has saw and planetary cutting type, which additionally attached with the meter counter and intensifying device. The production line is easily installation and operation, simple maintenance with reliable quality.



Technical Parameters:

Diameter Range(mm) Extruder Type Extrusion Power
(KW)
Max. Capacity
(kg/h)
∅16-63 SJSZ51/105 18.5 AC 120
∅16-40 Dual SJSZ51/105 18.5 AC 120
∅16-63 Dual SJSZ65/132 37 AC 250
∅16-40 Four SJSZ65/132 37 AC 250
∅32-110 SJSZ65/132 37 AC 250
∅63-200 SJSZ65/132 37 AC 250
∅63-110 Dual SJSZ80/156 55 AC 450
∅110-250 SJSZ80/156 55 AC 450
∅200-400 SJSZ80/173 75 AC 600
∅315-630 SJSZ92/188 110 AC 800
∅500-800 SJSZ95/192 132 AC 1000


Machine Competitive Advantage:
Our PVC pipe extrusion machine has features of low energy consumption, high output, stable running etc.



Machine display:

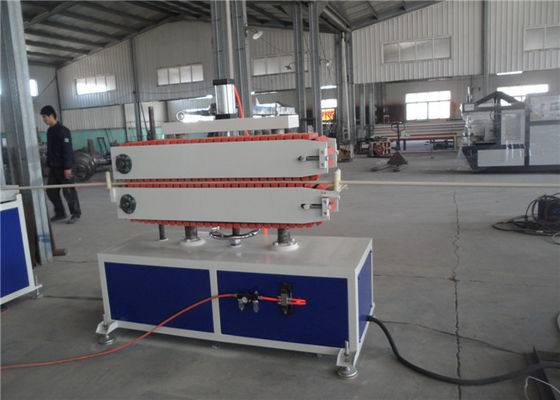

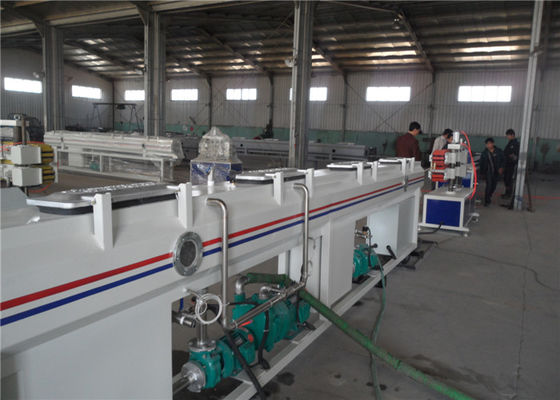

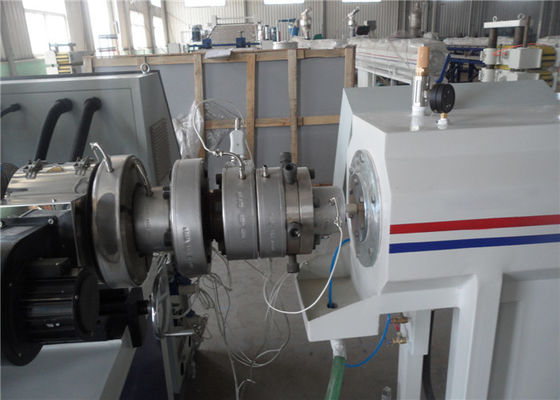

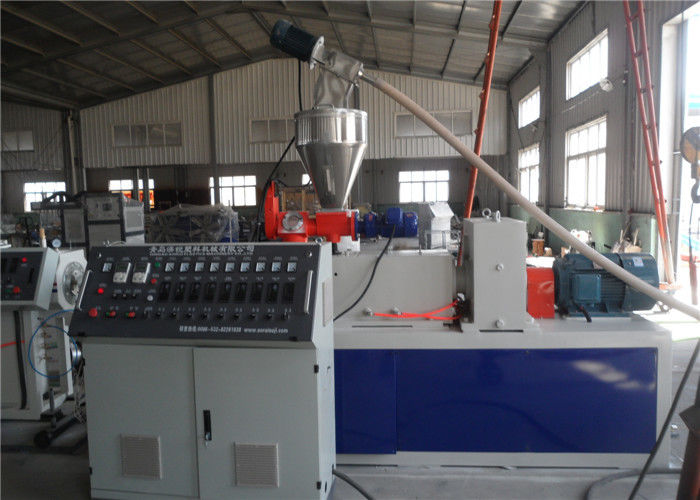

PVC Water Plastic Pipe Extrusion Line 250kg/H Electric Conduit Pipe Extruder Machine 0PVC Water Plastic Pipe Extrusion Line 250kg/H Electric Conduit Pipe Extruder Machine 1
