Product Details:
|
Automatic Grade: | Fully Automatic | Condition: | New |
---|---|---|---|
Screw Design: | Double Screw | Voltage: | 380V 50HZ Or According To Customer's Requirement |
Screw Material: | 38Cr Moaia | Place Of Original: | China |
Warranty Time: | 1 Year | After Sales Servicer: | Engineer Available To Service |
Screw Size: | SJSZ65X132 | Port Of Lading: | Qingdao Port |
High Light: | Fully Automatic PVC Pipe Extrusion Line,PVC Pipe Extrusion Line 380V,Drainage Sewage Conduit Pipe Extrusion Line |
PVC Drainage Water Sewage Conduit Pipe Making Machine , Fully Automatic PVC Pipe Extrusion Line
Description of pvc pipe making machine:
PVC Pipe Diameter Range:φ16mm-φ800mm
The Vacuum Calibration Tank will be equipped with different quantity and power of water pump and vacuum pump for different pipe diameter
For extruder Temperature Control system,Digital PLC control or Manual Temperature Control Meter
Caterpillar Haul-off unit with two caterpillar, threecaterpillar, four caterpillar,six caterpillar,eight caterpillar design for different range of pipe diameter haul-off
Guillotine cutter&Planetary cutter can be choosed according to different diameter pipe.
Equip with special mould and other device,it can produce inner wall sprial pipe and Inner wall hollow pipe and three layer pipe.
Easy Operation,Reliable performance,High Extrusion Efficiency,Easy Maintenance
Technical Parameters:
Diameter Range(mm) | Extruder Type | Extrusion Power (KW) |
Max. Capacity (kg/h) |
∅16-63 | SJSZ51/105 | 18.5 AC | 120 |
∅16-40 Dual | SJSZ51/105 | 18.5 AC | 120 |
∅16-63 Dual | SJSZ65/132 | 37 AC | 250 |
∅16-40 Four | SJSZ65/132 | 37 AC | 250 |
∅32-110 | SJSZ65/132 | 37 AC | 250 |
∅63-200 | SJSZ65/132 | 37 AC | 250 |
∅63-110 Dual | SJSZ80/156 | 55 AC | 450 |
∅110-250 | SJSZ80/156 | 55 AC | 450 |
∅200-400 | SJSZ80/173 | 75 AC | 600 |
∅315-630 | SJSZ92/188 | 110 AC | 800 |
∅500-800 | SJSZ95/192 | 132 AC | 1000 |

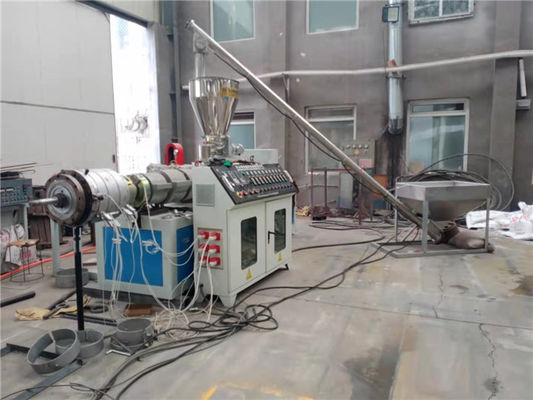

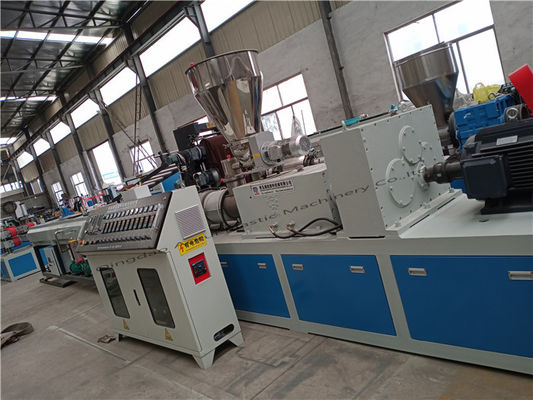

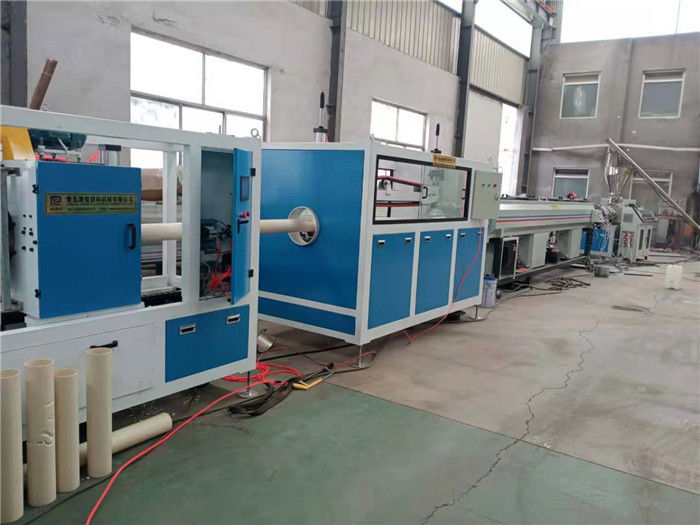

Machine display:
