Product Details:
|
| Condition: | New | Brand Name: | Aorui |
|---|---|---|---|
| Automatic Grade: | Fully Automatic | Screw Design: | Double Screw |
| Application: | Pvc Pipe | Warranty Time: | 1 Year |
| Screw Material: | 38Cr Moaia | Plastic Processed: | Pvc |
| After-sales Service: | Engineer Availiable To Service | Place Of Original: | China |
| High Light: | PVC Plastic Double Pipe Extrusion Line,120kg/h Double Pipe Production Line,Double screw Pipe Extrusion Line |
||
High Output PVC Double Pipe Production Line , One Out Two PVC Pipe Extrusion Line
Quick details:
1.The production line is developed with the advanced technology of west Europe by our company. The main machine is SJSZ51/110 conical twin screw extruder is equipped with double-tubesingle control stainless steel spraying calibration,it avoids waste condition when one tube is adjusted and the other one is affected.
2.PVC double pipe production line is developed for high output of double pipe extrusion together.
The main machine, SJSZ-51/105 , SJSZ-65/132conical twin-screw extruder, is equipped with double-tube single-control stainless steel spraying calibration which avoids waste condition when one tube is adjusted and the other one is affected.
Description of pvc double pipe machine:
1.Conical Twin Screw Extruder
2.Die mold.

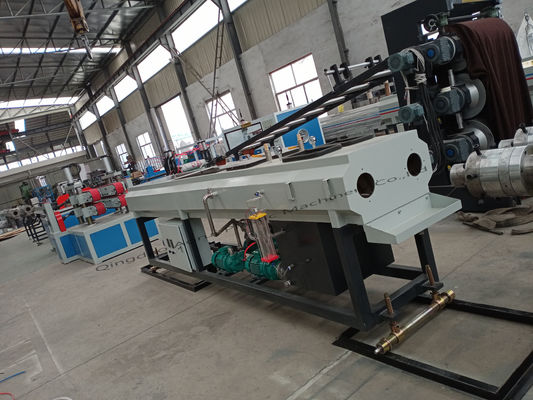

3.ZDLX-420*6000 Vacuum calibration & cooling tank
4.Water cooling tank are made of high qulity stainless steel, no rusty, longer lifetime.
Temperature controlled by intelligent temperature controller, high precision, automatic control, save labor and easy to operate.
Technical Parameters:
| Extruder | Pipe diameter(mm) | Output(kg/hour) | Total Power(KW) |
| SJZ-51/105 | 16-40 | 120 | 75 |
| SJZ-55/120 | 16-40 | 150 | 90 |
| SJZ-65/132 | 25-63 | 250 | 125 |

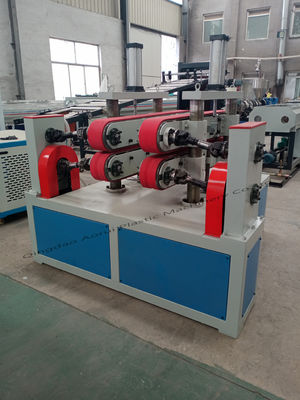

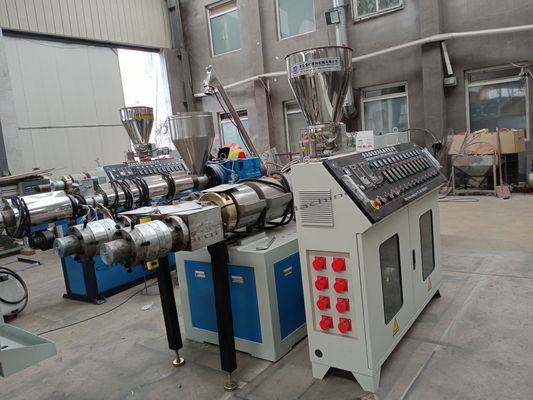

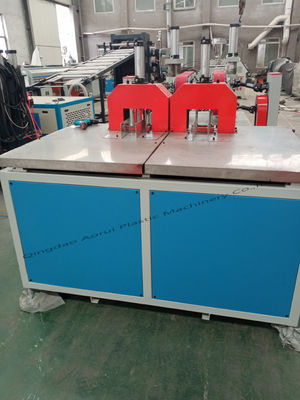

Machine display:
