PET Plastic Sheet Extrusion Line , 50HZ APET PETG Sheet Machinery

Brand Name:	AORUI
MOQ:	One set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL CSA

Capacity:

According To Customer's Requirement

Plastic Processed:

PET

Thickness:

Different Size

Voltage:

380V/50HZ

Application:

Sheet

Layer:

Mono-layer And Multi-layer

Screw Design:

Single Scrow Or Parallel Twin Screw

Type:

Plastic Production Line, Plastic Extrusion Line

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

plastic sheet extrusion machine

plastic sheet production line

Product Description

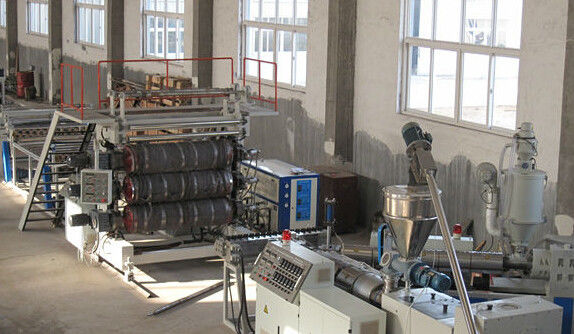

PET Plastic Sheet Extrusion Line , 50HZ APET PETG Sheet Machinery

Quick detail:

1.Coat hanger type die with two throttle design enable to regulate the sheet thickness accurately;
2.temperature control make the plasticizing process and sheet thickness control more accurate;
3.Horinzontal, vertical or 45°incline type three rollers calenders may be lifted freely;
4.Sheet thickness shall be regulated by screw and pressing roller;

Description:

PET sheet extrusion line is designed for the APET, G-A-G single or multi-layer sheet , it can produces the PS, PP, PE ,PLA sheet in the same line .it is a multi-using machine

The Sheet width ranges from 560 to 1500mm, thickness ranges from 0.15 to 1.2mm.Output capacity : 350-800kg/h even higher if using high speed and heavy design gearbox and motor

PET sheet (APET, PETG, CPET,RPET) is the material which is flexible, transparent, non-toxic, environmental friendly and recyclable suitable for thermoforming boxes, cases, bowls and plates etc in medica and food industrials.

Applications:

1.Separate roller temperature control system to control the temperature of pressing roller to gain even sheet thickness;
2.Winder with big torque motor, and its speed and tension force adjustable;
3.Automatic metering to set the length of product.

Specifications:

Model

Extruder

Motor Power

(kw)

Width(mm)

Thickness(mm)

Line Speed(m/min)

Output

(kg/h)

SSP-PET120

SJ120×30

132

500-1200

0.15-2

5-25

450

SSP-PET150

SJ150×30

185

800-2200

0.15-2

5-18

650

Competitive Advantage:

1. passed ISO CE certificates
2. Turnkey project
3. Machine sample in factory
