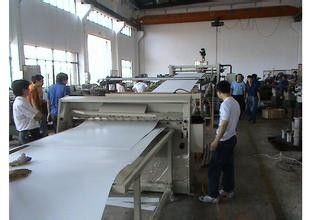

PP / PE Plastic Sheet Extrusion Machine , Bathroom / Refrigerator Sheet Machinery

Brand Name:	AORUI
MOQ:	One set
Price:	Negotiable
Payment Terms:	T/T L/C
Supply Ability:	10 Sets per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE UL CSA

Raw Material:

Polyethylene PE

HS Code:

8477800000

Technique:

Extrusion

Market:

Europe,america,africa,asia,etc...

Type:

Sheet Plastic Production Line

Screw Design:

Single Screw

Automatic Grade:

Full Automatic

Application:

Package,protection,etc

Certificate:

CE,ISO9001

Color:

According To Customer's Requirement

Packaging Details:

Fumigation wood, film,pallet,etc or according to customer’s requirement.

Supply Ability:

10 Sets per month

Highlight:

plastic sheet extrusion machine

plastic sheet extruder machine

Product Description

PP / PE Plastic Sheet Extrusion Machine , Bathroom / Refrigerator Sheet Machinery

QUICK DETAIL :

1.certification:CE&ISO9001
2.Width of product:500-1200mm
3.reasonable price and high quality

Description:

1)Screw with special mixing and plasticization function;

2)Coat hanger type die with two throttle design enable to regulate the sheet thickness accurately;

Horinzontal, vertical or 45°incline type three rollers calenders may be lifted freely;

Sheet thickness shall be regulated by screw and pressing roller;

3)Separate roller temperature control system to control the temperature of pressing roller to gain even sheet thickness;

4)Exact slicing machine, board length and quantity;

5)Winder with big torque motor, and its speed and tension force adjustable;

6)Automatic metering to set the length of product

The main technique parameter

Width of sheet : 400-2000mm

Thickness of sheet: 0.2-50mm

Production Capacity: 30-600kg/H

Production line speed: 25M/Min

FEATURES:

1.Width: 320-3000mm
2.Thickness: 0.2--2mm
3.Capacity: 150-450kg/hr
4.Mono-layer and multi-layer sheet extrusion system for up to 5 layers
5.Processing capabilities: PE, PP, PS and other thermoplastic materials

Applications:

1 This production line is capable of continuously producing mono-layer or multi-layer The products are 2.widely used in the fields of refrigerater ,air conditioner ,auto,advertisement ,and construction ,environment protection ,etc.

3. The line includes many equipments ,such as :extruder ,screen changer and mould,three-roller calendaring machine,bracket of cooling roller,landscape orientation cutting machine and the winder

Specifications:

Model	Unit	TYJB-75	TYJB-90	TYJB-110
Material applied	PP,PS,PE
Width of sheet	mm	≤600	≤750	≤1100
Thickness of sheet	mm	0.2-1.6	0.2-2.0	0.2-2.0
Extrusion capacity	kg/h	60-100	100-150	150-200
Diameter of screw	mm	75	90	105
Installed capacity	kw	75	90	120

Competitive Advantage:

1.Very low friction
2,Width:400-3000mm
3,Thickness:0.25-30mm
4,high output
