Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: PP65
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month

20mm Automatic PP Box Strapping Machine Single Screw

Description
Brand Name: Aorui Machine Type: PP Strap Band Making Machine
Screw Design: Single Screw Place Of Original: China
Voltage: 380V 50HZ Width Of Strap Band: 8-20mm
Thickness Of Strap Band: 0.5-2mm Motor Brand: Siemens
Certificate: CE Certificate Warranty Time: 1 Year
High Light:

Automatic PP Strapping Machine

,

Box PP Strapping Machine

,

Automatic Box Strapping Plant

PP PET Strapping Band Machine , Automatic PP Strapping Machine , Box Strapping Production Line



Quick details of plastic strapping machine:

1.PP packing belt production equipment is mainly composed of automatic feeding machine, dehumidification and drying device, extruder, filter, mold, sink, traction machine, oven, stretching unit, heat shaping box, winding machine and so on.

2.According to customer requirements and samples, the production of printing, printing icon and other special packaging belt, the production of packaging belt tensile strength, bright color, clear and beautiful pattern, flat end face.



PP PET Strap Band Machine Description:

1.This equipment adopts double infrared oven equipment on the basis of PP-A, adding A group of traction group greatly increases the flexibility and extensibility of the belt.

2.Use environment: not afraid of moisture, corrosion resistance, acid and alkali resistance, water absorption and hygroscopicity is small, after immersion does not reduce the strength, safe operation and other advantages.

3.Small ELONGATION: NO slack, high specific strength, can maintain the tension for a long time, so as to ensure that the goods have excellent impact resistance in long-distance transportation.

4.High output (one out of two, 2.5-3.5 tons/day; One out of three, 3.5-4 tons/day; One out of four, 4-6 tons/day; Core with two out of two, 2.5-4 tons/day; Core with two out of four, 4-8 tons/day);

5.Save electricity, water can be recycled (one out of two, electricity per hour 30-35 degrees; One out of four, electricity per hour 40-50 degrees); (The host can be equipped with infrared heating, production cost saving at least 50 yuan/ton)

6.Our COMPANY is the first IN China to use the NON-STOP technology of changing network, used in PP packaging belt production line, customer response is good. (to solve the problem of waste caused by the shutdown belt for customers);


Technological parameter:

Strapping diameter

6-32mm

Screw diameter

65

L/D

34:1

Screw material

38CrMoAlA

Barrel material

38CrMoAlA

Barrel heating

Casting aluminum

Barrel cooling

Water

Driving motor

37kw

Cooling tank length

1200mm

Seven Pre-heating roller

Dia. 215mm

Stretch oven

Carbon Steel welding

Heating power

15kw

Five stretch roller

Dia. 215mm

Three cooling roller

Dia. 215mm

 Calibrating box length

4000mm

 Three roller pulling

Dia. 215mm

Winding unit

Automatic winding

Total installation power

~105kw

Machine dimension

38000x1300x28000mm

Weight

18ton



Application of strapping band:

In order to meet the needs of carton, wooden box, tobacco, paper industry, clothing, food, fruit, automobile, medical, electrical appliances, electronics, pipe industry, mine flame retardant, weaving and other industries, the company has specially developed PP type high-grade pure material automatic packing belt production equipment.


Competitive Advantage:

1.This equipment is updated and changed, with higher output, better molding, more convenient maintenance

simple operation

2.safety and environmental protection

3.Low noise, no pollution

4.Less power consumption, longer service life and other advantages

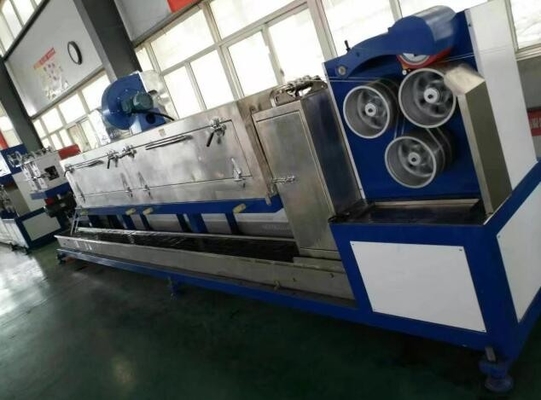

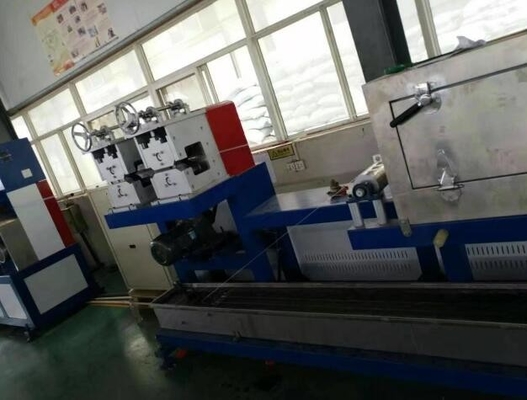

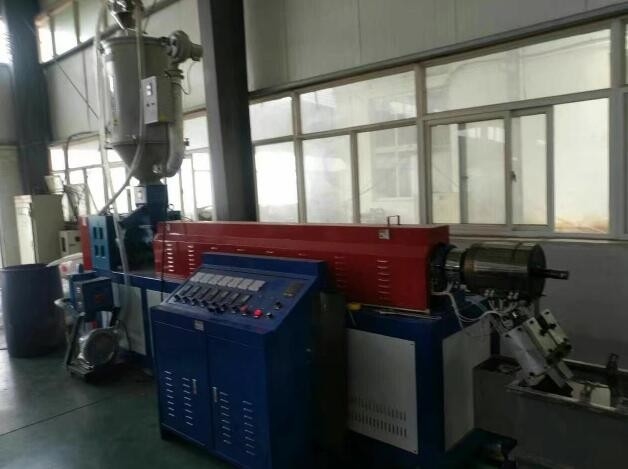

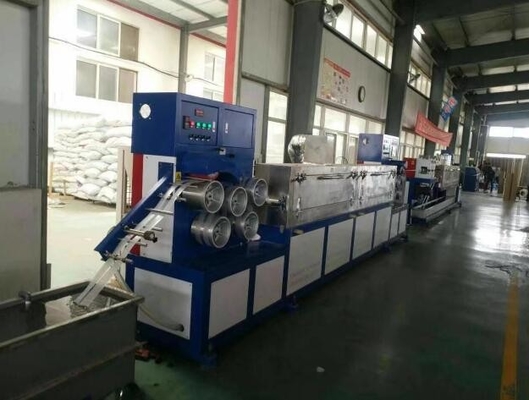

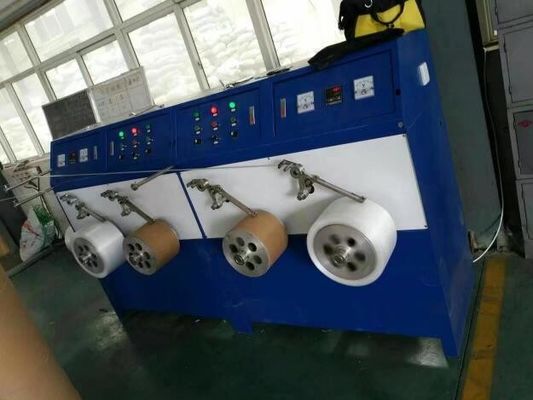

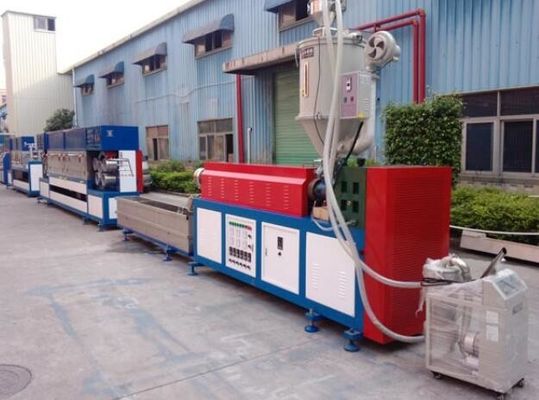

Machine display:


20mm Automatic PP Box Strapping Machine Single Screw 020mm Automatic PP Box Strapping Machine Single Screw 1
