Product Details:
|
| Condition: | New | Screw Design: | Single Screw |
|---|---|---|---|
| Motor Brand: | Siemens | Certificate: | CE Certificate |
| Brand Name: | Aorui | Place Of Original: | China |
| Voltage: | 380V 50HZ | Application: | PET Strap Band |
| Plastic Processed: | PP PET | Screw Material: | 38Cr Moaia |
| High Light: | Strapping Band Machine 60kg/H,Single Screw Strapping Band Machine,50HZ Automatic Banding Machine |
||
Single Screw PET PP Strap Band Making Machine , High Output PP Strap Band Production line
Quick details:
1.PET PP strap is recognized a new environment protective strapping material to substitute for Steel Strap &PP Strap in the ruling international market.
2.They are not only the aggregation of the intensity and the tenacity of steel strap, but also overcome the disadvantage of the tradition packing material such as insufficient intensity, brittle and so on. At present, they have been applied in wood, steel, and so on.
3.Our company this line adopt the PLC control the whole line do the automatic production. It use the melting pump and pressure sensor ensure the production stable and strap quality control.
PP PET Strap Band Production Line description:
1.Features: with 100% bottle flakes recycled material, to produce various specifications of PET strap. Adopting unique design of dry system to confirm viscosity of material and final straps quality, dimensional stability good straight to confirm straps can be used in automatic packing machine.
2.Our machine adopts advanced dehumidify dryer system. It makes sure the material humidity at 80PPM at 50PPM dew point. Meanwhile, it compact material and increase the viscidity.
3.Adopts closed cycle transport system after dryer to avoid contact with outside air and make sure the material drying continuously.Extruder adopts special screw for PET. The screw has unique separate and mix property to make sure uniform plasticizing.
4.And the extruder adopts ration forced feeding to make sure the stable extruding. It makes sure the product uniform.
5.Produce different model product at one die and mould, adopting hydraulic screen exchanger without material leak.
Technological parameter:
|
Model
|
Capacity
(kg/h )
|
Strap size
(mm)
|
Installed Power
(KW)
|
Manpower
|
Machine size
(L*W*H m)
|
|
SJ65/33 Single strap
|
50~60
|
9~19
|
85
|
1~2
|
35*4*5
|
|
SJ75/33 Single strap
|
80~100
|
9~19
|
100
|
1~2
|
38*4*6
|
|
SJ75/33 Double
strap
|
80~120
|
9~19
|
110
|
1~2
|
40*4*6
|
|
SJ90/33 Double
strap
|
120~150
|
9~19
|
150
|
1~2
|
45*5*7
|
|
SJ120/33 Double
strap
|
150~200
|
9~19
|
220
|
1~2
|
45*5*7
|
Machine advantages:
1.Use 100% Recycled PET Flakes to reduce the cost
2.Good dehumidifer drying system(Crystallization system optional ) to ensure the material equal dryer to produce high quality strapping

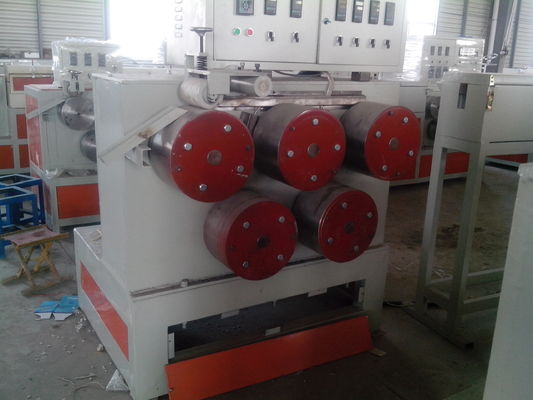

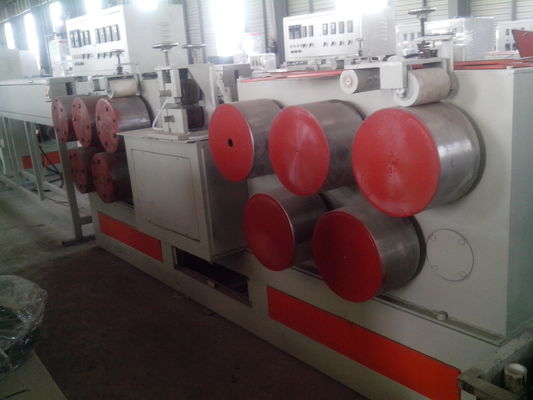

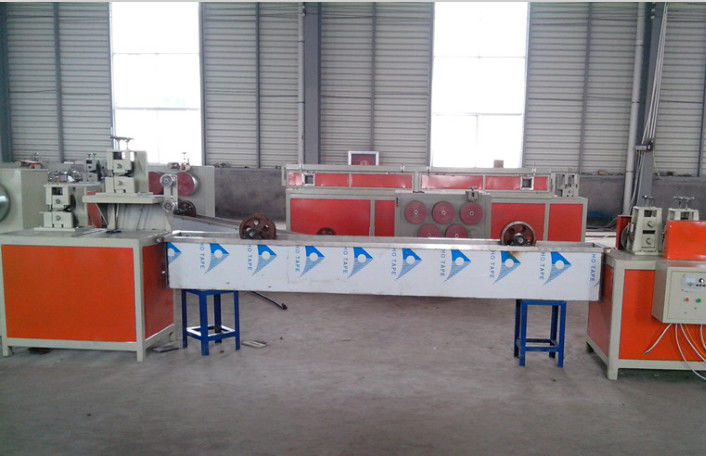

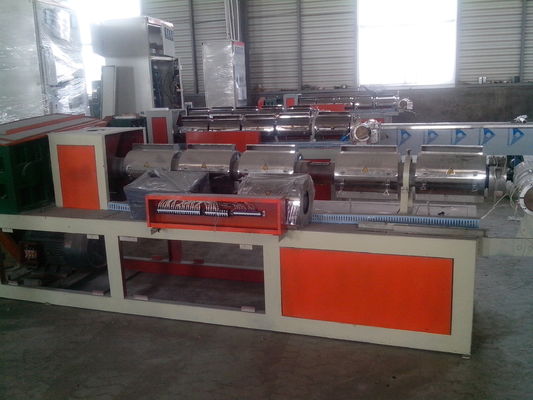

Machine display:
