|Condition:||New||Plastic Processed:||PP PE|
|Application:||Plastic Sheet||Screw Diameter:||90mm|
|Screw L/D Ratio:||33:1||Raw Material:||Pp Pc|
|Warranty:||1 Year||After-sales Service:||Engineers Availiable To Service|
WPC Board Machine,
Wood Plastic Composite Extruder

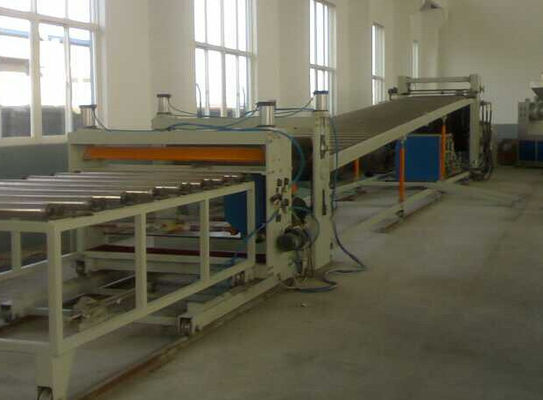

PP PC Plastic Hollow Grid Sheet Plastic Board Extrusion Line With Single Sscrew Extruder
1. SHEET SPECIFICATIONS:
Sheet width: 700mm-1050mm- 1220mm-2100mm-2300mm,
Sheet thickness is 4mm-6mm-8mm-10mm-12mm.
Sheet walls: double walls, three walls, four walls, honeycomb type,
2. This pc hollow sheet extrusion machine realizes continuous production of PC hollow grid sheet, which is applicable to construction decoration, advertisement collocation, and noise insulation of highway as well as packaging. It is characterized by light weight, high intensity,high transparency dampproof, and anticorrosion.
1. Polypropylene (PP) extruded sheet is a plastic sheet made by adding PP resin to various functional additives through extrusion, calendering, cooling, cutting and other processes.
2. PP board is a semi-crystalline material. It is harder than PE and has a higher melting point. Because the PP temperature of the homopolymer type is very brittle when it is higher than 0 ° C, many commercial PP materials are random copolymers with 1 to 4% ethylene or clamp copolymers with a higher ratio of ethylene.
3. Copolymer PP materials have lower heat distortion temperature (100 ℃), lower transparency, lower gloss, lower rigidity, but have stronger impact strength.
Main technical parameters of PP PE PC sunlight panel extrusion line:
|SJ120|35, SJ45|30||SJ10038, SJ4530||SJ120||SJ10033|
|Material||PC||PC||PP PE||PP PE|
The production line is used for the continuous production of PC, PE and PP hollow grid panels. The products are widely used in architectural decoration, advertising layout, road noise, sound insulation and packaging. PE, PP hollow grid plate can replace the carton as a packing box, with light weight, high strength, moisture proof and anti-corrosion.
1.Low power consumption.
2.Low trouble as advanced design.
3.Low maintenance cost.
Contact Person: AORUI
