Wood Plastic Composite PVC Door Plate Production Line , Door Panel Extrusion Line

Wood Plastic Composite PVC Door Plate Production Line , Door Panel Extrusion Line
Wood Plastic Composite PVC Door Plate Production Line , Door Panel Extrusion Line Wood Plastic Composite PVC Door Plate Production Line , Door Panel Extrusion Line Wood Plastic Composite PVC Door Plate Production Line , Door Panel Extrusion Line Wood Plastic Composite PVC Door Plate Production Line , Door Panel Extrusion Line

Large Image :  Wood Plastic Composite PVC Door Plate Production Line , Door Panel Extrusion Line

Product Details:
Place of Origin: China
Brand Name: AORUI
Certification: CE UL CSA
Model Number: SJSZ92/188
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: Negotiable
Packaging Details: Fumigation wood, film,pallet,etc or according to customer’s requirement.
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 10 Sets per month

Wood Plastic Composite PVC Door Plate Production Line , Door Panel Extrusion Line

Description
Condition: New Screw Design: Double Screw
Plastic Processed: PVC Application: Profile
Motor Brand: Siemens Warranty Time: 1 Year
After-sales Service: Engineers Availiable To Service Voltage: 380v 50hz
High Light:

WPC Board Machine

,

Wood Plastic Composite Extruder

Wood Plastic Composite PVC Door Plate Production Line , Door Panel Extrusion Line



Quick detail:

1.YF Series PVC non-profiled material production line is mainly used in PVC door & window profiled material, wide door plate, window plate, extrusion of multi-holes pipe for passing through lines (four holes, six holes, seven holes, nine holes, etc.)

2.For different sectional surface and molds, twin parallel (conical) screws extruder of different specifications can be chosen together with corresponding vacuum calibrating table, haul-off unit, cutting unit, tilter, etc.


Description:

1.PVC Wood&plastic Door Panel Extruding Production Line,Capacity of main frame can be optionally chosen from 60-700 kgs/hour. The haul-off unit has applied unique lift technique of our co. Its work is stable, its reliability is good, its pulling force is large. Vacuum setting has applied special enlarged vortex cooling system which is good for cooling and calibrating so as to meet demand of high speed extruding.

2.Movement speed and drawing speed of cutting machine keep synchronous. All movements are controlled by imported PLC, the design is reasonable, the operation is stable, it can conduct automatic cutting with fixed length.

3.Powder & dust suction device can be provided. With different molds, the tilter platform can choose such specifications as 4-meter, 6-meter, 8-meter, 11-meter, etc. With twin parallel screws extruder, it is particularly suitable for high speed extruding of profiled material.

4.After special processing means made of a new type of environment protection material, manufactured products would not rot, deformation, color legs, and rejected pests, not cracking, and maintenance of fire safety without the advantages of good performance, plastic and wood from the respective merits can be made railings, trails, outdoor furniture, office furniture, furniture, logistics, packaging, trays, and much more

5.The machine can produce PE, PP or PVC and wood profile products. These products are mainly applied for making pallets, packing cases, floors, wall decoration materials and other wide applications. The wood powder or plant fiber can be put up to max. 50-75%.



Technical data of pvc profile machine:

Model Max.wide(mm) Extruder model Max output(kg/h) Drive motor power(kw)
TYXC108 108 SJZ51/105 100 18.5
TYXC180 180 SJZ51/105 or SJZ55/110 100/150 18.5/22
TYXC240 240 SJZ65/132 250 37
TYXC300 300 SJZ65/132 250 37
TYXC400 400 SJZ80/156 350 55
TYXC500 500 SJZ80/156 350 55
TYXC600 600 SJZ80/156 400 75



Applications:

1. The finished product is mainly made from PVC, PE, PP wooden powder, cotton stalk, rice chaff and other natural fibers.

2. Plastic-wood compounded finished product is a new type of ideal environment friendly material, which is made from PVC resin, polyolefin plastic and cellulose (straw, cotton stalk, wooden power, rice chaff, etc) with special procession and treatment.

3. It has such advantages as rot prevention, non-deformation, non-shading, pest resistant, fire-proof, split proof, etc.



Competitive Advantage:

1.high output
2.PVC Board has a very wide application range, it is being used for:
Construction (wall panels, ceilings, decoration etc.);

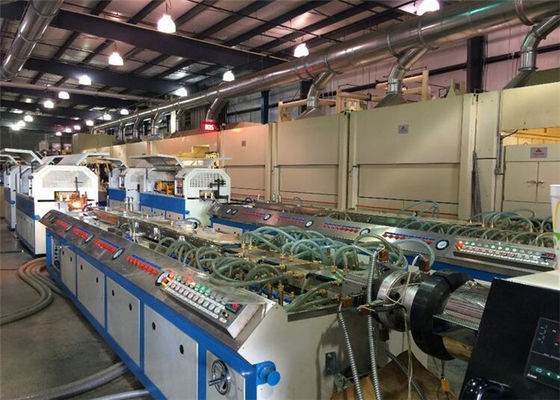

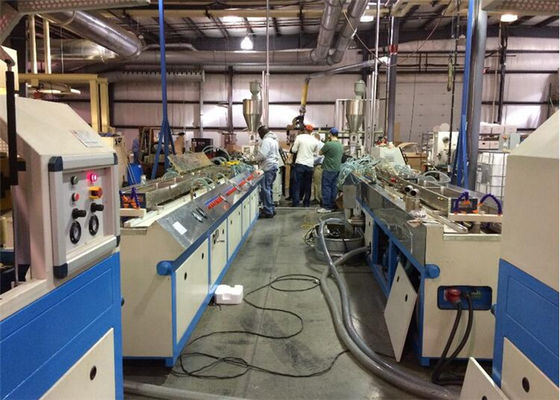

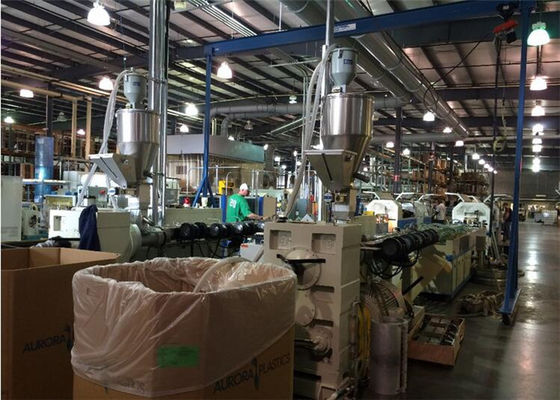

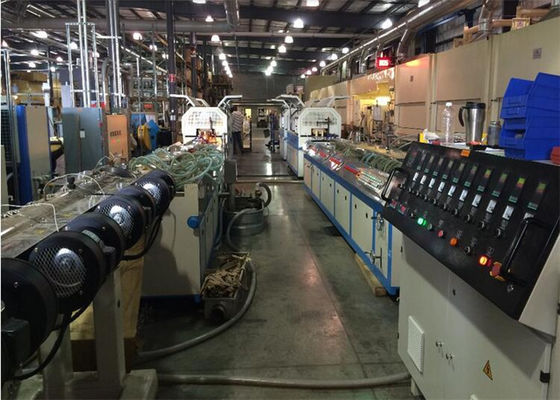

Machine display:

Wood Plastic Composite PVC Door Plate Production Line , Door Panel Extrusion Line 0Wood Plastic Composite PVC Door Plate Production Line , Door Panel Extrusion Line 1
