Product Details:
|
| Condition: | New | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Certificate: | CE Certificate | Inverter Brand: | ABB |
| Motor Brand: | Siemens | Warranty Time: | 1 Year |
| Machine Name: | Pp Pet Strap Band Machine | Voltage: | 380V 50HZ |
| Plastic Processed: | PP PET | Place Of Original: | China |
| High Light: | Package Strap Band Making Machine 50HZ,Recycled Pet Strap Making Machine 100kg/H,Fully Automatic Plastic Strapping Machine |
||
Package Strap Band Making Machine , PP PET Strap Band Production Line , PET Strap Tape Production Line
PET strapping band extrusion line machine PET strap line
PP PET Strap Band Production Line description:
1.PET strap is recognized a new environment protective strapping material to substitute for Steel Strap &PP Strap in the ruling international market. They are not only the aggregation of the intensity and the tenacity of steel strap, but also overcome the disadvantage of the tradition packing material such as insufficient intensity, brittle and so on. At present, they have been applied in wood, steel and so on.
2.Adopts advanced dehumidify dryer system. It makes sure the material humidity at 80PPM at 50PPM dew point. Meanwhile, it compact material and increase the viscidity.
3.Adopts closed cycle transport system after dryer to avoid contact with outside air and make sure the material drying continuously.
4.Extruder adopts special screw for PET. The screw has unique separate and mix property to make sure uniform plasticizing. The screw is suitable for recycled PET bottle flakes, PET mixture and original PET material. And the extruder adopts ration forced feeding to make sure the stable extruding. It makes sure the product uniform.
5.Produce different model product at one die and mould, adopting hydraulic screen exchanger without material leak.
Static cooling roller replaces the water cooling tank. The roller will cool the strap at the constant temperature. It improves the product's stretch intensity.
Technological parameter:
| Model | SJ-65 | SJ-75 | SJ-90 |
| Extruder | SJ-65/30 | SJ-75/33 | SJ-90/33 |
| Productivity | 60-100kg/h | 80-120kg/h | 180-200kg/h |
| Drive Motor | 22kw | 37kw | 75kw |
| Two-station Winder | 60-120m/min,adjustable | ||
| Strap Size | Width:5mm-20mm | Width:10mm-25mm | Width:20mm-35mm |
| Thickness:0.36mm-1.0mm | Thickness:0.5mm-1.3mm | Thickness:0.5mm-1.8mm | |
| Installed Capacity | about80kw | about 90kw | about110kw |
| Line Dimension | 30m×2m×2.2m (L×W×H) | 30m×3m×4.5m (L×W×H) | 30m×5m×6m (L×W×H) |
PP, PET strapping band plastic extrusion machine production line ( Germany technique, Italy design)
Application:
PP PET packing strap production is a new model of packing material machine, applying to advanced technology overseas. PP PET packing strap is the best replacement for old packing material, and is accepted in word packing industry. Nowdays, the PET packing strap hasebeen widly used in many industry such as paper steel, chemical fiber, cotton, printing wood and so on.

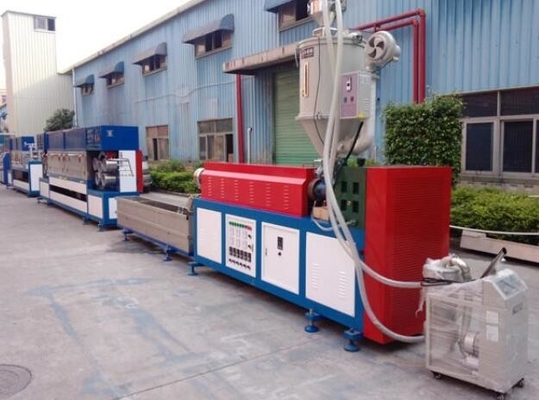

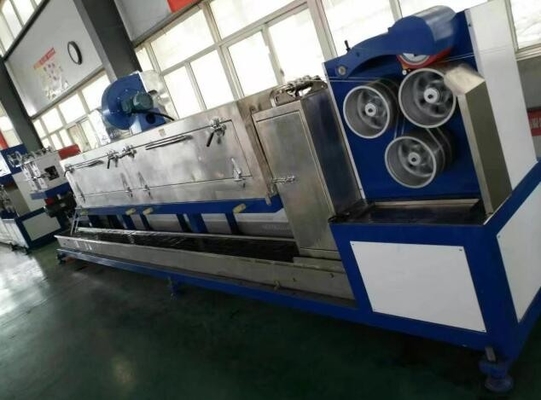

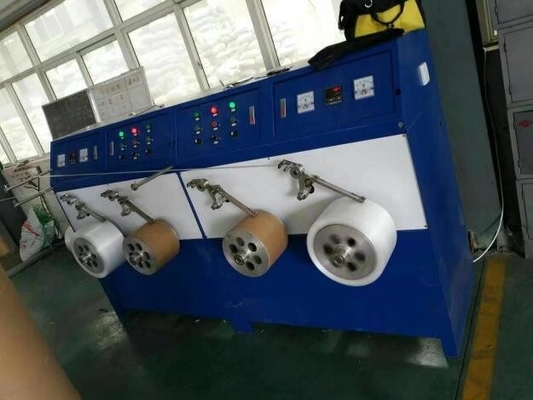

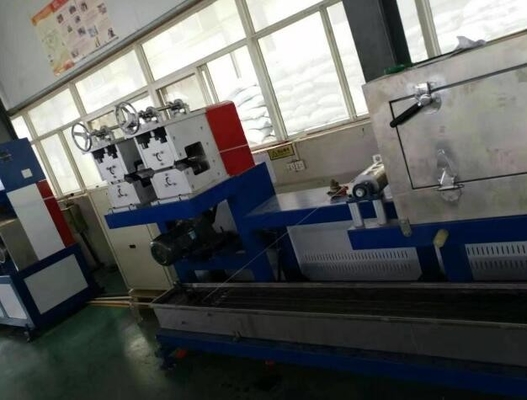

Machine display:
