Product Details:
|
| Condition: | New | Plastic Processed: | PP PET |
|---|---|---|---|
| Application: | PET Strap Band | Screw Design: | Single Screw |
| Voltage: | 380V 50HZ | Place Of Original: | China |
| Warranty: | 1 Year | Certificate: | CE Certificate |
| Motor Brand: | Siemens | Inverter Brand: | ABB |
| High Light: | Automatic PET Strapping Band Machine 50HZ,Strapping Band Single screw extruder,Single Screw Plastic Banding Machine |
||
PET Strap Band Extrusion Line , PET PP Strap Band Equipment, One Out Of Two Strap Band Machine
Brief introduction of PET strap band machine:
1.This pet strap band machine main including Automatic feeder, Single screw extruder, Non-stop screen changer, Mould, Cooling water tank, The first tractor, Strentching oven, The second stretch machine, Embossing Machine, Cooling water tank, The third tractor, Double station winder, Electrical control system.
2.Packing belt equipment adopts 38CrMoALA extruderespecially suitable for high-grade packing belt production, extruder hopper type dehumidifying drying system and automatic feeding system, make the performance of the extruder is more stable, the unit all adopts frequency conversion motor drive and automatic intelligent temperature control system, realize the energy saving effect greatly.
PP PET Strap Band Production Line description:
1.Screw with compression ratio especially for PP/PET, gradually changing diameter and deeper thread groove at the melting part;
2.Gearbox with hardened gears; Die can be precisely adjusted to ensure stable production and smooth surface of straps;
3.Stainless steel cooling trough with four thermo treatment processes displaces the traditional one;
4.Haul off rollers with bigger size ensure the quality of products;
5.New rolling technology overcomes the shortcomings of traditional rolling machine like high gradient and bending delection;
6.Laser embossing roller makes clear and even patterns.
Technological parameter:
| Model | SJ-65 | SJ-75 | SJ-90 |
| Extruder | SJ-65/30 | SJ-75/33 | SJ-90/33 |
| Productivity | 60-100kg/h | 80-120kg/h | 180-200kg/h |
| Drive Motor | 22kw | 37kw | 75kw |
| Two-station Winder | 60-120m/min,adjustable | ||
| Strap Size | Width:5mm-20mm | Width:10mm-25mm | Width:20mm-35mm |
| Thickness:0.36mm-1.0mm | Thickness:0.5mm-1.3mm | Thickness:0.5mm-1.8mm | |
| Installed Capacity | about80kw | about 90kw | about110kw |
| Line Dimension | 30m×2m×2.2m (L×W×H) | 30m×3m×4.5m (L×W×H) | 30m×5m×6m (L×W×H) |
PP, PET strapping band plastic extrusion machine production line ( Germany technique, Italy design)
Application:
PET packing strip is widely used in packing applications, it can replaced the steel strap for packing application, as its good tensile strength, flexible, low prolongation rate, good performance of high temperature resistant, non-rustiness, and low use-cost, etc, it is used in steel, construction material, chemical fiber, paper making, tobacco, agriculture, election, etc.

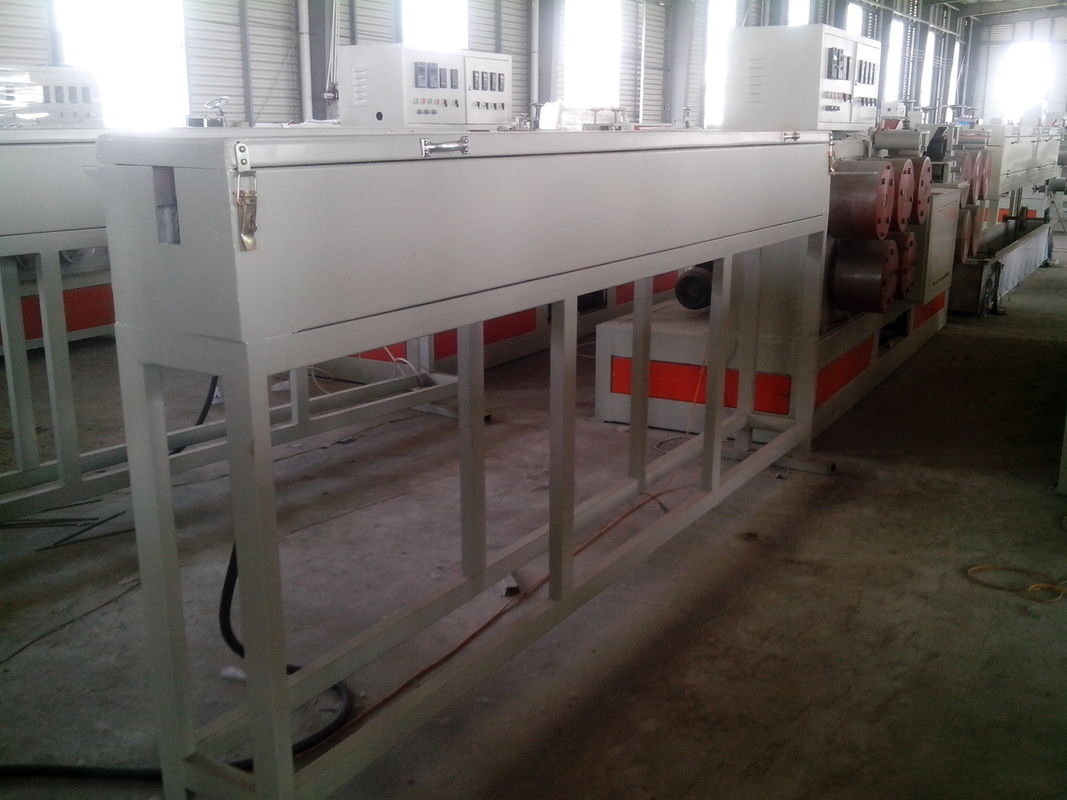

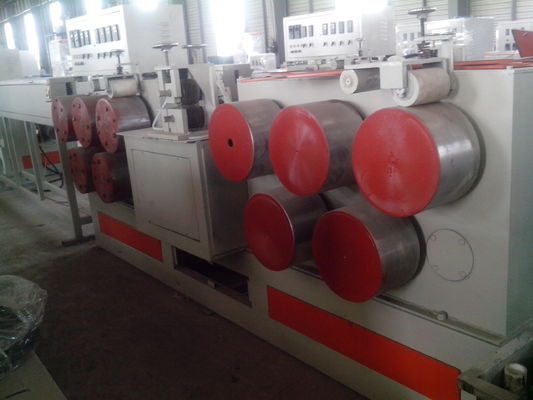

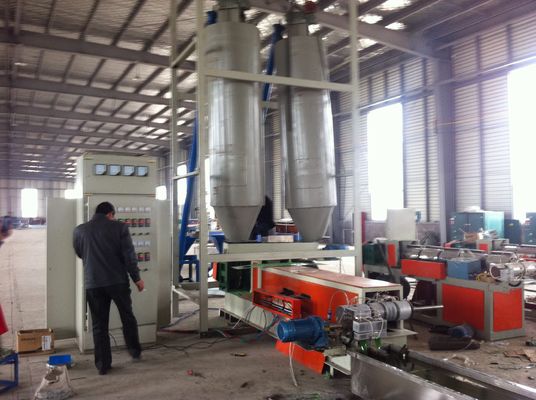

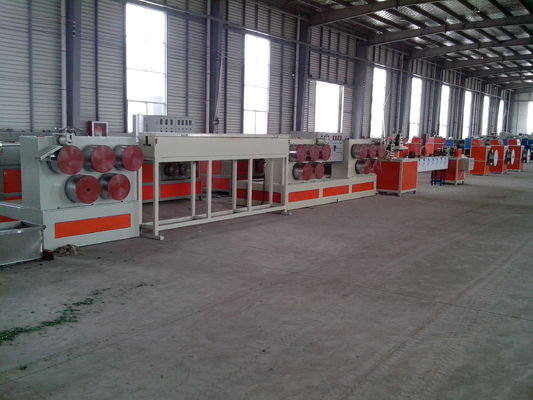

Machine display:
