Product Details:
|
| Model Number: | SJ65/33 | Condition: | New |
|---|---|---|---|
| Pipe Diamerter: | 20mm-63mm | Motor Brand: | Siemens |
| Port Of Lading: | QINGDAO Port | Place Of Original: | China |
| Automatic Grade: | Fully Automatic | After-sales Service: | Engineer Availiable To Service |
| Screw Material: | 38Cr Moaia | Warranty Time: | 1 Year |
| High Light: | Automatic Plastic Pipe Extrusion Line,PPR Plastic Pipe Extrusion Line,63mm Plastic Pipe Making Machine |
||
20mm-63mm PE PPR PP Plastic Pipe Making Machine , Plastic Pipe Extrusion Line
Quick details:
1.PE pipe production line is primarily used in the manufacturing of PE pipes with diameters ranging from 16mm to 1200mm.
2.The various thickness of the pipes produced can make them suitable for applications range from urban water supply to gas transportation.
3.This line also excels in the production of anti-flammable and anti-static electricity pipes using a two- or three-layer spiral mold for use in mining industries.
4.Pipes produced feature even wall-thickness and perfect roundness. Through switching or adding certain part of machine unit, this line can also be customized to extrude pipes of various other kinds.
Description pe pipe extrusion line:
1.Φ20-63mm PE pipe extrusion line is mainly used for producing agricultural irrigation pipes,gas pipes,water supplying pipes , etc.
2.The unit consists of single screw extruder , die head, vacuum cooling tank,haul-off machine, planetary(swarf less/ chip free cutter / no dust cutter) cutting machine, winder stacker and so on.
3.Turn key solution can be provided, Like laser printer crusher, shredder, water chiller, air compressor etc. to achieve high-grade and automatic tube production.
4.In order to realize the whole production line automation and real-time dta recording and closed-loop control, the production line has some high yield, wide adaption of raw materials, sustained and stable production of high quality products.
Technical Specifications:
|
Model
|
PE63
|
PE110
|
PE160
|
PE250
|
PE450
|
PE630
|
|
Diameter Range
|
16-63mm
|
20-110mm
|
50-160mm
|
90-250mm
|
160-450mm
|
315-630mm
|
|
Extruder Model
|
SJ65/33
|
SJ65/33
|
SJ75/33
|
SJ75/33
|
SJ90/33
|
SJ120/33
|
|
Extruder Capacity
|
70-120kg/h
|
150-200kg/h
|
200-250kg/h
|
250-300kg/h
|
450-500
|
550-600kg/h
|
|
Motor Power
|
37
|
55kw
|
75kw
|
90kw
|
160KW
|
220kw
|
Application of PE Pipe Extrusion Machine:
50-160mm PE PP PPR Pipe Production Line is mainly used in the production of water supply and drainage pipes , which used for agriculture and construction , cable coating and other fields , the complete line is consisted of extruder , vacuum calibrator , hauling machine ,cutter and tipping rack , hauling machine unit has come ways of hauling , such as caterpillar type, three-claw type , four-claw type , six-claw type and so on
Main Features PE/HDPE Pipe Production Line
1) High output, capacity can be improved 30-50% at same main power motor condition.
2) High production line speed, Φ20mm pipe can reach 35m/min
3) Haul-off and cutter can use servo control
4) Optional equipment automatic weighing measurement and thickness control system.

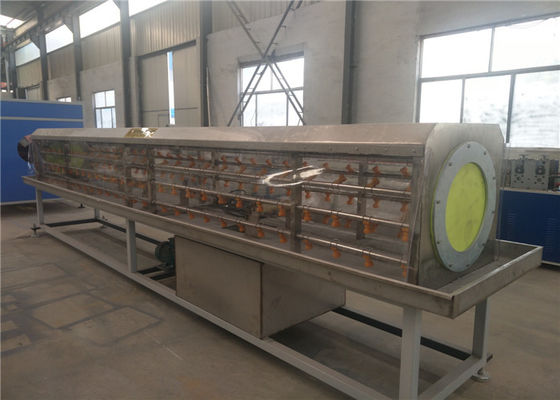

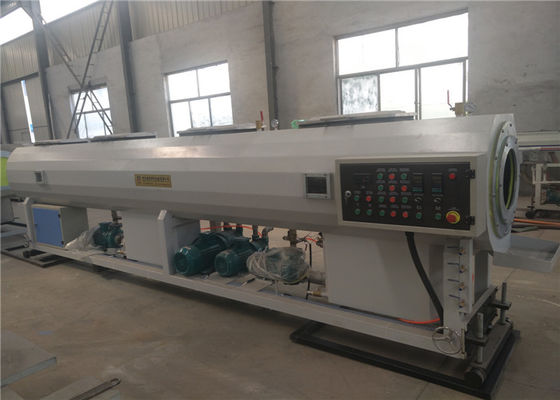

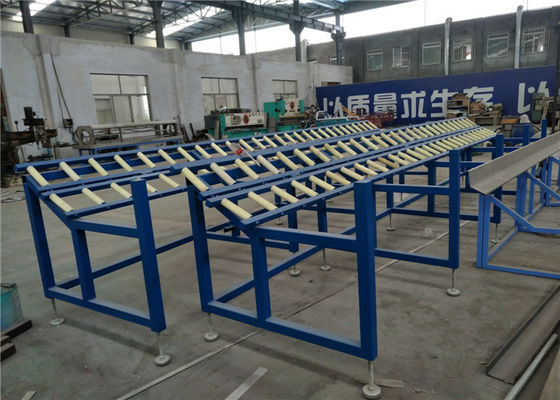

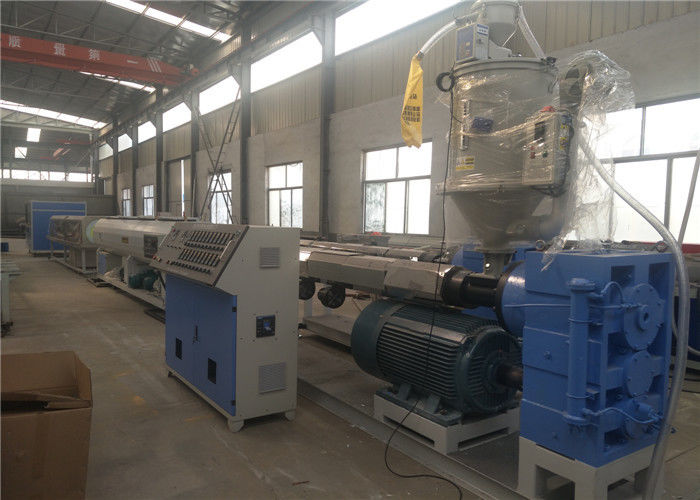

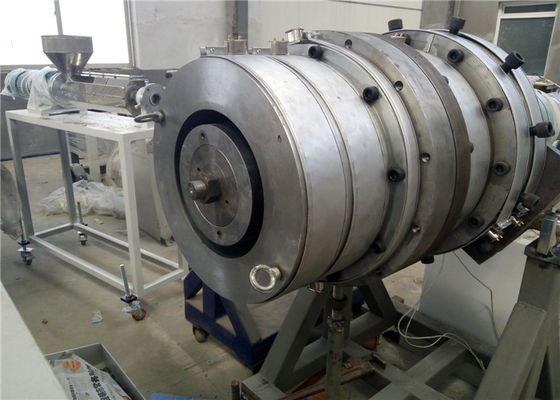

Machine display:
