Product Details:
|
| Brand Name: | AORUI | Automatic Grade: | Fully Automatic |
|---|---|---|---|
| Condition: | New | Voltage: | 380V 50HZ |
| After-sales Service: | Engineer Availiable To Service | Port Of Lading: | QINGDAO Port |
| Place Of Original: | China | Motor Brand: | Siemens |
| Warranty Time: | 1 Year | Screw Material: | 38Cr Moaia |
| High Light: | Water Supply Pipe Extrusion Line 16mm,Automatic Plastic Pipe Extrusion Line,PE Gas Water Pipe Manufacturing Machines |
||
PE Gas Water Pipe, Water Supply Pipe Extrusion Line , 16mm to 630mm PE Pipe Manufacturing Machines
Quick details:

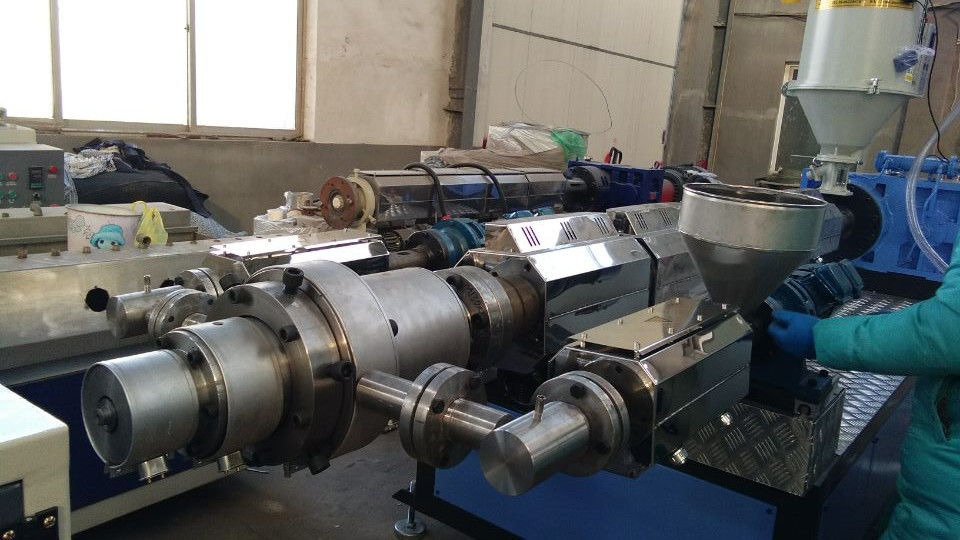

1.This pe pipe machine consists of single screw extruder, mold, water tank, vacuum calibration tank, haul off unit, cutting unit, stacker etc.
2.The main electric elements are:
Siemens motor
Siemens PLC touch screen control
Omron temperature control
ABB/DELTA frequency inverter
domestic famous brand screw and gearbox
Description pe pipe extrusion line:

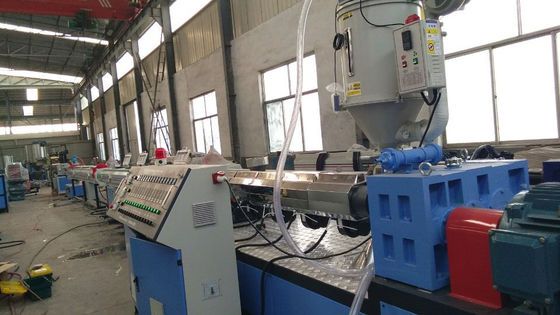

1.Single screw extruder
PLC touch screen control system with L conditioner
Output: 100-800kg/h

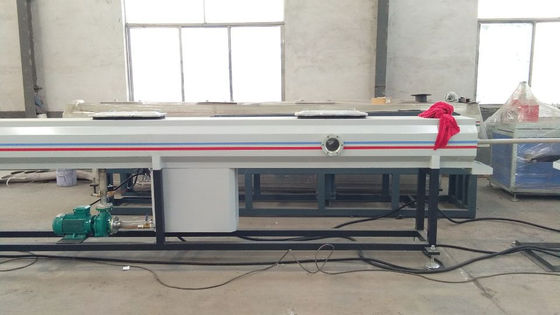

2.Vacuum tank
Usage:Cooling and calibrating PE pipe
Length:6m or customization
High quality spray mouth
3.Spray cooling machine
Spray mouth quantity can be customized according to pipe diameters;good cooling effect
4.Haul-off machine
Provide a certain hauling speed and strength to calibrated PE pipes, and convey pipes to the cutting step.
Customized rubber belt or blocks

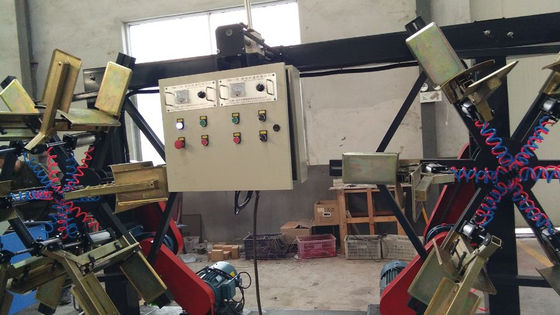

5.Cutter
Usage:Cutting PE pipes with different diameters
Pipe lenth:Customization
Technical Specifications:
|
PE/PP/PPR PIPE
|
|||||
|
Model
|
Pipe spec
(mm) |
Extruder
|
Max output
(Kg/h) |
Max Haul-off speed
(m/min) |
Extruder motor
(KW) |
|
TPM-63
|
Ø20-63
|
TPM60/38
|
460
|
30
|
110
|
|
TPM-110
|
Ø20-110
|
TPM60/38
|
460
|
30
|
110
|
|
TPM-160
|
Ø40-160
|
TPM60/38
|
460
|
12
|
110
|
|
TPM-250
|
Ø50-250
|
TPM75/38
|
600
|
8
|
160
|
|
TPM-450
|
Ø110-450
|
TPM90/38
|
1050
|
5
|
250
|
|
TPM-630
|
Ø160-630
|
TPM90/38
|
1190
|
2
|
280
|
|
TPM-800
|
Ø400-800
|
TPM120/38
|
1300
|
1.5
|
355
|
|
TPM-1200
|
Ø710-1200
|
TPM75/38
|
1650
|
0.8
|
160
|
|
TPM-1600
|
Ø1000-1600
|
TPM90/38
|
2100
|
0.5
|
280
|
Application of PE PipeS:
Water supplying and transportation pipe
Gas distribution and transportation pipe
Main Features PE/HDPE Pipe Production Line
1) High output, capacity can be improved 30-50% at same main power motor condition.
2) High production line speed, Φ20mm pipe can reach 35m/min
3) Haul-off and cutter can use servo control
4) Optional equipment automatic weighing measurement and thickness control system.
Machine display:
